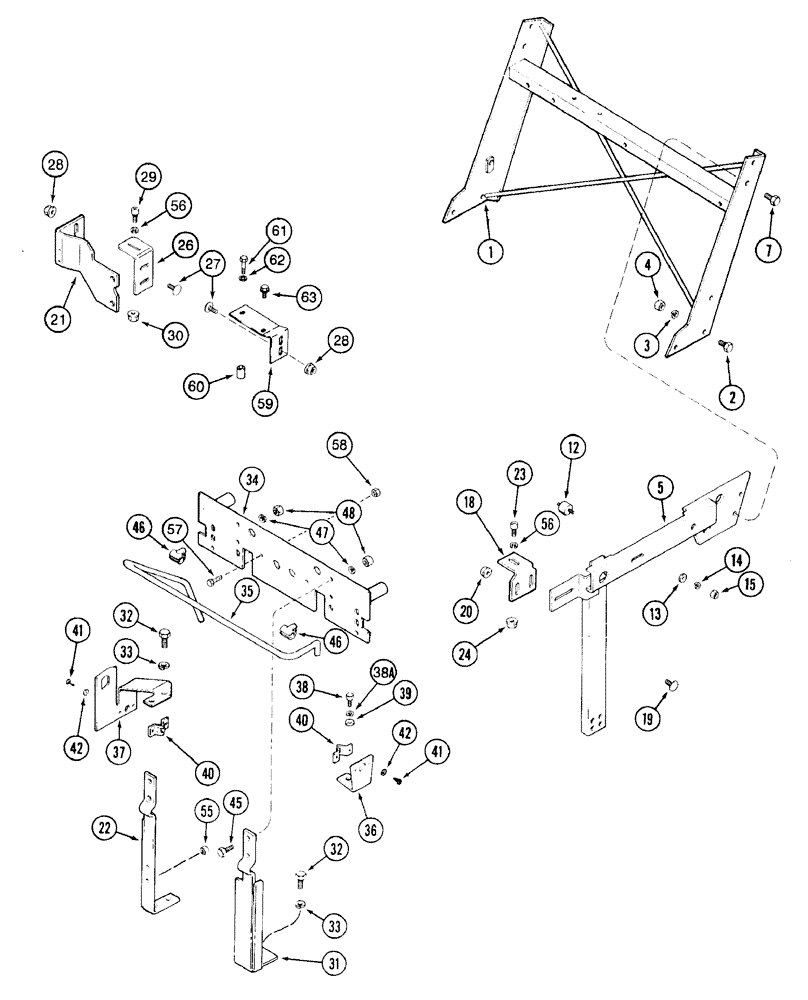

Запчасти Case IH 7210 (9-022) - HOOD SUPPORTS, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS

1

1334382C4

SUPPORT

hood, front

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

1348511C1

SUPPORT ASSY.

CHANNEL - hood, right, shown

1шт.

5

1348512C1

SUPPORT ASSY.

CHANNEL - hood, left

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

12

A145743

MOUNTING PARTS

radiator upper, rubber

2шт.

13

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

2шт.

15

425-104

NUT,1/4"-20, Cl 5

2шт.

18

1334474C1

BRACKET

side panel support

2шт.

19

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

20

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

21

1334565C4

SUPPORT ASSY.

side panel

1шт.

22

1289062C2

SUPPORT ASSY.

hood release, left

1шт.

23

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

2шт.

24

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

26

1334564C2

SUPPORT

BRACKET - side panel, left-hand, rear support

1шт.

27

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

28

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

29

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

2шт.

30

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

31

1289064C1

SUPPORT ASSY.

hood release, right

1шт.

32

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Full threads

4шт.

33

892-11012

LOCK WASHER,M12

4шт.

34

1340550C2

SUPPORT

hood, rear

1шт.

35

1340604C1

HANDLE

hood release

1шт.

36

1960805C4

BRACKET

screen latch, inner, right

1шт.

37

1340590C1

SUPPORT

BRACKET - screen latch, inner, left

1шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

38

892-11008

LOCK WASHER,8mm ID

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

40

1968039C3

FASTENER

RECEIVER - screen, latch stud

2шт.

41

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

4шт.

42

495-21019

WASHER,#8

4шт.

45

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

46

A169954

BUSHING

hood release

2шт.

47

892-11010

LOCK WASHER,M10

2шт.

48

825-1410

NUT,M10, Cl 8

2шт.

55

825-2308

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

56

892-11010

LOCK WASHER,M10

4шт.

57

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

58

425-105

NUT,5/16"-18, G5

2шт.

59

116292A1

SUPPORT

BRACKET - right-hand side panel, rear

1шт.

60

A176570

SPACER

bracket

1шт.

61

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

62

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

63

905-10020

BOLT,Hex Flg, M10 x 20mm

Side panel bracket

1шт.
