Запчасти Case IH 7210 (9-020) - FRONT END WEIGHT AND FRAME (09) - CHASSIS/ATTACHMENTS

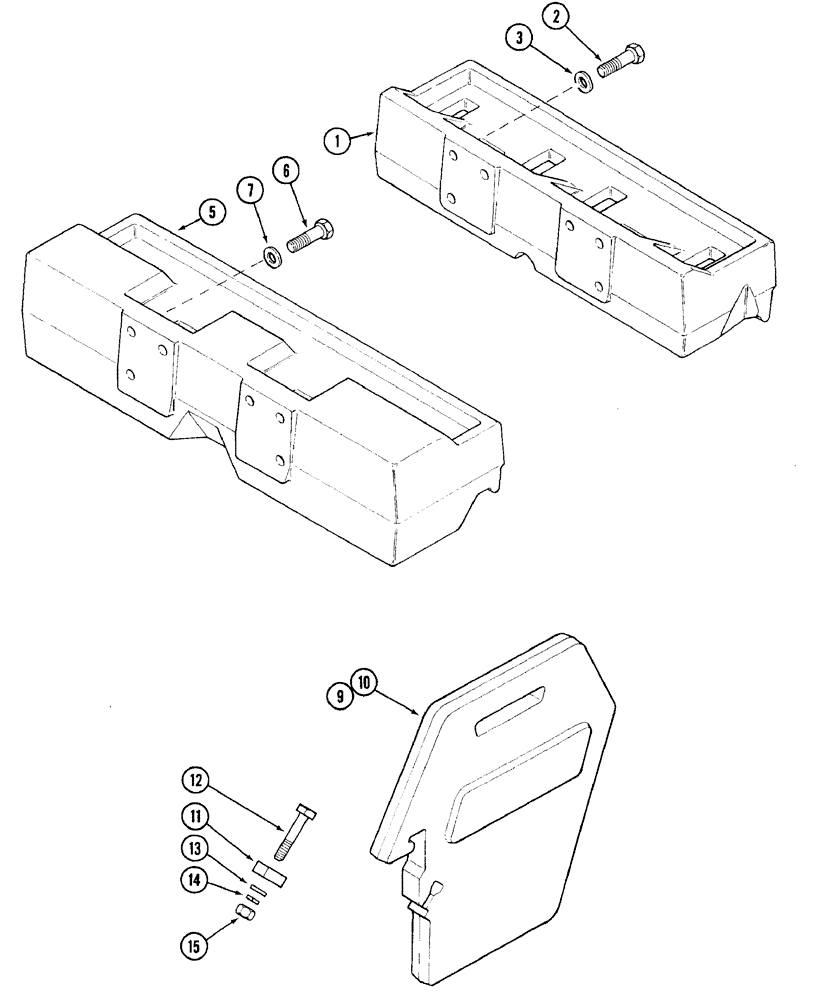

Схема запчастей Case IH 7210 - (9-020) - FRONT END WEIGHT AND FRAME (09) - CHASSIS/ATTACHMENTS
10
5
12
1
13
9
2
6
14
7
15
3
11

Артикул

Название

Примечание

Количество

A67680

ATTACHMENT

FRAME - front, 18 weight, order from Machinery Parts List

1шт.

1

1342125C3

SUPPORT

FRAME - front weight (Maximum of 18 weights) (Used with MFD or standard axle)

1шт.

2

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

6шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

6шт.

A67681

ATTACHMENT

FRAME - front, 22 weight, order from Machinery Price List

1шт.

5

1342127C2

SUPPORT

FRAME - front weight (Maximum of 22 weights) (Not used with MFD)

1шт.

6

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

6шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

6шт.

1348233C1

WEIGHT

ATTACHMENT - front, 6 weight, order from Machinery Price List

1шт.

9

1347524C1

WEIGHT

front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound)

6шт.

A67894

ATTACHMENT

WEIGHT- front, 22 weight, order from Machinery Price List

1шт.

10

1347524C1

WEIGHT

front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound)

22шт.

A67919

ATTACHMENT

KIT - hardware, front weight, order from Machinery Price List (1 kit required per 6 weights)

1шт.

11

1978431C1

CLAMP

weight

3шт.

12

A169139

SQUARE BOLT

square head, special, 1/2 NC x 3-1/4 inch

3шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

15

425-108

NUT,1/2" - 13, Gr 5

3шт.

Выбрано товаров: 18
