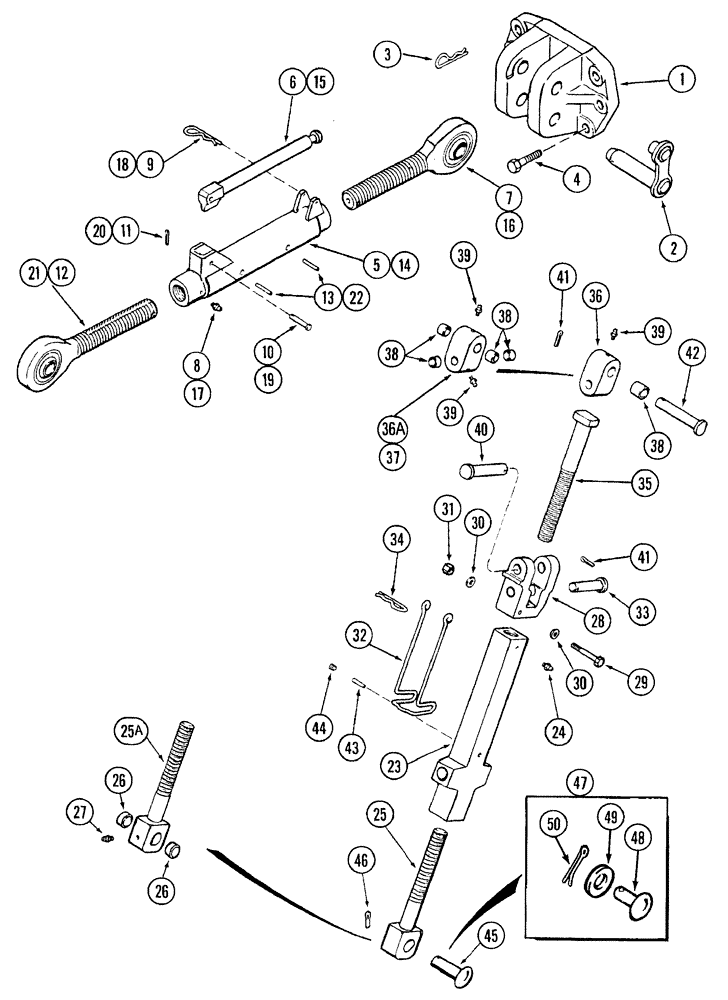

Запчасти Case IH 7210 (9-004) - HITCH UPPER LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

1266971C4

HITCH BRACKET

link mounting (7220) shown

1шт.

1

142614C3

BRACKET

link mounting (7210)

1шт.

2

1286840C7

HITCH PIN

upper link bracket, replaces 1286840C5 pin

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

(With hitch)

6шт.

4

613-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

BOLT - 20 x 50 mm (Without hitch)

6шт.

4a

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened (Without hitch), not shown

6шт.

1331854C1

DRAG LINK

ASSEMBLY - upper (with 1-1/2 inch thread)

1шт.

5

1954221C2

LINK

TURNBUCKLE - upper link, replaces 1954221C1 turnbuckle

1шт.

6

1331863C2

HANDLE

turnbuckle

1шт.

7

1981986C1

END,1-1/2" - 6

ROD - upper link, right-hand thread, without keyway

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

9

1978738C1

HAIR PIN COTTER

3/16"

1шт.

10

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

1шт.

12

1282063C2

BALL JOINT,1-1/2" - 6, LH Threads

ROD - upper link, left-hand thread

1шт.

13

838-3638

PIN,M6 x 38, Coiled

roll, 6 x 38 mm, replaces 31042R1 pin

2шт.

1331855C1

DRAG LINK

ASSEMBLY - upper (with 1-3/4 inch thread)

1шт.

14

1954223C2

ARM

TURNBUCKLE - 1-3/4" thread, upper link, replaces 1954223C1 turnbuckle

1шт.

15

1331863C2

HANDLE

turnbuckle

1шт.

16

1981988C1

END ASSY.,1-3/4" - 5

SCREW ASSEMBLY - 1-3/4" thread, includes ball, right-hand thread, without keyway

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

18

1978738C1

HAIR PIN COTTER

3/16"

1шт.

19

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

1шт.

21

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

SCREW ASSEMBLY - includes ball, left-hand thread

1шт.

22

838-5645

LOCK PIN,M6 x 45, Slotted

roll, 6 x 45 mm

2шт.

1272944C2

LINK ASSY.

lift (with 1-1/4 inch thread), no longer available, order components below

2шт.

23

149836C4

TURNBUCKLE

lift link

1шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self-tap

3шт.

25

149837C1

ROD

leveling, without grease fitting port and without bushings, if used

1шт.

25a

1272852C1

TRACK ROD END ASSY

lower leveling, with grease fitting port and bushings, if used

1шт.

26

1272674C1

BUSHING,26mm ID x 32.37mm OD x 21.2mm L

pivot

2шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

28

1266968C1

YOKE

UNIVERSAL JOINT YOKE lift link

1шт.

29

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

31

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

1шт.

32

123464C3

CLAMP

turnbuckle lock, replaces 123464C2 clamp

1шт.

33

39-51260

HEADED PIN,19.05mm OD x 95.25mm L

Replaces 27357R1 pin

1шт.

34

480523R1

HAIR PIN COTTER

1шт.

35

149838C1

ROD

leveling

1шт.

1272944C2

LINK ASSY.

lift, order components below

2шт.

36

1286725C2

BRACKET, PIVOT

PIVOT BRACKET SWIVEL ASSEMBLY - lift link, includes two bushings, item 38 and one grease fitting, item 39, if used

1шт.

36a

1272669C2

PIVOT

SWIVEL ASSEMBLY - lift link, includes two bushings, item 38 and one grease fitting, item 39, if used

1шт.

37

1272670C2

PIVOT

SWIVEL ASSEMBLY - lift link

1шт.

38

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

lift link swivel

1шт.

39

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

40

1266969C1

AXLE PIN,19mm OD x 121.5mm L

head

1шт.

41

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

42

39-51276

HEADED PIN,19.05mm OD x 120.65mm L

clevis

2шт.

43

838-5636

LOCK PIN,M6 x 36, Slotted

If used, replaces 38-11620 pin

1шт.

44

221-841

PLUG

hex socket, 1/4 inch PT, if used

1шт.

45

109088C4

CARRIAGE BOLT

leveling

2шт.

46

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

47

242748A1

HARDWARE

KIT - telescoping draft arm bolt, includes instructions

1шт.

48

NSS

NOT SOLD SEPARAT

BOLT - square neck carriage

1шт.

49

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

3шт.

50

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.
