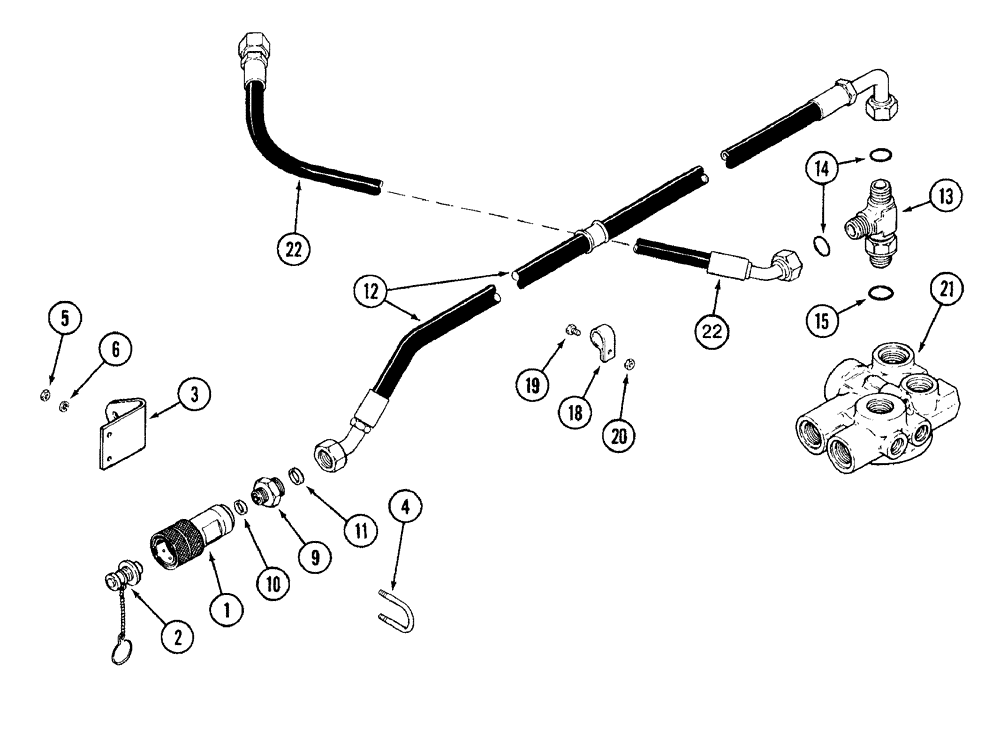

Запчасти Case IH 7210 (8-084) - HYDRAULIC MOTOR OIL RETURN ATTACHMENT (08) - HYDRAULICS

1348340C1

ATTACHMENT

HYDRAULIC - oil return, order from the Machinery Price List

1шт.

1

1272400C1

COUPLING

self sealing, female

1шт.

2

1954133C1

PLUG

coupling, dust

1шт.

3

1348201C1

SUPPORT

BRACKET - return line

1шт.

4

A66788

CLAMP

U-BOLT - 1-13/32 x 2 x 1/4 inch NC

1шт.

5

425-104

NUT,1/4"-20, Cl 5

4шт.

6

492-11025

LOCK WASHER,1/4"

2шт.

9

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter, straight

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

1348302C1

HOSE,19.05mm ID x 2075mm L, SAE 30R2

2075 mm (81-11/16 inch) long, oil return

1шт.

13

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1-3/16-12 face seal branch x face seal x 1-1/16-12 inch adj O-ring boss

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

P-type, Replaces 28122R1 clamp

1шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

20

825-1408

NUT,M8, Cl 8

1шт.

21

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic see fig. 8-2 or 8-4

1шт.

22

1342123C2

HOSE,15.88mm ID x 967mm L, SAE 100R3

return, 967 mm (38-1/8 inch) long, steering

1шт.
