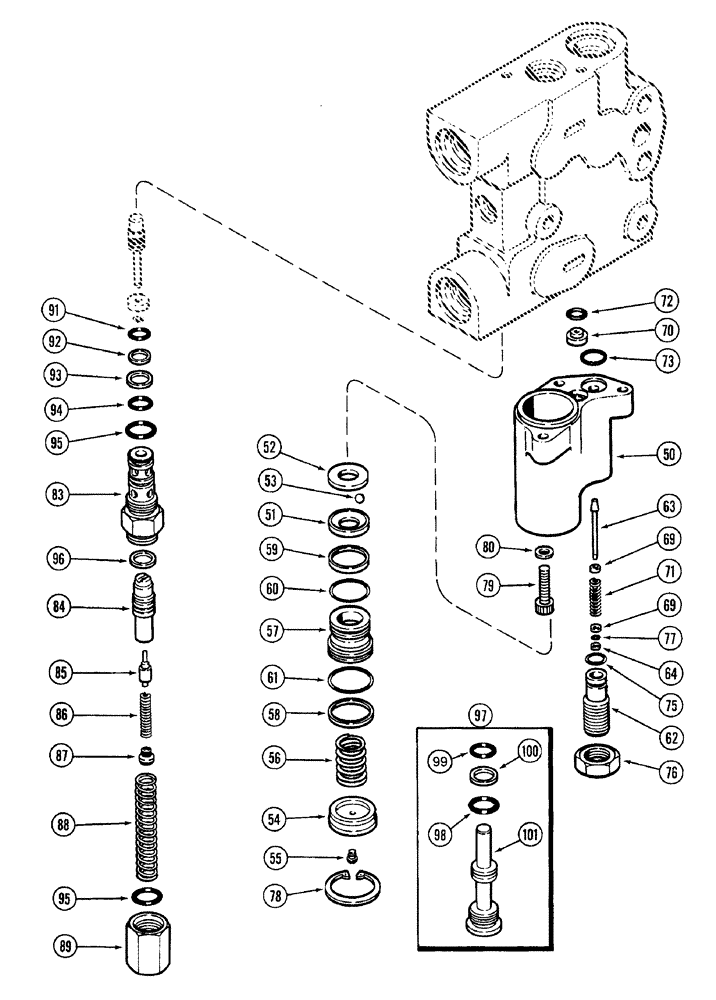

Запчасти Case IH 7210 (8-066) - HYDRAULIC REMOTE VALVE ASSEMBLY, SECOND, THIRD AND FOURTH REMOTE WITH LOAD CHECK (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1980450C7
DISTRIBUTOR
VALVE ASSEMBLY - remote hydraulic, continued, if used, see note
1шт.
Before order parts, check your valve part number stamped on the valve body. See Figures 8-68 - 8-72 for 186761A3 remote valve.
1шт.
1980160C2
SPOOL
DETENT ASSEMBLY - valve, replaces 1980160C1
1шт.
50
1976957C1
COVER ASSY
detent
1шт.
51
G108911
WASHER
detent, ball outer
1шт.
52
G108912
WASHER
detent, ball inner
1шт.
53
211-1007
BALL,7/32" Dia
Gr 24, Chrome alloy steel
8шт.
54
1341975C1
SPRING CUP
RETAINER - detent
1шт.
55
G107780
VALVE, CHECK
PLUG - retainer
1шт.
56
G110152
SPRING
detent
1шт.
G108921
PISTON
ASSEMBLY - detent
1шт.
57
G108908
PISTON
detent
1шт.
58
G108728
BACK-UP RING
large
1шт.
59
G108922
BACK-UP RING
small
1шт.
60
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
1шт.
61
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
62
G110300
PLUG
adjusting, pilot relief
1шт.
63
G110279
VALVE POPPET
relief
1шт.
64
G110289
BACK-UP RING
1шт.
69
G110281
SPRING CUP
WASHER - retainer
2шт.
70
G108918
ORIFICE
WASHER
1шт.
71
G109275
SPRING
pilot
1шт.
72
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
73
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
75
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
76
425-1510
JAM NUT,Jam, 5/8"-18, G5
Hex
1шт.
77
238-5004
O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro
1шт.
78
100-21118
SNAP RING,1.188", Int, #118
(Replaces A30975)
1шт.
79
61-31016
HEX SOC SCREW,#10 - 24 x 1"
3шт.
80
495-11022
WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk
(Flat, 7/32" x 7/16" x 3/64")
3шт.
1971801C2
CHECK VALVE
ASSEMBLY - load
1шт.
83
NSS
NOT SOLD SEPARAT
BODY - check
1шт.
84
NSS
NOT SOLD SEPARAT
POPPET - main
1шт.
85
NSS
NOT SOLD SEPARAT
POPPET - pilot
1шт.
86
1957817C1
VALVE SPRING
poppet
1шт.
87
1957964C1
RETAINER
spring
1шт.
88
1957965C1
VALVE SPRING
main
1шт.
89
NSS
NOT SOLD SEPARAT
CAP - load check (order 1971801C2)
1шт.
91
G110295
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
poppet
1шт.
92
G110287
BACK-UP RING
inner
1шт.
93
G108727
BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk
outer
1шт.
94
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
95
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
96
G108724
BACK-UP RING
1шт.
97
1971475C1
PLUG
lock check
1шт.
98
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
99
G110295
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
poppet
1шт.
100
G110287
BACK-UP RING
inner
1шт.
101
NSS
NOT SOLD SEPARAT
PLUG - lock check
1шт.
Выбрано товаров: 49
