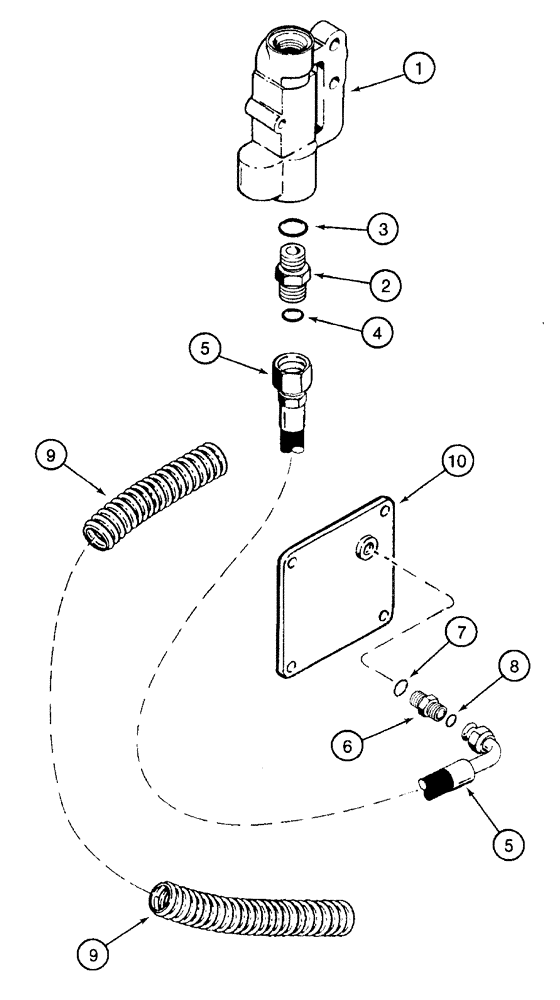

Запчасти Case IH 7210 (8-048) - REMOTE HYDRAULIC BLEED LINE (08) - HYDRAULICS

1

1978363C2

COVER

end, remote hydraulic valve

1шт.

2

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss end

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End

1шт.

5

1976746C1

HOSE,9.53mm ID x 533.4mm L, SAE 100R3

533 mm (21 inch) long, bleed, return

1шт.

6

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

9

1976749C1

TUBE,27 mm ID, 34 mm OD

SLEEVE - corrugated, 520 mm (20-15/32 inch) long, cut from 1978484C2 bulk sleeve

1шт.

10

1976744C2

COVER ASSY

opening, transmission, see fig. 6-18, item 20

1шт.

1978484C2

PIPE

SLEEVE - corrugated, bulk, 27 (1-1/16) x 34 (1-11/32) x 1065 mm (41-15/16 inch) long

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.
