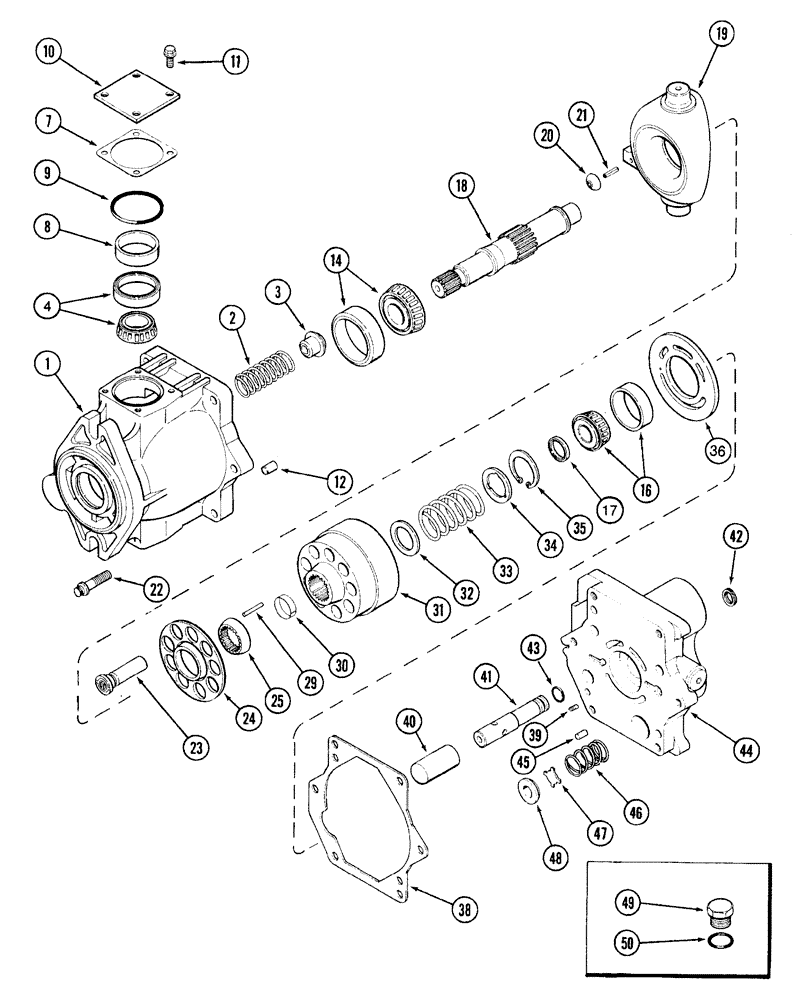

Запчасти Case IH 7210 (8-020) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS

1346423C1

REMAN-HYD PUMP

ASSEMBLY - hydraulic piston, North America only, comp. parts shown on this fig. do not apply to the remanufactured assy.

1шт.

1346424C1

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump for credit when using a remanufactured assembly

1шт.

149619C3

PUMP,45.06 CC

ASSEMBLY - hydraulic piston, new

1шт.

1

A47278

HOUSING

piston pump

1шт.

2

A47281

SPRING

yoke, replaces 1263237C1 spring

1шт.

3

A47282

PLUG

SEAT - spring

1шт.

1263241C1

WHEEL BEARING KIT

yoke bearing

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - yoke

2шт.

145590C1

SHIM KIT

KIT - bearing

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.003 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.005 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.010 inch

1шт.

8

A47286

SPACER

SPACER - bearing

2шт.

9

238-6137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

Cover, included in 1263244C2 seal kit on fig. 8-24

2шт.

10

A47288

COVER

housing

2шт.

11

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

12

A47301

PIN

locating

2шт.

1263242C1

KIT

KIT - shaft bearing

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING - shaft, front

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - shaft, rear

1шт.

145582C1

KIT

spacer, bearing

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.139 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.142 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.145 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.148 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.151 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.154 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.157 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.160 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.163 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.166 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.169 inch

1шт.

18

1263234C1

SHAFT

drive pump

1шт.

19

A47284

YOKE

pump shaft

1шт.

20

A47283

SEAT

piston, pump

1шт.

21

38-11208

LOCK PIN,3/16" x 1/2", Slotted

1шт.

22

380-2624

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

BOLT - 12 point flange, chemical locking, 3/8 NC x 1-1/2 inch, replaces 27077R1 bolt

6шт.

1263239C1

REPAIR KIT

rotating group, piston

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - rotating

9шт.

24

A47292

PLATE

shoe

1шт.

25

A47293

WASHER

spherical

1шт.

29

A47296

PIN

block

3шт.

30

A47297

SNAP RING,7.11mm Thk, Int

pin

1шт.

31

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

32

A47299

WASHER

spring

1шт.

33

A47298

SPRING

block

1шт.

34

A47300

SPRING WASHER

1шт.

35

100-21162

SNAP RING,1.625", Int, #162

1шт.

36

1263236C1

PLATE

wafer

1шт.

38

A47280

GASKET,0.53mm Thk

housing, included in 1263244C2 seal kit on fig. 8-24

1шт.

39

A47309

PIN

headless, 1/4 x 1/2 inch

1шт.

1263240C1

PACKAGE

KIT - piston and rod, compensator

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON - compensator

1шт.

41

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

42

A47340

RING

retaining

1шт.

43

238-8112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 8, 90 Duro

Rod, piston, included in 1263244C2 seal kit on Figure 8-24

1шт.

44

1971490C1

COVER

BLOCK - valve

1шт.

45

A47309

PIN

headless, 1/4 x 1/2 inch

1шт.

46

A47308

SPRING

SPRING - block, valve

1шт.

47

A47307

VALVE

check

1шт.

48

A47306

PLUG

SEAT - valve, block

1шт.

49

86512512

PLUG,7/8" - 14 ORB

2шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
