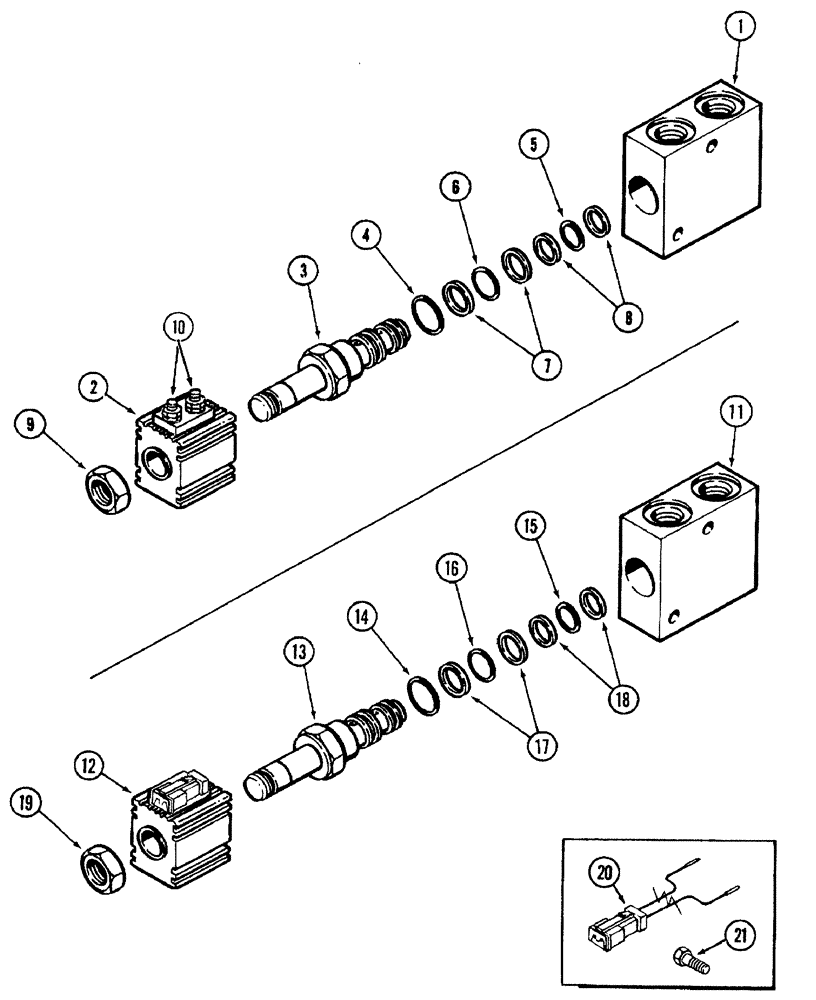

Запчасти Case IH 7210 (8-016) - SOLENOID VALVE ASSEMBLY (08) - HYDRAULICS

1272538C1

VALVE

ASSEMBLY - solenoid, no longer available, on transmissions prior to ser. no. AJB0099462 furnish 320691A1 valve below and 371030A1 adapter kit below

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

1272698C1

PACKAGE

KIT - seal, solenoid valve

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

8

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

9

NSS

NOT SOLD SEPARAT

NUT - jam, solenoid

1шт.

10

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, with external tooth lock washer, No. 8 NC

4шт.

320691A1

VALVE

ASSEMBLY - solenoid, transmissions serial number AJB0099462 and after

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

12

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

1272698C1

PACKAGE

KIT - seal, solenoid valve

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

19

NSS

NOT SOLD SEPARAT

NUT - jam, solenoid

1шт.

371030A1

SET OF PARTS

KIT - adaptor, solenoid valve, used to adapt 320691A1 solenoid valve on machines with transmissions prior to serial number AJB0099462

1шт.

20

NSS

NOT SOLD SEPARAT

HARNESS - adapter

1шт.

21

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

2шт.
