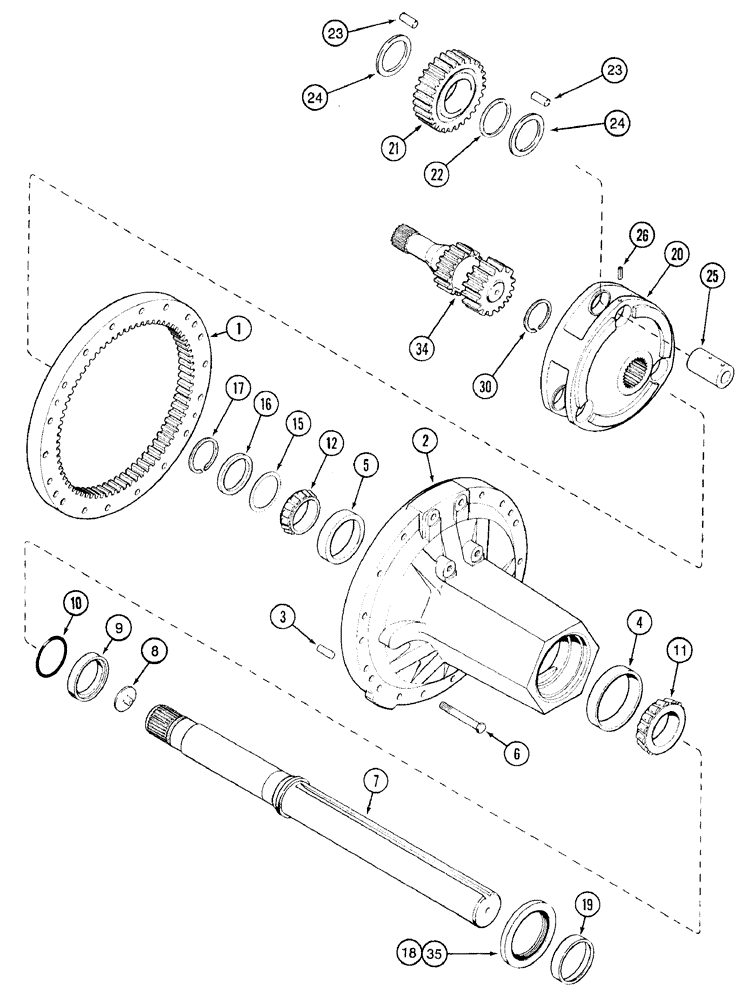

Запчасти Case IH 7210 (6-068) - REAR AXLE AND CARRIERS, 96 AND 112 INCH AXLE, 7210 TRACTOR (06) - POWER TRAIN

1

120942C2

GEAR

ring, axle

2шт.

2

1968487C1

CARRIER

ASSEMBLY - axle

2шт.

3

837-16040

DOWEL,M16 x 40

Hardened

2шт.

4

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

tapered roller, inner, replaces 622337C1 cup

1шт.

5

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller

1шт.

6

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

BOLT - hex, 16 - 2.0 x 120 mm

32шт.

7

1968336C4

SHAFT ASSY.

AXLE - rear, 3-1/2 inch diameter x 112 inch

2шт.

7

1968337C4

SHAFT ASSY.

AXLE - rear, 3-1/2 inch diameter x 96 inch

2шт.

8

1981270C1

INSERT

rear axle

1шт.

9

1968333C1

BUSHING,90mm ID x 109.85mm OD x 19.5mm L

spacer, bearing

1шт.

10

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

11

38703D

BEARING, ROLLER, CYL,88.91mm ID x 36.22mm W

tapered roller, outer

2шт.

12

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, inner

2шт.

1264592C1

SHIM KIT

KIT - bearing, kit no longer available, order components

1шт.

15

143933C1

SHIM

bearing, 0.76 mm

1шт.

15

143934C2

SHIM

bearing, 0.30 mm

1шт.

15

143935C1

SHIM

bearing, 0.18 mm

1шт.

15

143936C1

SHIM

bearing, 0.10 to 0.13 mm

1шт.

15

143937C1

SHIM

bearing, 0.06 to 0.09 mm

1шт.

16

137777C1

RING

thrust, axle

2шт.

17

1277025C1

RING

retaining, axle

2шт.

94546C1

SEAL KIT

seal and sleeve, axle

2шт.

18

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

oil, oversize

1шт.

19

92688C1

BUSHING,109.87mm ID x 120mm OD x 25.5mm L

wear

1шт.

20

1349351C1

PINION CARRIER

CARRIER - gear, planet

2шт.

21

1349354C2

PINION

GEAR - planet, 27 teeth, , replaces 1349354C1 gear

6шт.

22

1349348C1

THRUST RING

6шт.

23

1349353C1

NEEDLE BEARING

BEARING

348шт.

24

1997886C1

THRUST WASHER

12шт.

25

1349352C1

SHAFT

bearing, planet gear

6шт.

26

838-3826

PIN,M8 x 26, Coiled

Replaces 30355R1 pin

6шт.

30

101-11315

SNAP RING,#315, 2.980, Ext

external retaining, No. 315

2шт.

34

1981238C1

SHAFT

sun gear, final drive

2шт.

35

85244C1

OIL SEAL

oil, regular, see 94546C1 kit above

2шт.
