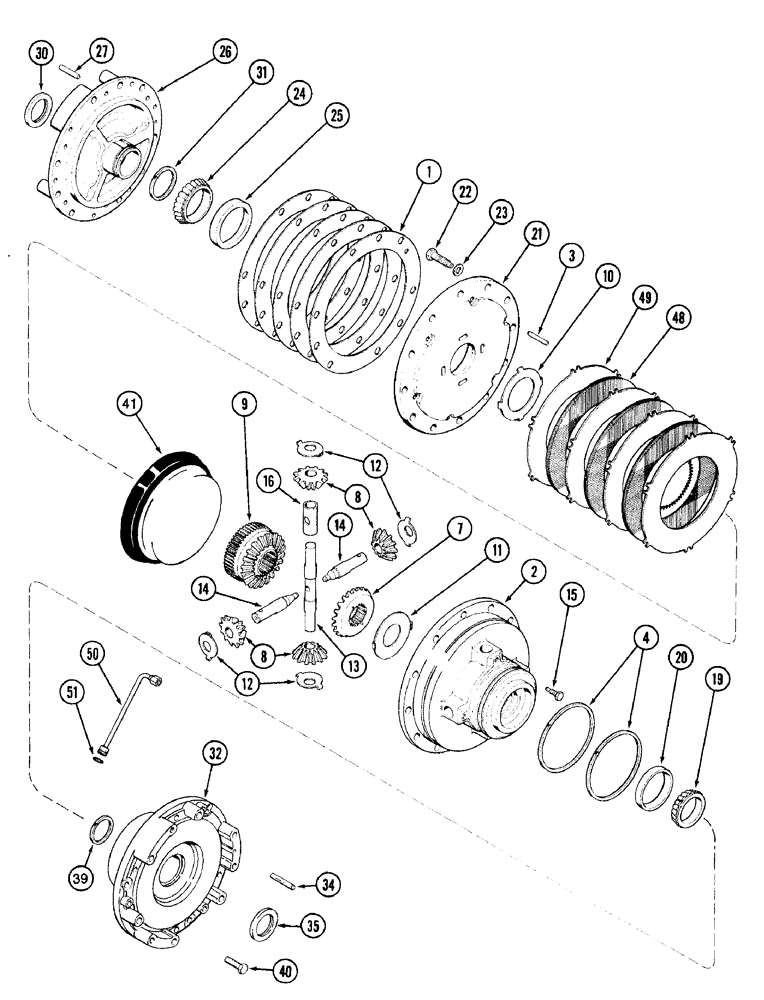

Запчасти Case IH 7210 (6-048) - TRANSMISSION, DIFFERENTIAL, 7210 TRACTOR (06) - POWER TRAIN

1264586C1

SHIM KIT

shim, retainer, kit no longer available, order components

1шт.

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

retainer, 0.09 mm

1шт.

1

120512C2

SHIM

retainer, 0.1 mm

1шт.

1

120509C2

SHIM

retainer, 0.18 mm

1шт.

1

120510C2

SHIM

retainer, 0.31 mm

1шт.

1

120511C2

SHIM

retainer, 0.74 mm

1шт.

2

1997751C1

CAGE

CASE - differential, right

1шт.

3

137023A1

DOWEL

PIN - 10 x 60 mm, hardened

6шт.

4

148940C1

RING

seal

2шт.

7

1264681C2

GEAR

bevel, differential, 22 teeth

1шт.

8

1264923C2

GEAR

pinion, differential, 12 teeth

4шт.

9

1264682C2

GEAR

lock, bevel, 22 teeth

1шт.

10

94646C2

LOCK WASHER,88mm ID x 144mm OD x 1.62mm Thk

thrust, lock, replaces 94646C1 washer

1шт.

11

94647C2

THRUST WASHER,58mm ID x 124mm OD x 1.62mm Thk

thrust, differential, replaces 94647C1 washer

1шт.

12

94645C2

THRUST WASHER,28mm ID x 75mm OD x 1.5mm Thk

thrust, pinion, replaces 94645C1 washer

4шт.

13

1276902C3

LONG SHAFT

pinion, long, replaces 1276902C1 and 1276902C2 shaft

1шт.

14

1285777C3

SHORT SHAFT

pinion, short, replaces 1285777C1 and 1285777C2 shaft

2шт.

15

1997421C1

BOLT

BOLT - pin, pinion

2шт.

16

1963820C1

SPACER

gear

1шт.

19

529452R1

BEARING ASSY,2.9528" ID x 4.5276" OD x 0.9843"

tapered roller

1шт.

20

529453R1

BEARING, CUP

tapered roller

1шт.

21

94644C1

COVER ASSY

case differential

1шт.

22

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

24

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, 3.348 inch ID

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller, replaces 622337C1 cup

1шт.

26

137756C2

RETAINER

bearing, left

1шт.

27

136433A1

DOWEL,M12 x 65mm, HDN

PIN - 12 x 65 mm, hardened

5шт.

30

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil, retainer

1шт.

31

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal, bearing, replaces 148941C1 ring

1шт.

32

1997450C1

RETAINER

differential, right

1шт.

34

136433A1

DOWEL,M12 x 65mm, HDN

PIN - 12 x 65 mm, hardened

5шт.

35

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

39

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal, retainer, replaces 148941C1 ring

1шт.

40

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

Bolt, , left retainer Hex, M16 x 40, 8.8, Full Thd

3шт.

40

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

Bolt, , right retainer Hex, M16 x 45, 8.8, Full Thd

3шт.

41

1997422C1

PISTON

lock, differential

1шт.

94667C1

PLATE

KIT - plate lock, differential, kit no longer available, order components

1шт.

48

137802C1

PLATE ASSY.

friction

3шт.

49

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

separator

4шт.

50

137803C1

HYD TUBE,9.25 mm Diameter, 222, 54.9 mm Length

pressure, lock

1шт.

51

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
