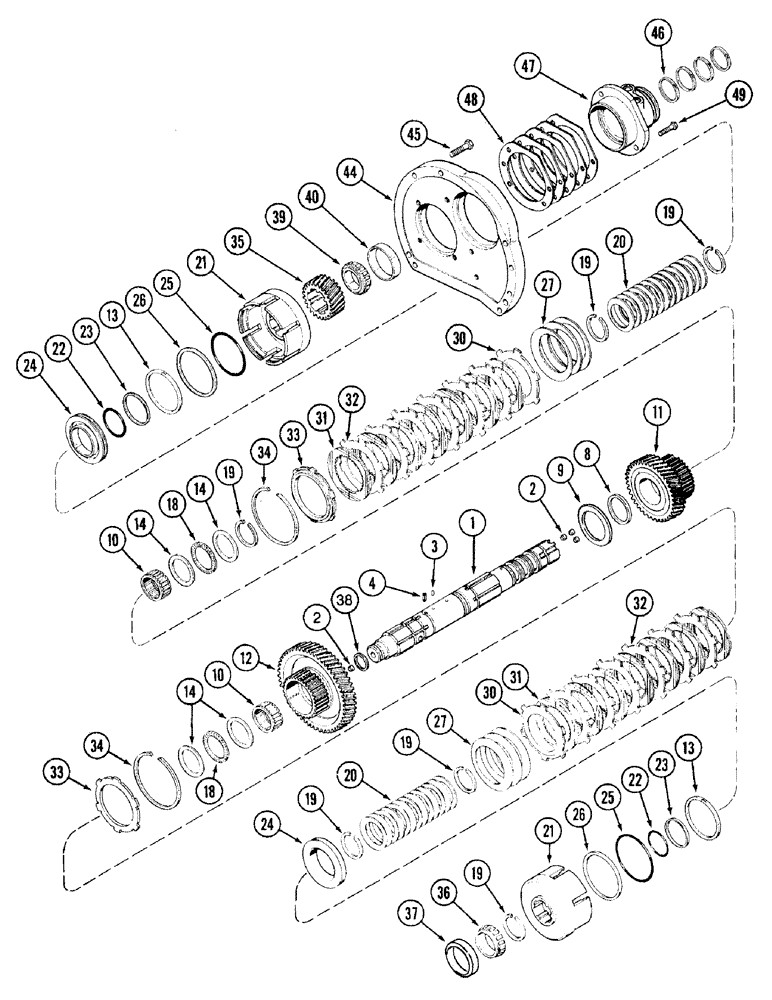

Запчасти Case IH 7210 (6-040) - TRANSMISSION, RANGE INPUT SHAFT (06) - POWER TRAIN

1

1997446C2

SHAFT ASSY.

input

1шт.

2

1342852C1

PLUG

sealing, 12 mm

4шт.

3

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

4

1963874C1

PIN,7.94mm OD x 14mm L, Slotted

coiled, 8 x 14 mm

1шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

support, bearing

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

1шт.

10

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

needle, caged

2шт.

11

1285977C1

GEAR

GEAR - driver, 37 teeth, medium

1шт.

12

1285979C1

PINION

GEAR - drive, 52 teeth, high range

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal, clutch

2шт.

14

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

bearing

4шт.

18

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

2шт.

19

93350C1

RING

retaining, external

6шт.

20

1286012C2

BELLEVILLE WASHER

Belleville spring, return

26шт.

21

1285972C2

CLUTCH HOUSING

CARRIER

2шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch, shift

2шт.

24

1285998C1

PISTON

clutch, shift

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

27

93129C1

BELLEVILLE WASHER

Belleville spring, cushion

6шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction, clutch

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

16шт.

32

92934C2

DISC

separator, clutch

14шт.

33

1342854C2

DISC

backing, clutch, 16.45 mm thick, replaces 1342854C1 disc

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

retaining, plate

2шт.

35

1285971C1

DRIVING GEAR

GEAR - driver, 22 teeth, low range

1шт.

36

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

tapered roller

1шт.

37

A75210

BEARING CUP,3.5433" OD x 0.9055"

tapered roller

1шт.

38

116797C2

RING

seal

1шт.

39

131243R91

BEARING, ROLLER,2.25" ID x 4.4375" OD x 1.1875"

CONE - tapered

1шт.

40

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

tapered roller replaces ST967 cup

1шт.

44

1285995C2

SUPPORT ASSY.

bearing

1шт.

45

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.

46

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

sealing, shaft

4шт.

47

1342729C1

BEARING HOUSING

bearing

1шт.

93285C1

SHIM KIT

KIT - shim, bearing, kit no longer available, order components

1шт.

48

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

Bearing

1шт.

48

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

Bearing

1шт.

48

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

Bearing

1шт.

48

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

Bearing

1шт.

48

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

Bearing

1шт.

49

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

3шт.
