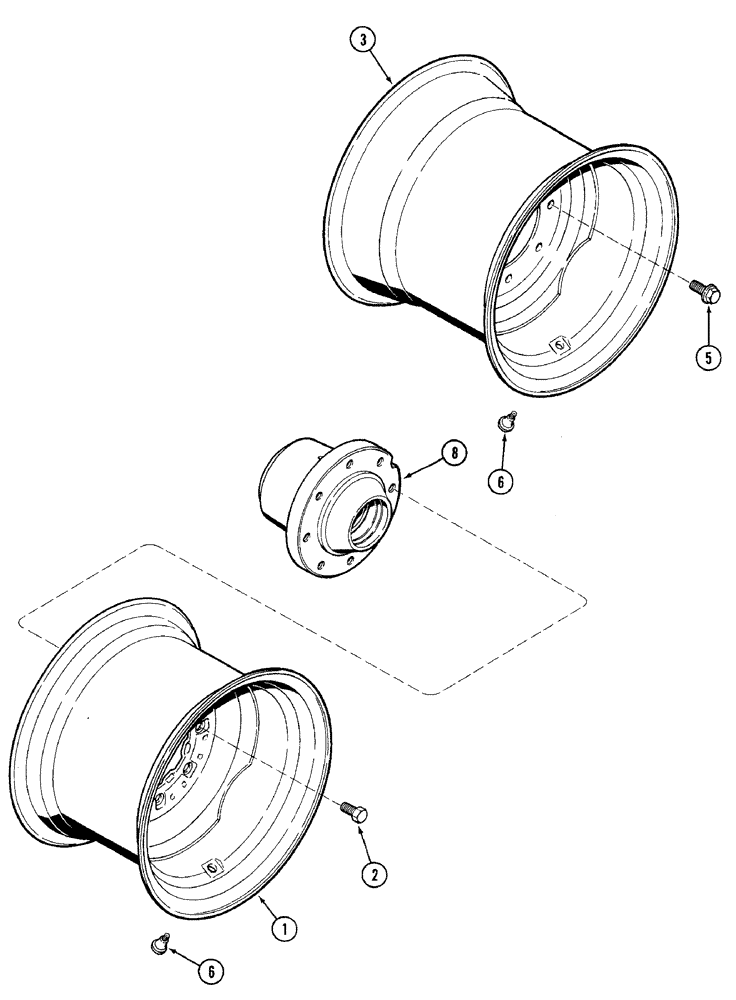

Запчасти Case IH 7210 (5-050) - FRONT WHEELS, 2 WHEEL DRIVE (05) - STEERING

1

1270630C1

RIM

WHEEL front, W10L x 16, for 11.00 x 16 12 ply tire

2шт.

2

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - guide wheel

16шт.

3

1270629C1

RIM

WHEEL front, W11L x 16.1, for 14L x 16.1 10 ply tire

2шт.

3

1270628C1

RIM

front, W14L x 16.1, for 16.5L x 16.1 8 ply tire

2шт.

5

1342033C1

BOLT

BOLT - hex flange special

16шт.

6

A38261

VALVE

stem, tire inflation, tubeless

2шт.

8

1259528C1

HUB

ASSEMBLY - wheel, front, parts list fig. 5-28

2шт.
