Запчасти Case IH 7210 (5-048) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR, ASN JJA0060303 (05) - STEERING

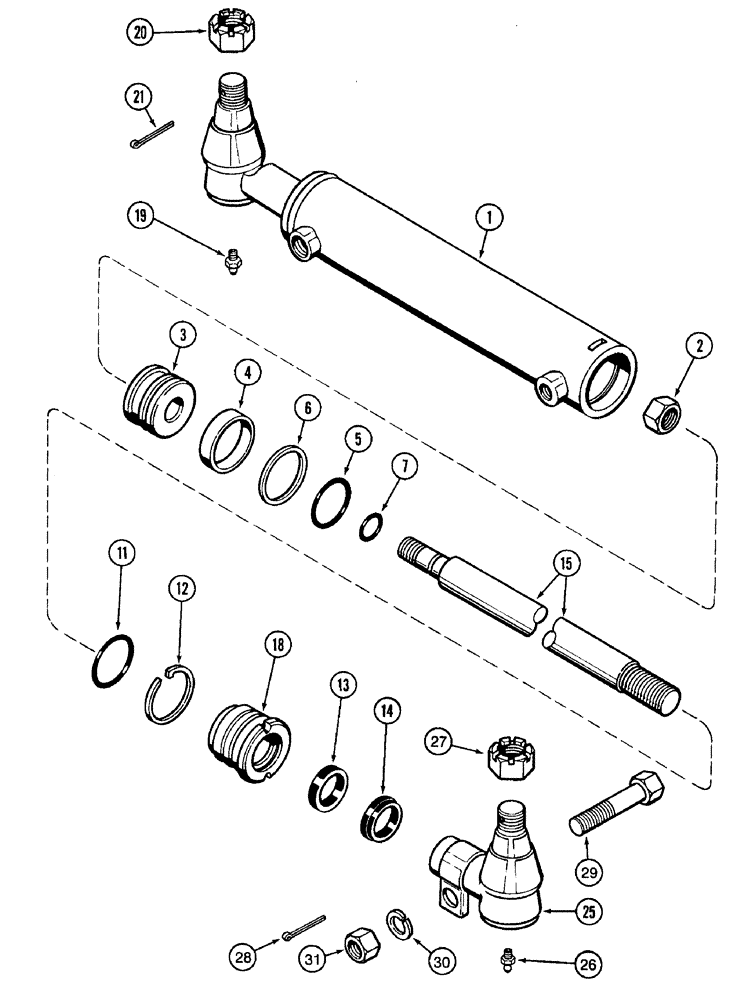

Схема запчастей Case IH 7210 - (5-048) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR, ASN JJA0060303 (05) - STEERING
5
25
14
20
3
13
4
27
6
1
12
15
2
18
28
30
29
31
21
11
19
26
7

Артикул

Название

Примечание

Количество

123480A1

AXLE, FRONT

ASSEMBLY - front, parts list fig'.s 5-34 - 5-48, no longer available, order 197318A1 axle assembly

1шт.

197318A1

AXLE, FRONT

ASSEMBLY - front, 30 kph, parts list fig'.s 5-34- 5-48, if used

1шт.

197320A1

AXLE, FRONT

ASSEMBLY - front, 40 kph, parts list fig'.s 5-34 - 5-48, if used

1шт.

277765A1

STEERING CYLINDER,Double Acting, 50.8mm Rod, 228.6mm Stroke

ASSEMBLY - 51 (2) ID x 229 mm (9 inch) stroke, steering, left-hand, replaces 194247A1 cylinder

1шт.

277765A1R

REMAN-HYD CYLINDER

7210, 7220 Both (10/93-12/96)

1шт.

277765A1C

CORE-HYD CYLINDER

Return Number

1шт.

277766A1

STEERING CYLINDER,Double Acting, 50.8mm Rod, 228.6mm Stroke

ASSEMBLY - 51 (2) ID x 229 mm (9 inch) stroke, steering, right-hand, replaces 194249A1 cylinder

1шт.

277766A1R

REMAN-HYD CYLINDER

7210, 7220, Both (10/93-12/96)

1шт.

277766A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282023C1

LOCK NUT

hex lock, cylinder rod

1шт.

3

194251A1

PISTON

cylinder

1шт.

194254A1

SEAL KIT

KIT - cylinder repair

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - wear

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

15

194253A1

PISTON ROD

cylinder, right-hand (Shown)

1шт.

15

194252A1

PISTON ROD

cylinder, left-hand

1шт.

18

194250A1

CYLINDER END CAP

GLAND - cylinder, no longer available, order either 277765A1 left-hand steering cylinder or 277766A right-hand steering cylinder

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

20

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8

1шт.

21

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

25

1277261C1

BALL JOINT

ASSEMBLY - cylinder

2шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

27

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8

1шт.

28

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

29

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

BOLT - hex, 5/8 NF x 2-3/4 inch

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1110

NUT,5/8"-18, G5

2шт.

Выбрано товаров: 34
