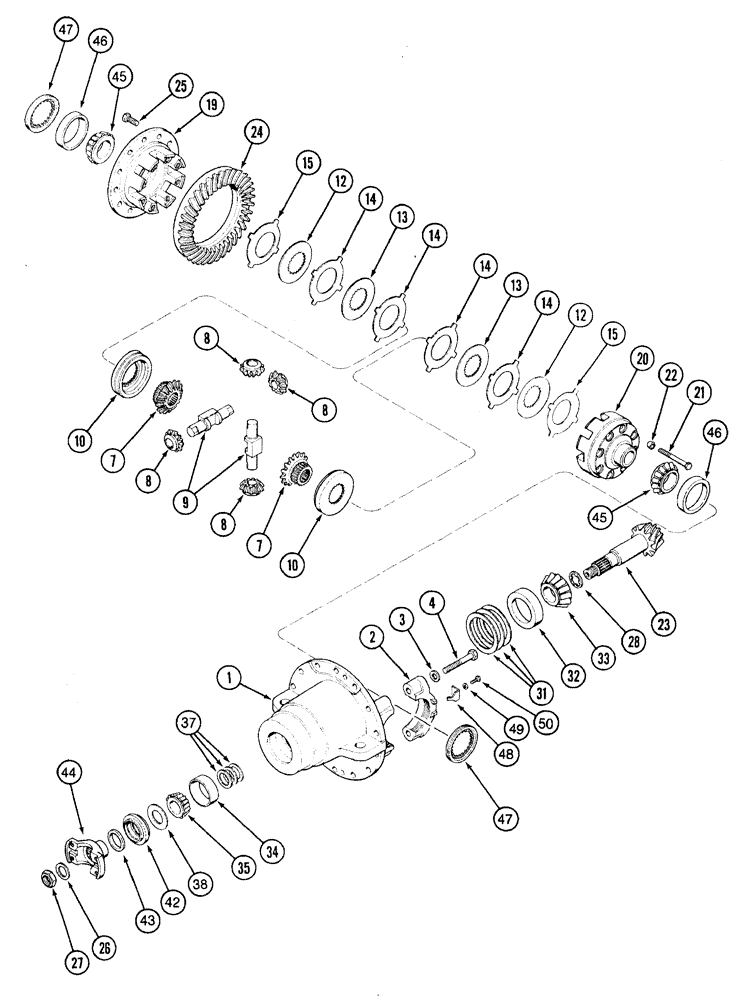

Запчасти Case IH 7210 (5-040) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING

123480A1

AXLE, FRONT

ASSEMBLY - front, parts list fig'.s 5-34 - 5-48, no longer available, order 197318A1 or 197318A1 axle assembly

1шт.

197318A1

AXLE, FRONT

ASSEMBLY - front, 30 kph, parts list fig.'s 5-34- 5-48, if used

1шт.

197320A1

AXLE, FRONT

ASSEMBLY - front, 40 kph, parts list fig'.s 5-34 - 5-48, if used

1шт.

1961734C1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 123480A1 or 197318A1 axle assembly

1шт.

128926A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 197320A1 axle assembly

1шт.

1961741C1

HOUSING

CARRIER ASSEMBLY - differential

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, differential

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

434320R1

BOLT,Hex, 5/8" - 18 x 3 3/4", Gr 8

hex, 5/8 NF x 3-3/4 inch grade 8

4шт.

1277225C2

DIFFERENTIAL

ASSEMBLY - front axle

1шт.

1277402C1

KIT

differential, gear

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

4шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - differential

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

2шт.

1968294C1

KIT

disc and plate, differential

1шт.

12

NSS

NOT SOLD SEPARAT

DISC - dished

2шт.

13

NSS

NOT SOLD SEPARAT

DISC - flat

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - flat

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE - dished

1шт.

NSS

NOT SOLD SEPARAT

GASKET - oil seal (Not used this application)

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear half, differential

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - half, differential

1шт.

21

1997853C1

BOLT

BOLT - special, differential case

8шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - bolt

8шт.

1968293C1

BEVEL GEAR

GEAR SET - ring and pinion, differential, 4.10 ratio, 123480A1 or 197318A1 axle assembly

1шт.

128864A1

GEAR-SET

ring and pinion, differential, 3.73 ratio, 197320A1 axle assembly

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - ring, front differential

1шт.

25

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - hex head, replaces 1287668C1 bolt

12шт.

26

H224501

WASHER

flat, special, 7/8 inch, replaces 912716R1 washer

1шт.

27

232-46114

LOCK NUT,7/8"-14, GC

(Replaces 912726R1)

1шт.

28

N9847

SPACER

pinion gear, pinion, replaces 1969538C1 spacer

1шт.

1277229C1

PACKAGE

KIT - shim, pinion adjusting

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.003 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.005 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.010 inch

5шт.

32

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

tapered roller

1шт.

33

1968296C1

TAPERED BEARING

tapered roller

1шт.

34

1968289C1

BEARING ASSY

tapered roller

1шт.

35

1968288C1

BEARING ASSY

tapered roller

1шт.

REF

INSTRUCTION

CARRIER ASSEMBLY - front axle differential, see fig. 5-40 for carrier options

1шт.

37

1961745C1

KIT

shim, pinion adjustment, orders pieces each of 912708R1, 912709R1, 912710R1 and 912711R1 shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.003 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.010 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.030 inch

5шт.

38

912712R1

WASHER

pinion oil seal

1шт.

42

H758326

OIL SEAL

oil, pinion shaft, replaces 1277230C1 seal

1шт.

43

345427C1

SLINGER

RING - dust shield

1шт.

44

1961747C1

YOKE

UNIVERSAL JOINT YOKE YOKE - pinion shaft

1шт.

45

1968291C1

ROLLER BEARING

CONE - tapered roller, differential mounting

2шт.

46

1968292C1

BEARING

CUP - tapered roller, 4-1/8 inch OD, differential mounting

2шт.

47

1277233C1

RING NUT,14T

differential bearing adjust

2шт.

48

1277234C1

CLIP

bearing adjusting ring

2шт.

49

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened, replaces 27326R1 1/16 inch thick washer

2шт.

50

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.
