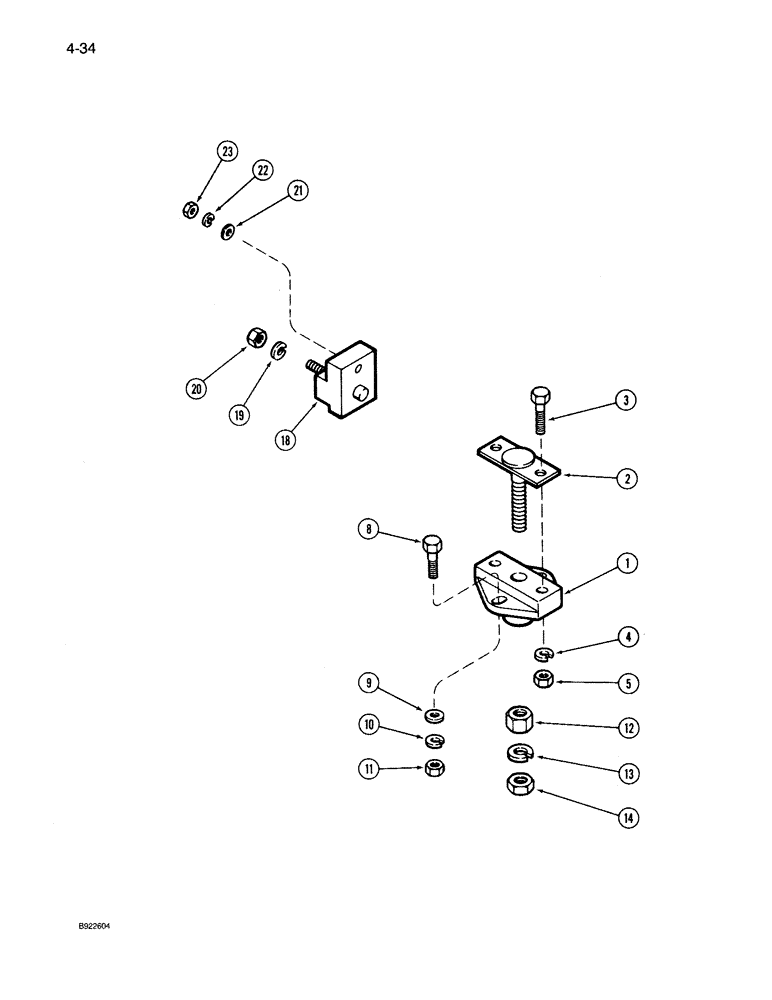

Запчасти Case IH 7150 (4-034) - ELECTRICAL COMPONENT MOUNTING (04) - ELECTRICAL SYSTEMS

1

468647C1

BLOCK ASSY.

BLOCK - junction, power and ground

1шт.

2

1964561C1

BAR

- junction block

1шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

9

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6 mm

2шт.

10

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

11

829-1306

NUT,M6, Cl 10

- hex, 6

2шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

18

245539C1

CONNECTION

BLOCK - junction, if used

1шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used

1шт.

21

495-31022

WASHER,#10

If used #10

1шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, , If Used #10

1шт.

23

225-14110

NUT,#10-24

If used #10-24

1шт.
