Запчасти Case IH 7150 (4-032) - FUSES, SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

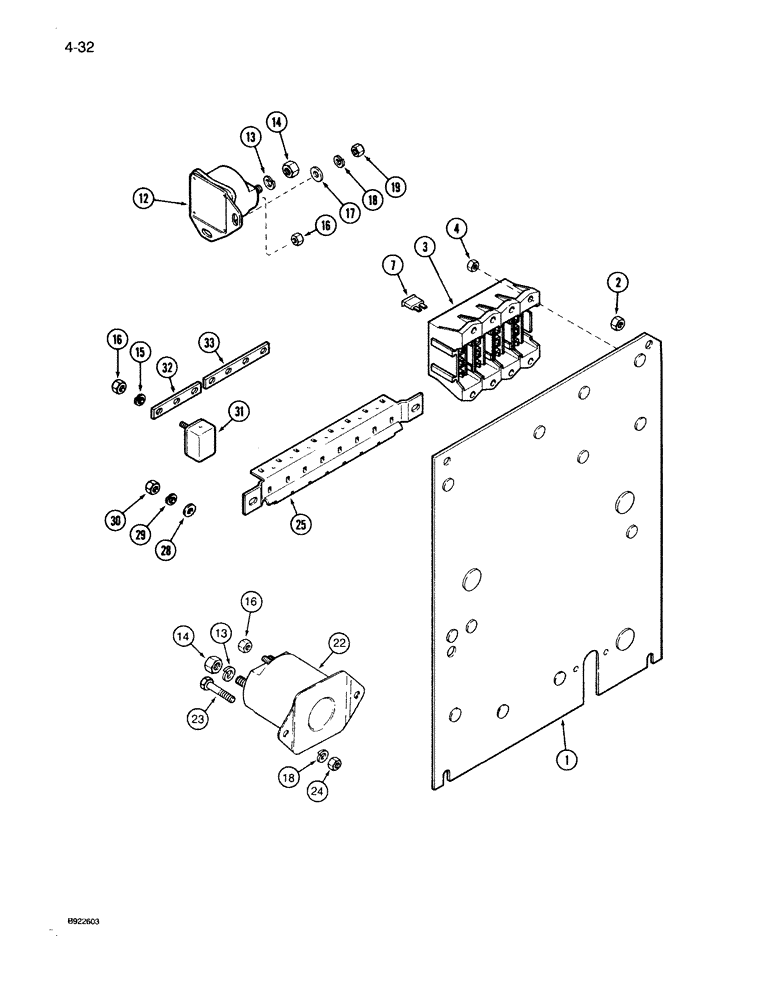

Схема запчастей Case IH 7150 - (4-032) - FUSES, SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS
7
29
14
23
30
28
3
2
33
31
14
16
22
18
4
16
32
15
24
18
16
12
25
13
1
17
19
13

Артикул

Название

Примечание

Количество

1

1964622C3

PLATE ASSY.

PLATE - mounting, Replaces: P/N 1964622C1 and P/N 1964622C2 plates

1шт.

2

825-1406

NUT,M6, Cl 8

8шт.

3

245435C1

FUSE HOLDER

BLOCK - fuse

1шт.

4

225-14110

NUT,#10-24

4шт.

7

A149798

FUSE

- 5 ampere, Tan

4шт.

7

A149799

FUSE

- 7.5 ampere, Brown

1шт.

7

A149800

FUSE,10 Amp

- 10 ampere, Red

3шт.

7

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere, Light blue

4шт.

7

A149802

FUSE

- 20 ampere, Yellow

1шт.

12

A39079

SOLENOID

- ignition, starter

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- hex keps, No. 10-32

1шт.

17

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6 mm

2шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

19

825-1406

NUT,M6, Cl 8

2шт.

22

107655C1

SOLENOID SWITCH

SOLENOID - power, cab

1шт.

23

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

24

829-1306

NUT,M6, Cl 10

- hex, 6 mm

2шт.

25

91954C1

SUPPORT

BRACKET - mounting, circuit breaker

1шт.

28

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

29

492-11025

LOCK WASHER,1/4"

WASHER - lock, 3/8 inch

2шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

31

245761C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

31

245762C1

CIRCUIT-BREAKER,15A

BREAKER - circuit, 15 ampere

1шт.

31

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

2шт.

31

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

4шт.

32

245861C1

BAR

- buss, 3 hole

1шт.

33

245862C1

BAR

- buss, 4 hole

1шт.

Выбрано товаров: 30
