Запчасти Case IH 7150 (4-020) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS

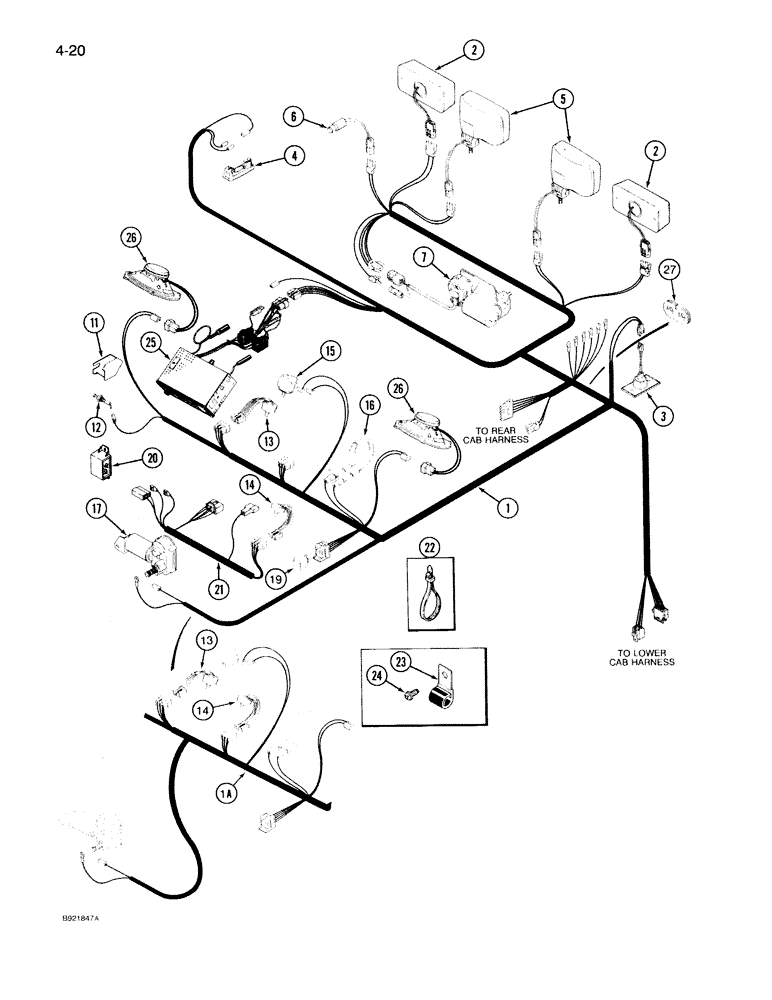

Схема запчастей Case IH 7150 - (4-020) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS
22
11
1
14
24
26
13
15
16
23
27
17
4
2
13
20
3
1a
19
6
7
21
14
2
26
25
5
12

Артикул

Название

Примечание

Количество

1

1964559C1

HARNESS

- headliner, if used

1шт.

1a

1964559C2

HARNESS

- headliner, if used

1шт.

2

REF

INSTRUCTION

LAMP ASSEMBLY - warning, See Figure 4-052

2шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - console, See Figure 4-056

1шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - dome, See Figure 4-056

1шт.

5

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, See Figure 4-056

2шт.

6

92153C1

SWITCH

- pressure, air conditioning low

1шт.

7

REF

INSTRUCTION

MOTOR ASSEMBLY - wiper, windshield, See Figure 4-062

1шт.

11

1977350C1

COVER

- switch, door

1шт.

12

245175C1

SWITCH

- dome light, door

1шт.

13

92115C2

SWITCH

- wiper, windshield, Replaces: P/N 92115C1

1шт.

14

92100C2

SWITCH

- blower

1шт.

15

92101C1

SWITCH

- thermostat

1шт.

16

REF

INSTRUCTION

LIGHT - indicator, air conditioning shut down, See Figure 9-138

1шт.

17

REF

INSTRUCTION

MOTOR ASSEMBLY - wiper, rear, See Figure 4-064

1шт.

19

1-7877

RELAY

- electrical, air conditioning

1шт.

20

D144471

RELAY

- switch, 75 ampere, if equipped

1шт.

21

1964697C1

HARNESS

- adapter, blower, if equipped

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

2шт.

23

97249C1

CLIP

CLAMP - harness

2шт.

24

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - truss head tapping, No. 10 x 3/4 inch, polyseal

2шт.

25

REF

INSTRUCTION

RADIO - entertainment, see Figure 4-060

1шт.

26

REF

INSTRUCTION

SPEAKER - radio, See Figure 4-060

2шт.

27

97039C1

GROMMET

- windshield upper channel

1шт.

Выбрано товаров: 24
