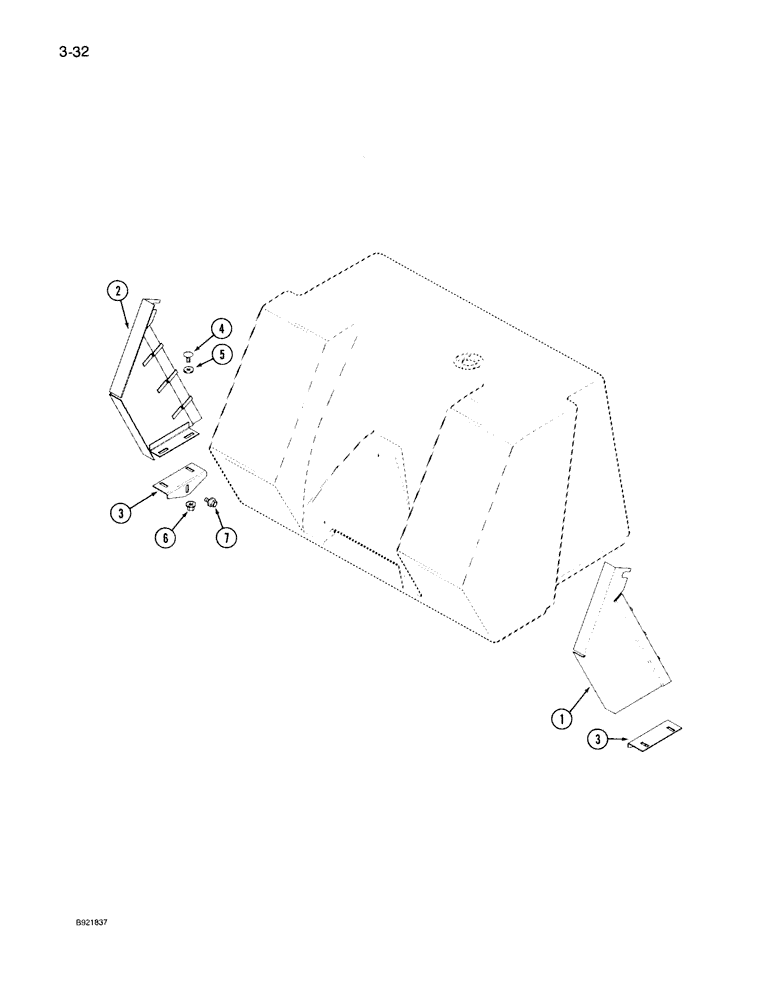

Запчасти Case IH 7150 (3-032) - FUEL TANK MUD GUARD (03) - FUEL SYSTEM

1

1977511C2

GUARD

SHIELD - fuel tank, right

1шт.

2

1977510C2

GUARD

SHIELD - fuel tank, left, Replaces: P/N 1977510C1

1шт.

3

1977716C1

SUPPORT

- angle, shield

2шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

5

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

6шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

2шт.
