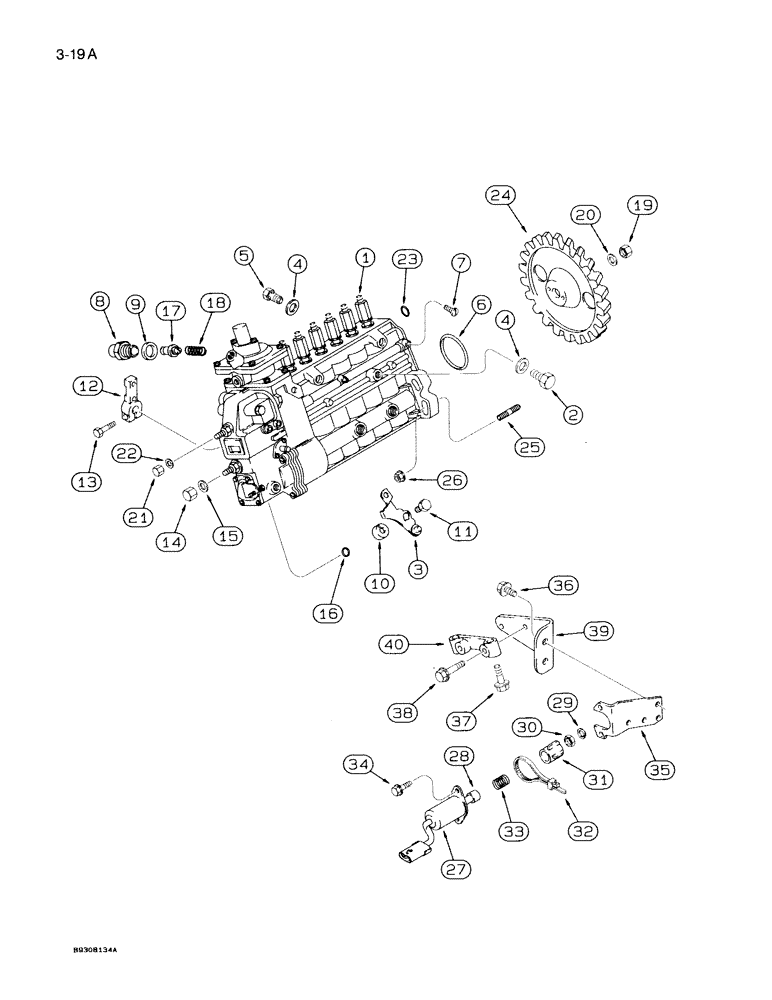

Запчасти Case IH 7150 (3-019A) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE, ENGINE S/N 44827524 AND AFTER (03) - FUEL SYSTEM

1

J926162

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, new, component parts not serviced separately, Includes: Ref. 2-22

1шт.

1

JR926162

REMAN-INJECTION PUMP

Pump Assembly, injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC926162

CORE-INJECTION PUMP

Return Number use this number to return pump core for credit when using a remanufactured assembly

1шт.

2

J913681

BANJO BOLT

VALVE bolt, overflow

1шт.

3

J923230

LEVER

pump shutoff

1шт.

4

J920904

WASHER

sealing

2шт.

5

J920905

BANJO BOLT

SCREW banjo, hollow

1шт.

6

J920906

O-RING,79.5 mm ID x 2 mm

O-RING sealing, pump mounting to gear housing

1шт.

7

J920907

SCREW,Hex, Slotted, M6 x 1 x 10mm

vent

1шт.

8

J920909

NUT

cap, timing pin

1шт.

9

J920910

PACKING RING

WASHER sealing

1шт.

10

J920913

COVER

return spring

1шт.

11

J920914

BOLT

shutoff lever

1шт.

12

J920915

CONTROL LEVER

LEVER throttle control

1шт.

13

J920916

BOLT,Hex, M6 x 1 x 22mm

BOLT throttle lever

1шт.

14

J920917

NUT

cap

1шт.

15

J920919

WASHER

sealing

2шт.

16

J920920

O-RING,9 mm ID x 2.5 mm

O-RING sealing

1шт.

17

J921369

PIN

timing

1шт.

18

J921370

SPRING

timing pin

1шт.

19

J921372

LOCK NUT

hex lock

1шт.

20

J921373

LOCK WASHER

WASHER lock

1шт.

21

J921375

NUT

cap, low idle screw

1шт.

22

J921376

WASHER

sealing

1шт.

23

J916284

O-RING

12.37 ID x 2.62 mm, fuel pump to gear housing

1шт.

24

J920553

GEAR

fuel pump

1шт.

25

J915036

STUD

pump mounting, 2-5/32 in, (55 mm)

2шт.

26

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

27

J923257

SOLENOID

ASSEMBLY fuel shutoff, 12 volt, Includes: Ref. 28-33

1шт.

28

A77807

SET

KIT plunger, ball socket and clip

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

31

J925171

BOOT

protective, plunger

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

33

J923887

SPRING

return, plunger

1шт.

34

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 x 20 mm, special

2шт.

35

J923256

SUPPORT

BRACKET solenoid mounting

1шт.

36

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

37

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

heavy hex flange, 10 - 1.50 x 25 mm, class 10.9

2шт.

38

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 50 mm

4шт.

39

J920639

BRACE

fuel pump

2шт.

40

J922672

HOLDER

SUPPORT fuel pump

1шт.
