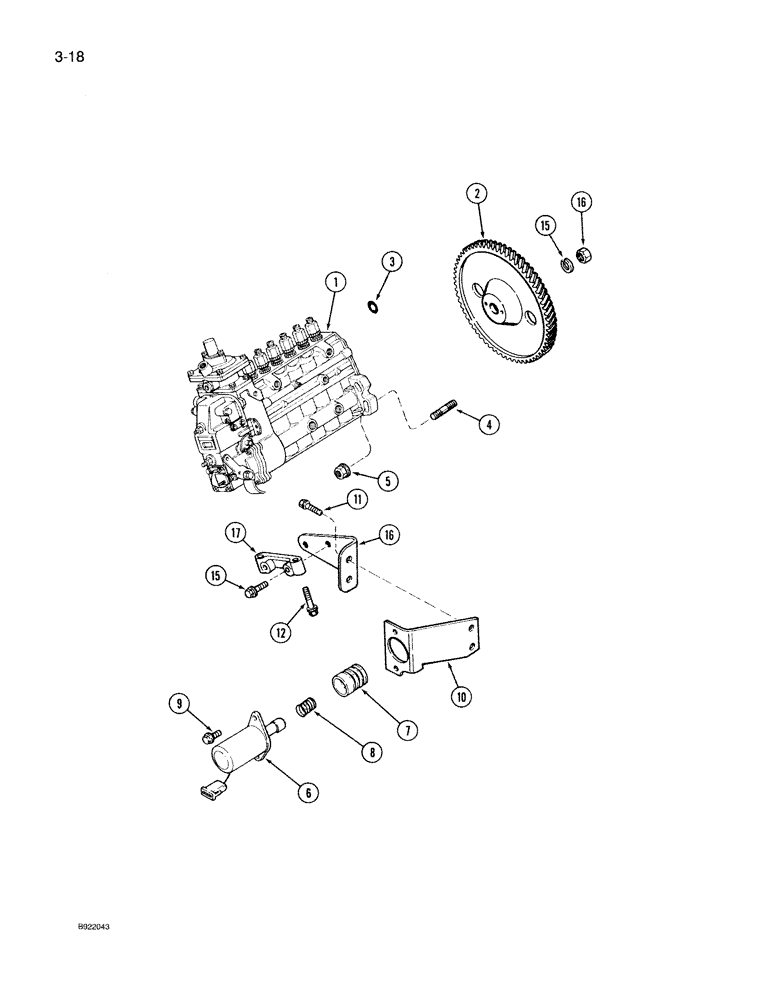

Запчасти Case IH 7150 (3-018) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE, PRIOR TO ENGINE S/N 44827524 (03) - FUEL SYSTEM

1

J921232

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, new, component parts not serviced separately, Serial Range: -44827152

1шт.

1

JR921232

REMAN-INJECTION PUMP

Pump Assembly, injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC921232

CORE-INJECTION PUMP

Return Part Number use this number to return pump core for credit when using a remanufactured assembly

1шт.

1a

J921166

PUMP, FUEL INJECTION

PUMP ASSEMBLY, fuel injection, not shown, Start Serial: 44827152

1шт.

1b

J926162

PUMP, FUEL INJECTION

not shown

1шт.

2

J920553

GEAR

fuel pump

1шт.

3

J916284

O-RING

sealing, fuel pump to gear housing Replaces: NSS

1шт.

4

J915036

STUD

pump mounting, 2-5/32 in, (55 mm)

2шт.

5

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

6

J921978

SOLENOID

ASSEMBLY fuel shutoff, 12 volt, Replaces: P/N J918600 solenoid, Includes: Ref. 7-8

1шт.

7

J924912

BOOT

protective, plunger, Replaces: P/N A77681 boot

1шт.

8

J921760

SPRING

return, plunger, Replaces: P/N A77702 spring

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

10

J918679

HOLDER

BRACKET solenoid mounting

1шт.

11

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

12

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

heavy hex flange, 10 - 1.50 x 25 mm, class 10.9

2шт.

15

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 50 mm

4шт.

15

J921373

LOCK WASHER

WASHER lock

1шт.

16

J920639

BRACE

fuel pump

2шт.

16

J921372

LOCK NUT

1шт.

17

J920638

HOLDER

SUPPORT fuel pump

1шт.

J920906

O-RING,79.5 mm ID x 2 mm

O-RING large, for front of pump

1шт.
