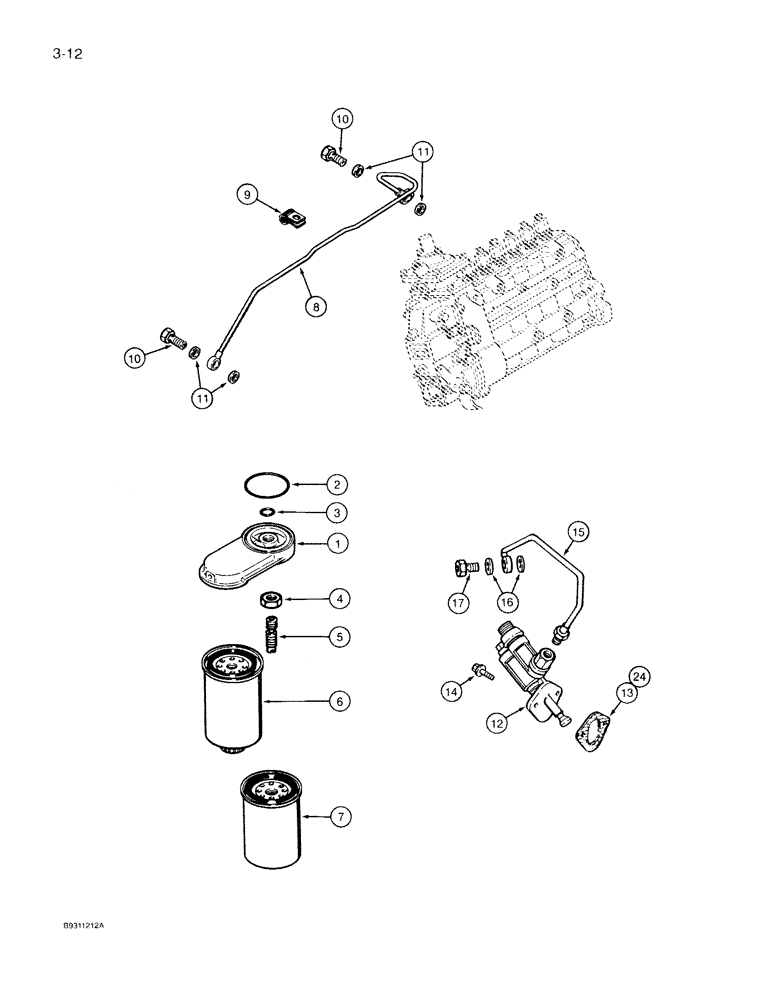

Запчасти Case IH 7150 (3-012) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING sealing, 70 mm ID, filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING sealing, 14 mm ID, adapter

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J903845

BANJO BOLT

ADAPTER fuel filter

1шт.

6

J925274

FILTER, FUEL

FILTER fuel, primary, Replaces: P/N J903410 filter

1шт.

7

J903640

FILTER, FUEL

FILTER fuel, secondary

1шт.

8

J921313

FUEL TUBE

TUBE fuel supply

1шт.

9

J914711

CLIP

tube retaining

1шт.

10

J907541

BANJO BOLT

BOLT connector, banjo

2шт.

11

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, 14 x 20 x 1 mm

4шт.

12

J917998

PUMP

fuel transfer

1шт.

Ref. 12 - Lift pump numbers that are listed may cause a high lift pump pressure and noise complaint. Use J934468 on all Magnums (7100-7200) below P.I.N. JJA0064989

1шт.

13

J914304

GASKET

mounting, lift pump

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

15

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE supply

1шт.

16

J918191

PACKING RING

WASHER sealing, 12 x 18 x 1 mm

2шт.

17

J916361

BANJO BOLT

BOLT banjo special, M12 x 24

1шт.

18

J923615

GASKET KIT

KIT repair, fuel transfer pump, not shown, Replaces: P/N J920544 kit, Includes: Ref. 19-25

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET check valve, not shown

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

3шт.

23

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

24

J914304

GASKET

mounting, pump

2шт.

25

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.
