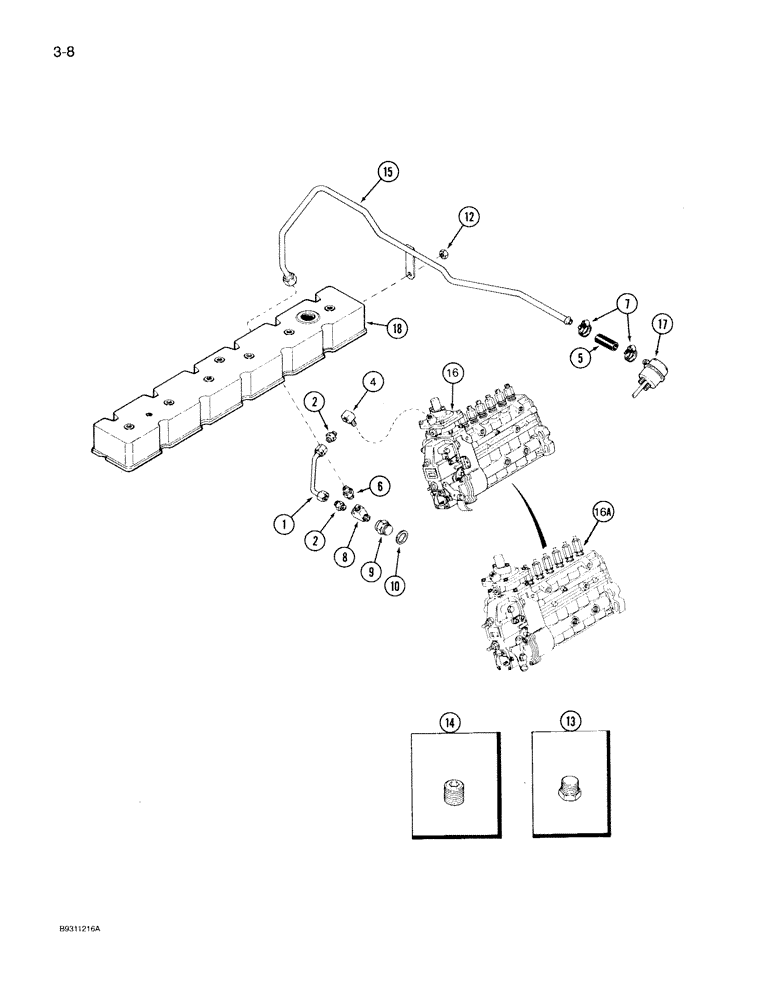

Запчасти Case IH 7150 (3-008) - ANEROID AND WASTEGATE SYSTEM, 6TA-830 ENGINE (03) - FUEL SYSTEM

1

J921304

TUBE,4.76 mm OD x 101.7 mm L

control, air fuel

1шт.

2

J909552

CONNECTION

CONNECTOR 1/8 NPT x 7/16 inch

2шт.

4

J922150

ELBOW

street, 90°

1шт.

5

J920871

HOSE,1294.00 mm

plain

2шт.

6

A77796

CONNECTOR, ELEC

ADAPTER straight, 1/4 barb end x 1/8 inch PT

1шт.

7

J920719

HOSE CLAMP

CLAMP hose

4шт.

8

J920592

TEE

street pipe

1шт.

9

J921594

PLUG

threaded orifice, tee to cylinder head

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug to cylinder head

2шт.

12

J900589

NUT

hex flange, 8 mm, aneroid tube to cover mounting stud, See Ref. 5A, Figure 2-050

1шт.

13

J908110

PLUG

threaded, 22 mm x 1/8 inch NPT

2шт.

14

A77427

PLUG

hex socket, 1/8 inch PT

2шт.

15

J922640

TUBE,6.35 mm OD x 775.5 mm L

wastegate actuator, Replaces: P/N J921562 tube

1шт.

16

J921232

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, prior to Engine Serial Number 44827524, See Figure 3-018

1шт.

16a

J926162

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, Engine Serial Number 44827524 and after, See Figure 3-019A

1шт.

17

REF

INSTRUCTION

ACTUATOR turbo wastegate, See Figure 2-042

1шт.

18

J907734

COVER ASSY

COVER valve, See Figure 2-050

1шт.
