Запчасти Case IH 7150 (2-094) - VALVE GRIND GASKET KITS, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

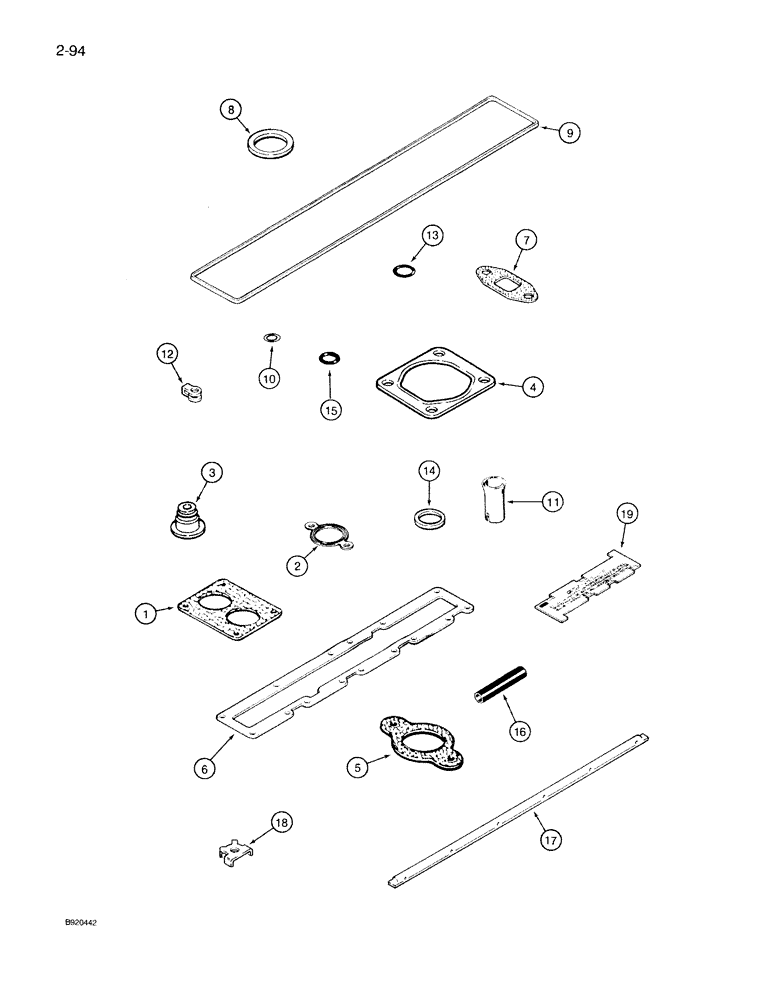

Схема запчастей Case IH 7150 - (2-094) - VALVE GRIND GASKET KITS, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE
6
7
11
12
15
10
2
5
14
3
18
19
16
13
4
8
9
17
1

Артикул

Название

Примечание

Количество

A77794

GASKET KIT

KIT gasket, valve grind, Replaces: P/N A77678 and P/N A77630 kits, Includes: Ref. 1-19

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-050.

1шт.

1

J914310

GASKET,0.8mm Thk

thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

outlet tube, water

1шт.

3

J915707

SEAL

intake and exhaust valve stem

12шт.

4

J911941

GASKET

turbocharger mounting

1шт.

5

J921787

GASKET

manifold, exhaust, Replaces: P/N J911942 gasket

6шт.

6

J914311

MANIFOLD GASKET

cover, intake manifold

1шт.

7

J914388

GASKET

turbocharger drain tube

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING seal, oil fill cap to valve cover

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL cover, rocker

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector seal

6шт.

12

J903380

SEAL

connector, fuel injection nozzle

7шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing, breather tube

1шт.

14

J906659

SEAL

GASKET injector nozzle

6шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector 19.05 mm ID x 51.00 mm

1шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve -111, 70 Duro, .424" ID x .103" Thk

1шт.

17

J919677

TUBE

oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

PLATE locking, bolt, exhaust manifold

12шт.

19

J823921

GAUGE

head bolt, cylinder head

1шт.

Выбрано товаров: 21
