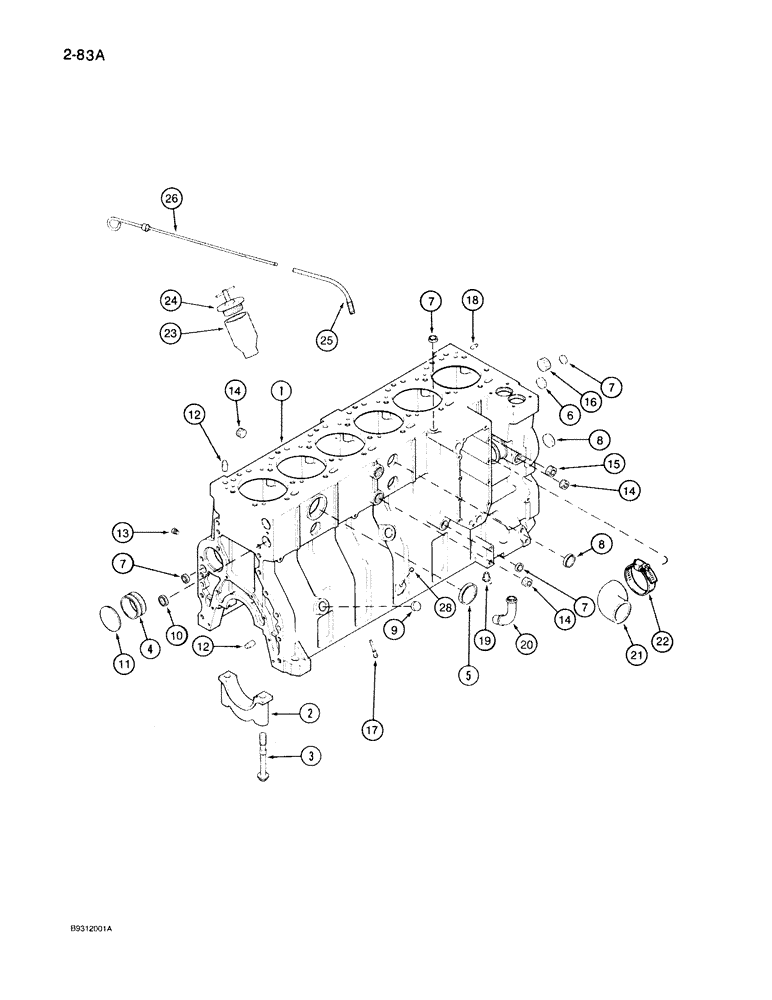

Запчасти Case IH 7150 (2-083A) - CYLINDER BLOCK, 6TA-830 ENGINE, ENGINE S/N 44823528 AND AFTER (02) - ENGINE

1989186C1

ENGINE ASSEMBLY

ENGINE ASSY 6TA-830, complete, 7140 tractor, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler & exhaust pipe, for service order 1989099C2 basic engine below

1шт.

1989186C1R

REMAN-REPLACEMENT EN

1шт.

6TA-830C

CORE-REPLACEMENT ENG

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

1989185C2

MOTOR

ENGINE ASSEMBLY 6TA-830, complete, 7150 tractor, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler & exhaust pipe, for service order 1989167C2 basic engine below

1шт.

87448684

REMAN-SHORT ENGINE

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number

1шт.

AR174399

REMAN-BASIC ENGINE

Before Engine SN44823528. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174399

CORE-BASIC ENGINE

Return Number

1шт.

1989099C2

BASIC ENGINE

ENGINE ASSEMBLY basic, new, 7140 tractor

1шт.

P/N 1989099C2 includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel injection pump, injectors & lines, front crank pulley, belt tensioner & turbocharger

1шт.

1989167C2R

ENGINE, EXCHANGE

Engine (Exchange) Engine Assembly basic, remanufactured, 7150 tractor, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1989167C1C

CORE-ENGINE

Return Part Number use this part number to return basic engine core for credit when using a remanufactured assembly, 7150 tractor

1шт.

1989167C2

BASIC ENGINE

ENGINE ASSEMBLY basic, new, 7150 tractor

1шт.

P/N 1989167C2 includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel injection pump, injectors & lines, front crank pulley, belt tensioner & turbocharger

1шт.

199949A1R

REMAN-BASIC ENGINE

Engine SN 44823528 and After .Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

199949A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR925187

SKELETON ENGINE

Block Assembly short, remanufactured, 7140 and 7150 tractors, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC925187

CORE-SHORT ENGINE

Return Part Number use this part number to return short block core for credit when using a remanufactured assembly, 7140 and 7150 tractors

1шт.

J925187

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, new, 7140 and 7150 tractors, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1-8

1шт.

1

J923289

CRANKCASE

BLOCK ASSEMBLY stripped, engine, Includes: Ref. 2-8

1шт.

Order Ref. 9 - 20 when ordering P/N J923289 stripped block assembly.

1шт.

2

J917313

BEARING CAP

CAP bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, , Main bearing cap to block Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

BUSHING camshaft, See Figure 2-058, Ref. 6

7шт.

5

A77782

PLUG

PLUG expansion, 58 mm O.D.

1шт.

6

A77586

PLUG

PLUG expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

PLUG expansion, 35 mm O.D.

4шт.

A77716

BLOCK

KIT block hardware, Includes: Ref. 9-20, no longer available, order components separately

1шт.

Order Ref. 9 - 20 when ordering P/N J923289 stripped block assembly.

1шт.

9

J920706

PLUG

PLUG expansion, 22 mm O.D., not used in this application

1шт.

10

A77530

PLUG

PLUG expansion, 30 mm O.D.

2шт.

11

J901969

PLUG

PLUG expansion, 69 mm O.D.

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

PIN dowel

4шт.

13

J906619

PLUG,1/8" - 27

PLUG hex, 1/8 inch PT

6шт.

14

A77429

PLUG

PLUG hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

PLUG hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

PLUG hex socket, 1 inch PT

1шт.

17

J919003

NOZZLE INJECTION

NOZZLE cooling, piston

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

PIN dowel, 16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE drain, coolant

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain, See Figure 2-038 for connecting turbocharger parts

1шт.

21

J920762

ELBOW

HOSE elbow, water, 79 mm, 3-1/8 inch

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

CLAMP hose, coolant, 1-13/16 - 2-3/4

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

TUBE filler, oil

1шт.

24

A77424

FILLER CAP

CAP filler

1шт.

25

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

TUBE oil dipstick

1шт.

26

J908094

DIPSTICK

DIPSTICK oil

1шт.

27

A77595

KIT

KIT engine block heater, not shown, See Figure 2-060 for component parts

1шт.

28

J900955

PLUG

PLUG 10 mm, left hand or right hand dipstick hole, if used

1шт.
