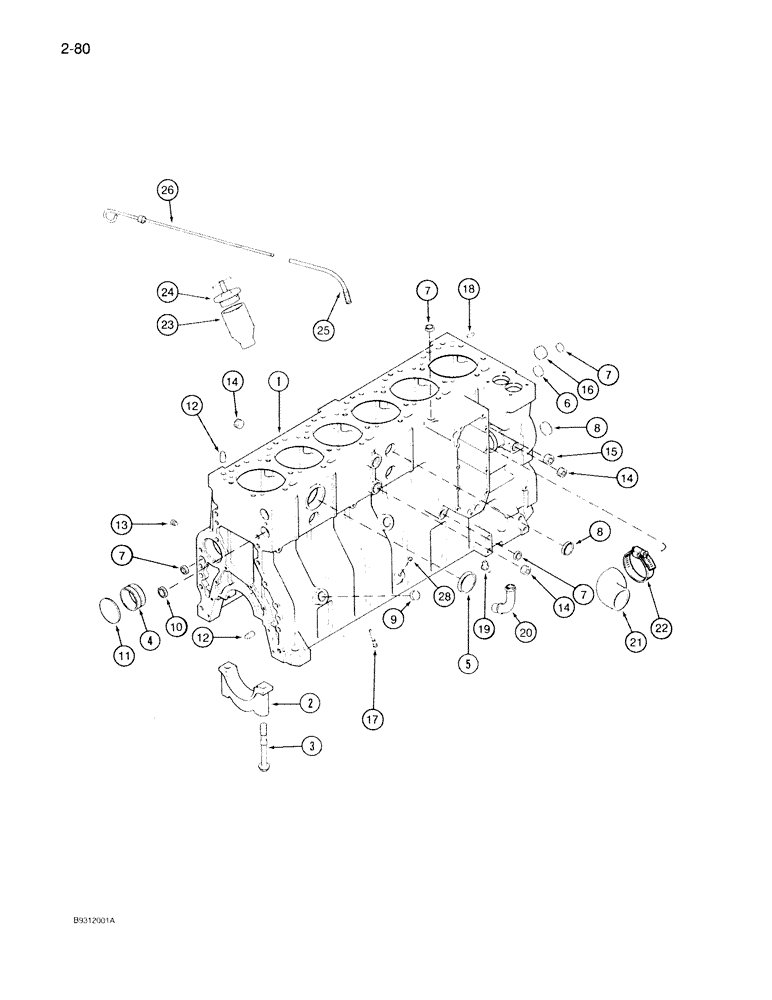

Запчасти Case IH 7150 (2-080) - CYLINDER BLOCK, 6TA-830 ENGINE, BLOCK W/12 PISTON COOLING NOZZLES, ENGINE S/N 44706126 THRU 44823527 (02) - ENGINE

1989008C2

ENGINE ASSEMBLY

6TA-830, complete, 7140 tractor, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler & exhaust pipe, for service order 1989099C2 basic engine below

1шт.

1989114C2

MOTOR

ENGINE ASSEMBLY 6TA-830, complete, 7150 tractor, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler & exhaust pipe, for service order 1989099C2 basic engine below

1шт.

AR174399

REMAN-BASIC ENGINE

Before Engine SN ESN44823528. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174399

CORE-BASIC ENGINE

Return Number

1шт.

1989099C2

BASIC ENGINE

ENGINE ASSY basic, new

1шт.

199949A1R

REMAN-BASIC ENGINE

After Engine SN ESN44823528. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

199949A1C

CORE-BASIC ENGINE

Return Number

1шт.

JR921839

BLOCK

Assembly short, remanufactured, 7140 tractor only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC921839

CORE-SHORT ENGINE

Return Number

1шт.

JR925187

SKELETON ENGINE

Block Assembly short, remanufactured, 7150 tractor only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC921843

CORE-SHORT ENGINE

Return Part Number use this part number to return short block core for credit when using a remanufactured assembly, 7140 and 7150 tractors

1шт.

J921839

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, new, 7140 tractor only, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, uses piston kits on Figure 2-091A, Includes: Ref. 1 thru 9

1шт.

J925187

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, new, 7150 tractor only, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, uses piston kits on Figure 2-091A, Includes: Ref. 1 thru 9

1шт.

JR919934

BLOCK

Assembly stripped, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, no longer available

1шт.

JC919374

CORE-ENGINE

Return Part Number use this part number to return stripped block core for credit when using a remanufactured assembly, no longer used

1шт.

1

J919934

CYLINDER BLOCK

BLOCK ASSEMBLY stripped, engine, Includes: Ref. 2-9

1шт.

Order Ref. 10 - 20 when ordering P/N J919934 stripped block assembly.

1шт.

2

J917313

BEARING CAP

CAP bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, , Main bearing cap to block Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

camshaft, See Figure 2-058, Ref. 6

7шт.

5

A77782

PLUG

expansion, 58 mm O.D., Replaces: P/N J900965 plug

1шт.

6

A77586

PLUG

expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

expansion, 35 mm O.D.

4шт.

9

A77439

PLUG

expansion, 22 mm O.D.

1шт.

A77716

BLOCK

KIT hardware, Includes: Ref. 10-20, no longer available, order components separately

1шт.

Order Ref. 10 - 20 when ordering P/N J919934 stripped block assembly.

1шт.

10

A77530

PLUG

expansion, 30 mm O.D.

2шт.

11

J901969

PLUG

expansion, 69 mm O.D.

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

dowel

4шт.

13

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

6шт.

14

A77429

PLUG

hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

hex socket, 1 inch PT

1шт.

17

J919003

NOZZLE INJECTION

NOZZLE cooling, piston

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE drain, coolant

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbo drain

1шт.

21

J920762

ELBOW

HOSE elbow, water, Replaces: P/N J909389 hose

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

CLAMP hose, coolant, 1-13/16 - 2-3/4

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

filler, oil

1шт.

24

A77424

FILLER CAP

CAP filler

1шт.

25

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

oil dipstick

1шт.

26

J908094

DIPSTICK

oil

1шт.

27

A77595

KIT

engine block heater, not shown, See Figure 2-072 for component parts

1шт.

28

J900955

PLUG

10 mm, left hand or right hand dipstick hole, if used

1шт.
