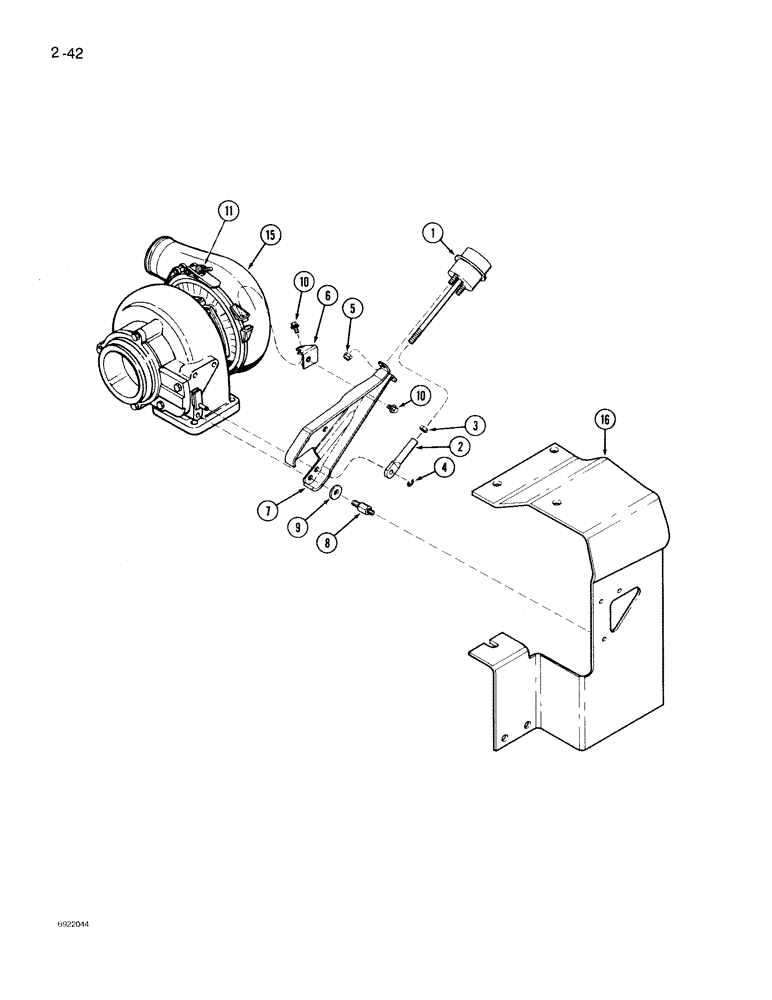

Запчасти Case IH 7150 (2-042) - WASTEGATE ACTUATOR, 6TA-830 ENGINE (02) - ENGINE

J545484

PACKAGE

KIT actuator, turbo wastegate, Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

ACTUATOR turbo wastegate

1шт.

2

J528177

LINK

LINK adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

NUT - hex jam, 5/16 inch NF

1шт.

4

J528221

CIRCLIP

RING retaining

1шт.

5

J528204

LOCK NUT

NUT lock, Serial Range: actuator-bracket

2шт.

J545489

PACKAGE

KIT bracket, turbo wastegate, Includes: Ref. 6-10

1шт.

6

J529920

BRACE

BRACE actuator

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET wastegate actuator

1шт.

8

J530726

STUD

STUD actuator bracket

3шт.

P/N 825-5146 is the nut that goes on P/N J530726

1шт.

9

J504967

WASHER

WASHER flat

3шт.

10

854-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 10.9

BOLT hex head cap, 6 x 10 mm

3шт.

11

J529919

COLLAR CLAMP

CLAMP "V" band

1шт.

15

J533740

TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, See Figure 2-040

1шт.

15

JR802587

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

15

JC533972

CORE-TURBOCHARGER

Return Part Number

1шт.

16

REF

INSTRUCTION

SHIELD turbocharger, See Figure 2-024 or 2-026 for correct shield and mounting hardware

1шт.
