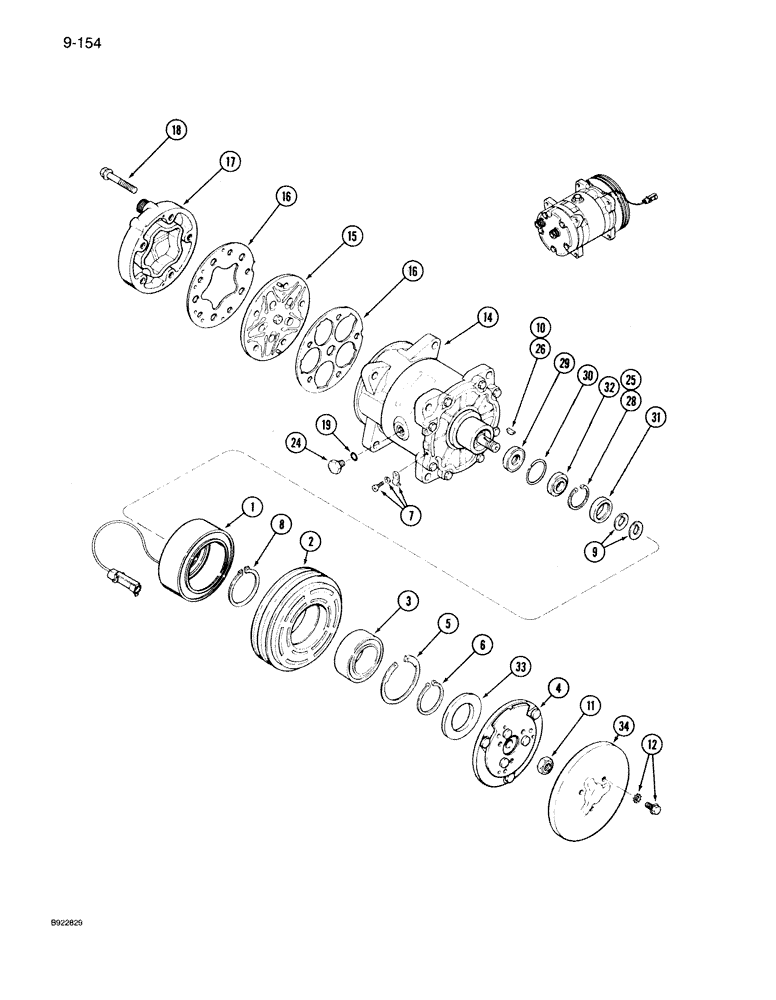

Запчасти Case IH 7150 (9-154) - AIR CONDITIONING, COMPRESSOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
97204C1
COMPRESSOR
COMPRESSOR ASSEMBLY air conditioning, Includes: compressor clutch assembly and Ref. 1-34
1шт.
97204C1R
COMPRESSOR
Reman compressor
1шт.
97204C1C
COMPRESSOR
Return Number
1шт.
1977959C1R
REMAN-A/C COMPRESSOR
Reman For New PN 97204C1
1шт.
1977959C1C
CORE-A/C COMPRESSOR
Return Number
1шт.
83935C1
CLUTCH
CLUTCH ASSEMBLY - compressor, Includes: Ref. 1
1шт.
1
NSS
NOT SOLD SEPARAT
COIL ASSEMBLY - field, 12 volt
1шт.
2
NSS
NOT SOLD SEPARAT
PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3
1шт.
3
NSS
NOT SOLD SEPARAT
BEARING - pulley
1шт.
4
NSS
NOT SOLD SEPARAT
PLATE - front
1шт.
5
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
A49673
KIT
ACCESSORY KIT - clutch, Includes: Ref. 6 thru 12
1шт.
6
NSS
NOT SOLD SEPARAT
RING - snap, pulley
1шт.
7
NSS
NOT SOLD SEPARAT
CLAMP ASSEMBLY - lead wire
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, clutch
1шт.
9
NSS
NOT SOLD SEPARAT
SHIM - clutch
1шт.
10
NSS
NOT SOLD SEPARAT
KEY - clutch drive
1шт.
11
NSS
NOT SOLD SEPARAT
NUT - retainer
1шт.
12
NSS
NOT SOLD SEPARAT
SCREW - retainer
1шт.
14
NSS
NOT SOLD SEPARAT
BLOCK ASSEMBLY - compressor
1шт.
15
NSS
NOT SOLD SEPARAT
PLATE ASSEMBLY - valve, Includes: Ref. 16 thru 32
1шт.
16
A49668
GASKET KIT
GASKET KIT - valve plate
1шт.
17
1958959C1
COVER
HEAD - cylinder, Includes: Ref.16
1шт.
18
A49669
SCREW,Cylinder
BOLT - hex flanged, head
5шт.
19
A49666
O-RING
O-RING - rubber
1шт.
24
A49667
PLUG
PLUG - oil filler
1шт.
26
A49671
KEY
KEY - shaft, compressor
1шт.
A49665
SEAL KIT
SEAL KIT - compressor, Includes: Refs. 28-31
1шт.
28
A49664
CIRCLIP
RING - snap
1шт.
29
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
30
NSS
NOT SOLD SEPARAT
O-RING - housing
1шт.
31
NSS
NOT SOLD SEPARAT
RING - felt
1шт.
32
NSS
NOT SOLD SEPARAT
SEAT - seal, shaft
1шт.
33
A49674
BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm
COVER - dust, bearing
1шт.
34
1958961C1
COVER
COVER - dust, clutch
1шт.
Выбрано товаров: 35
