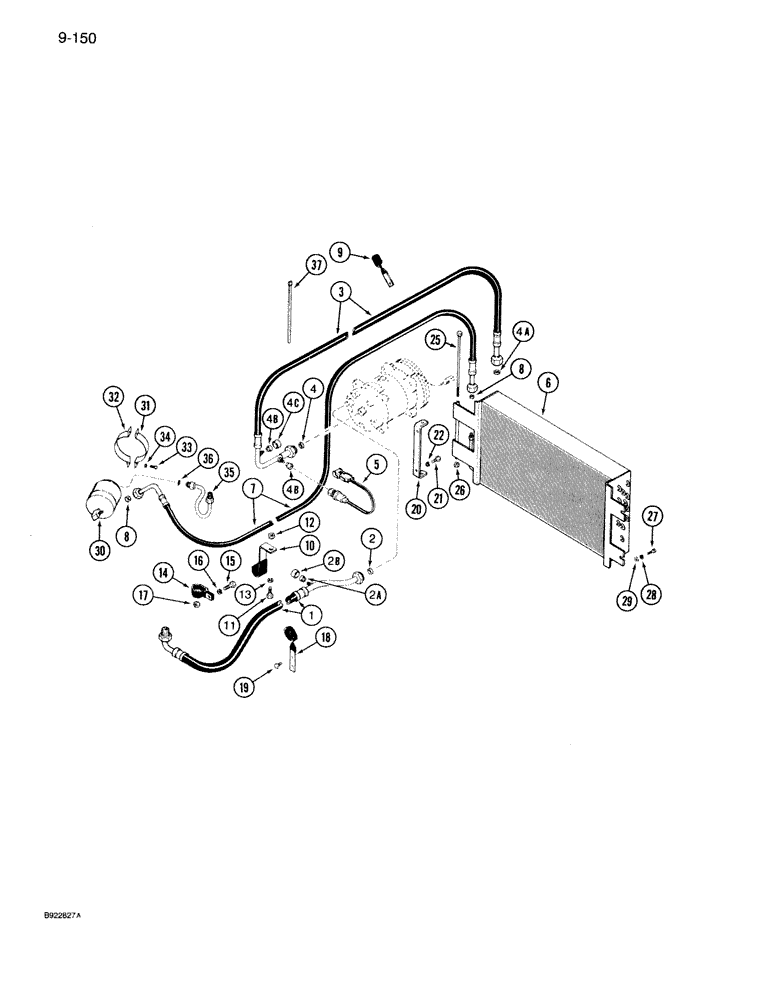

Запчасти Case IH 7150 (9-150) - AIR CONDITIONING, CONDENSER AND RECEIVER DRIER (09) - CHASSIS/ATTACHMENTS

1

98108C2

A/C HOSE

HOSE - suction, Includes: Refs. 2-2B

1шт.

2

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

2a

1250594C1

CORE

VALVE - core

1шт.

2b

118188C1

CAP

- protective, Replaces: 222-981

1шт.

3

98111C2

LARGE HOSE

HOSE - discharge, Includes: Refs. 4-4C

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

4a

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

4b

1250594C1

CORE

VALVE - core

2шт.

4c

118188C1

CAP

- protective, Replaces: 222-981

1шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

6

A184700

CONDENSER

ASSEMBLY - air conditioning

1шт.

7

1999930C1

A/C HOSE

HOSE - condenser to cab Replaces: 98110C2, Includes: Ref. 8

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

9

1954474C4

SHIN

CLAMP - nose, retaining

1шт.

10

1954473C3

CLAMP

- hose, retaining if equipped

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

825-1410

NUT,M10, Cl 8

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

1954490C2

CLAMP

- hose, retaining

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

1954766C2

CLAMP

- hose, retaining

1шт.

19

30931R1

SELF-TAP SCREW,Flat Hd, M6 x 13

SCREW - pan head cross slot, 6 x 12 mm

2шт.

20

A141489

SUPPORT

BRACKET - pivot, condenser

1шт.

21

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

117-2

SQUARE BOLT,1/4" - 20 x 8 1/2", Gr 2

- square head, 1/4 NC x 8-1/2 inch

1шт.

26

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

30

143469C2

RESERVOIR

RECEIVER-DRIER - freon

1шт.

31

98178C1

SUPPORT

BRACKET - receiver-drier

1шт.

32

98177C1

BRACKET

ASSEMBLY - receiver-drier

1шт.

33

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

1999931C1

TUBE

- receiver-drier Replaces: 98215C1, Includes: Ref. 36

1шт.

36

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

37

L76747

STRAP

- nylon

3шт.
