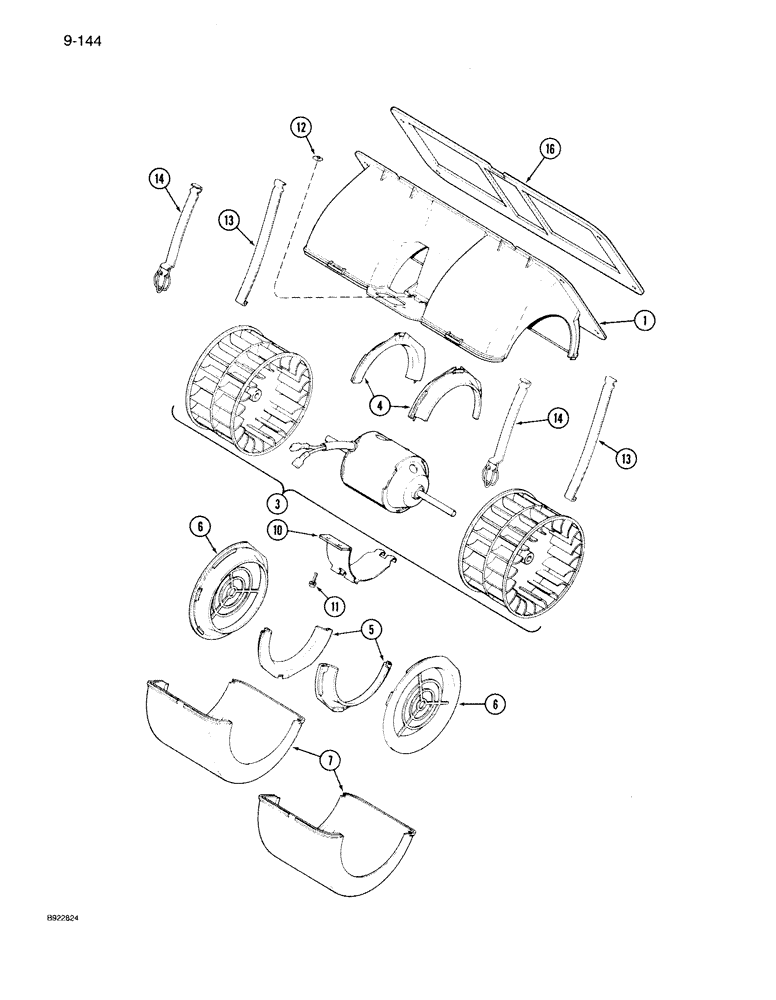

Запчасти Case IH 7150 (9-144) - CAB, BLOWER ASSEMBLY, PRIOR TO CAB S/N JAB0100387 (09) - CHASSIS/ATTACHMENTS

3233573R1

BLOWER

ASSEMBLY air, no longer available, for service order 1977564C2 blower assembly and 1990860C1 bracket, Ref. 3 and 14 in Figure 4-022, Includes: Ref. 1 thru 14

1шт.

1

1975737C1

HOUSING

- blower

1шт.

3

1974779C1

MOTOR

AND FAN ASSEMBLY - blower, balanced

1шт.

3

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1974779C1

1шт.

3

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

4

1975738C1

RING

- housing, upper

2шт.

5

1975738C1

RING

- housing, lower

2шт.

6

1974780C1

VENTURI

- blower inlet

2шт.

7

1975739C1

LID

COVER - blower housing

2шт.

10

1975740C1

HOLDER

RETAINER - blower housing cover

1шт.

11

814-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

- hex, 5 x 16 mm

2шт.

12

1975752C1

SQUARE NUT

- square

2шт.

13

1975741C1

STRAP

- retaining

2шт.

14

1975742C1

STRAP

- latch retaining

2шт.

16

1975743C1

GASKET

GASKET - mounting, blower

1шт.
