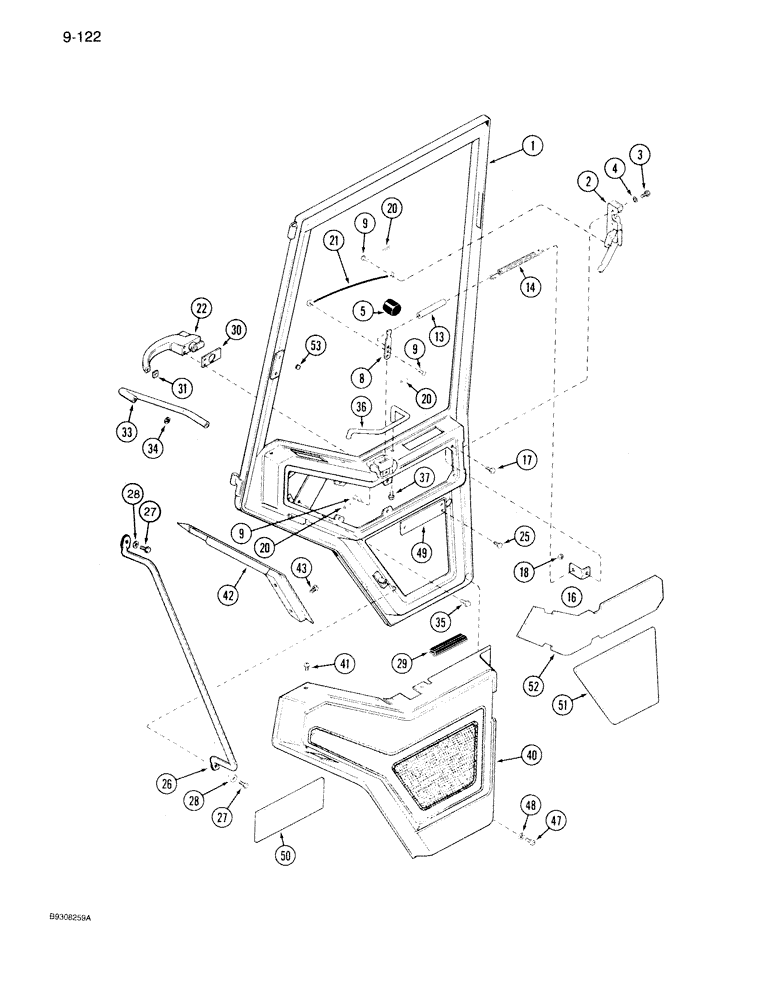

Запчасти Case IH 7150 (9-122) - CAB DOOR AND LATCH, CAB S/N JAB0052818 AND AFTER (09) - CHASSIS/ATTACHMENTS

A67967

DOOR ASSY.

DOOR ASSEMBLY trimmed, Includes: Ref. 1 thru 53 in this figure, and Ref. 1, 9, 12-15, 19 and 27, plus one each of Refs. 3 and 4 in Figure 9-124, and door glass in Figure 9-132

1шт.

1

1343890C1

DOOR

FRAME - cab door

1шт.

2

1977941C2

LATCH ASSY.

LATCH ASSEMBLY - door, rotary

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

4

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, LOCK, Ext-Int Tooth, 1/4"

3шт.

5

A177435

BALL KNOB

KNOB - lever

1шт.

8

97112C3

ARM

- latch, door

1шт.

9

439-148

HEADED PIN,6.35mm OD x 12.7mm L

PIN - clevis, 1/4 x 1/2 inch, mounting, arm

3шт.

13

1974835C1

TUBE

HOSE - spring damper

1шт.

14

97057C2

TENSION SPRING

SPRING - handle

1шт.

16

97218C1

BRACKET

- mounting, spring

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

20

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

3шт.

21

1340019C2

CABLE

- door

1шт.

22

1340149C2

HANDLE

- door, outer

1шт.

A77313

SET OF 2 KEYS

KEY ignition and door lock, set of 2, not included in door assembly, purchase separately, See Figure 4-002 Ref. 9

1шт.

25

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

3шт.

26

1987149C1

HANDLE

- grab, door

1шт.

27

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange lock, 5/16 NC x 3/4 inch

2шт.

28

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

29

1990761C1

DOOR SEAL

SEAL - door

1шт.

30

1974873C1

WASHER

GASKET - handle, door large

1шт.

31

1974872C1

WASHER

GASKET - handle, door small

1шт.

33

96840C1

HANDLE

- grab

1шт.

34

1283589C2

RUBBER WASHER

PAD - mounting, handle

2шт.

35

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange lock, 5/16 NC x 3/4 inch, grab handle

2шт.

36

1283690C1

ROD

- guard, handle

1шт.

37

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

40

97082C6

PANEL ASSY.

PANEL - door, Replaces: 97082C5, door panel covering may differ between models

1шт.

41

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - truss head tap, No. 10 x 3/4 inch, polyseal black

2шт.

41

1990951C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, #10 - 16 x 9/16"

SCREW - Phillips washer, No.10-16 x 5/8 inch grey

2шт.

42

96736C2

PANEL ASSY.

PANEL - trim, door

1шт.

43

97207C1

SELF-TAP SCREW,#10 - 24 x 3/4"

- tapping, No 10-24 x 3/4 inch black

3шт.

43

1990953C1

SELF-TAP SCREW

- Phillips washer, No. 10-24 x 1 inch grey

3шт.

47

261-4446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan head Phillips, No. 8 NC x 3/8 inch

1шт.

48

495-21019

WASHER,#8

1шт.

49

1283695C1

STIFFENER

REINFORCEMENT - door handle

1шт.

50

1977459C1

INSULATOR

SHEET - vibration dampening, 100 x 254 mm

3шт.

51

1977657C1

LINING

PAD - door, lower

1шт.

52

1977658C1

LINING

PAD - door, upper

1шт.

53

179093

HOLE PLUG BUTTON,9/32"

1шт.
