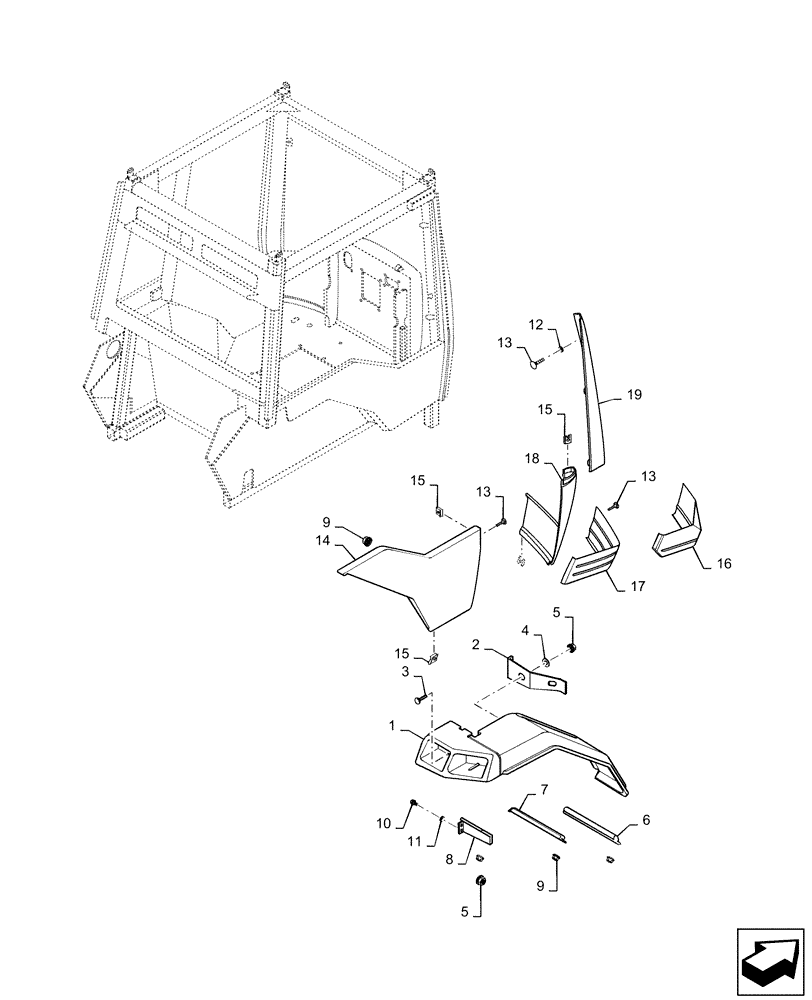

Запчасти Case IH 7150 (9-114) - RIGHT REAR FENDER AND PANELS (09) - CHASSIS/ATTACHMENTS

1

97004C2

FENDER

ASSEMBLY RH, Replaces: 97004C1

1шт.

2

1283847C1

SUPPORT

BRACKET Rear Support

1шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

4

495-21038

WASHER,5/16"

Flat, 3/8 x 7/8 x 5/64"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Hex Flange Sefl-Locking

4шт.

6

1990670C1

SUPPORT

Fender, Lower RH, Replaces: 96949C1

1шт.

7

1990671C1

SUPPORT

Fender, Upper RH, Replaces: 96950C1

1шт.

8

1990672C1

SUPPORT

Fender, RH Front, Replaces: 1283793C1

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

1348499C1

SCREW,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Dog Pt

BOLT Hex Flange Lock

1шт.

11

1990583C1

WASHER

Fender Mounting

1шт.

12

495-31016

WASHER,#6

2шт.

13

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

14

96702C2

PANEL ASSY.

Side, RH

1шт.

15

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U

1шт.

16

96765C1

PANEL ASSY.

RH Front Lower Cab, One Horizontal Rib

1шт.

17

1348226C1

PANEL ASSY.

RH Front Lower Cab, Two Horizontal Ribs

1шт.

18

96710C1

COVER ASSY

Post, Lower RH, Cab Only

1шт.

19

96703C1

COVER ASSY

Post, Upper RH, Cab Only

1шт.
