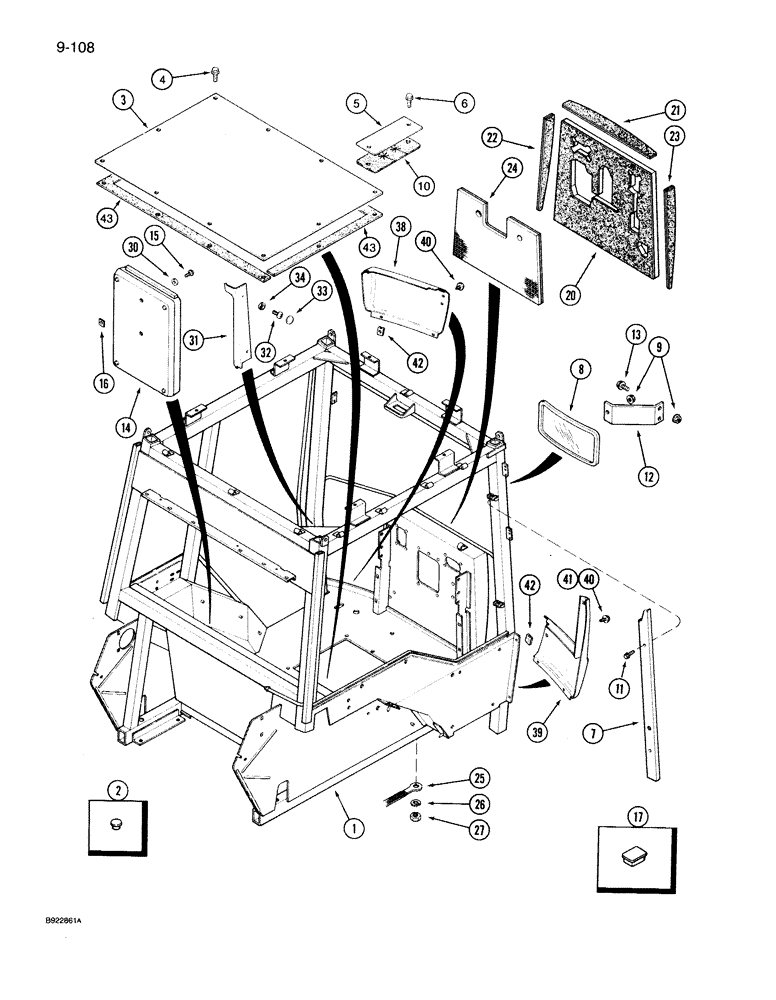

Запчасти Case IH 7150 (9-108) - FOUR POST ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1

1344306C4

CHASSIS

FRAME, Protective, ROPS; Some Frames May or Mary Not Have Lift Eyes

1шт.

2

353-405

PLUG,Dome, .562" hole, Nylon

Plastic, 9/16 inch Diameter

3шт.

3

96964C1

PLATE ASSY.

PLATE, Floor Access

1шт.

4

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT, Hex Flange, 5/16 NC x 3/4 inch, Replaces: 121-106 1/2 inch Bolt

10шт.

5

96951C1

PLATE ASSY.

PLATE, Implement Cable

1шт.

6

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

2шт.

7

97093C3

COVER ASSY

COVER, Post, Upper Right

1шт.

8

A177462

MIRROR

Rear View

1шт.

9

1330064C1

FLANGE NUT

Hex Flange, 5/16 inch NC

3шт.

10

A165354

SEAL

Plate

1шт.

11

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, Cross Slotted Truss Head, Polyseal

2шт.

12

96845C1

BRACKET

Mirror

1шт.

13

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT, Hex Flange, 5/16 NC x 3/4 inch

2шт.

14

97079C2

BOX

Operators Manual

1шт.

15

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, Pan Head, No. 10-16 x 1/2 inch

2шт.

16

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel Type

2шт.

17

97028C1

PLUG

Post, Right

1шт.

20

1334281C3

INSULATOR

PAD, Insulation, Firewall, Front

1шт.

21

1334282C2

INSULATOR

PAD, Insulation, Top

1шт.

22

1334283C2

INSULATOR

PAD, Insulation, Firewall, Left

1шт.

23

1334284C2

INSULATOR

PAD, Insulation, Firewall, Right

1шт.

24

97027C1

PAD

Firewall

1шт.

25

91963C1

GROUND STRAP

STRAP, Ground

1шт.

26

892-11010

LOCK WASHER,M10

1шт.

27

825-1410

NUT,M10, Cl 8

1шт.

30

495-31022

WASHER,#10

2шт.

31

96720C2

COVER ASSY

COVER, Lower Front, Left Post, If Equipped

1шт.

32

97207C1

SELF-TAP SCREW,#10 - 24 x 3/4"

Tapping, Retainer, If Equipped

2шт.

33

97280C1

CAP

Trim, If Equipped

2шт.

34

97279C1

RETAINER

Cap, If Equipped

2шт.

38

1977382C1

COVER ASSY

COVER, Lower Post, Left

1шт.

39

1977383C1

COVER ASSY

COVER, Lower Post, Right

1шт.

40

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING, Truss Head Cross Recess, No. 10-16 x 5/8"

5шт.

41

1977385C1

SELF-TAP SCREW

Cross Slotted Polyseal, 1-1/4 inch Tapping

1шт.

42

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel Type

5шт.

43

1971260C1

SEAL

SEAL, Floor Access Plate

2шт.
