Запчасти Case IH 7150 (9-090) - AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT, P.I.N. JJA0028200 AND AFTER (09) - CHASSIS/ATTACHMENTS

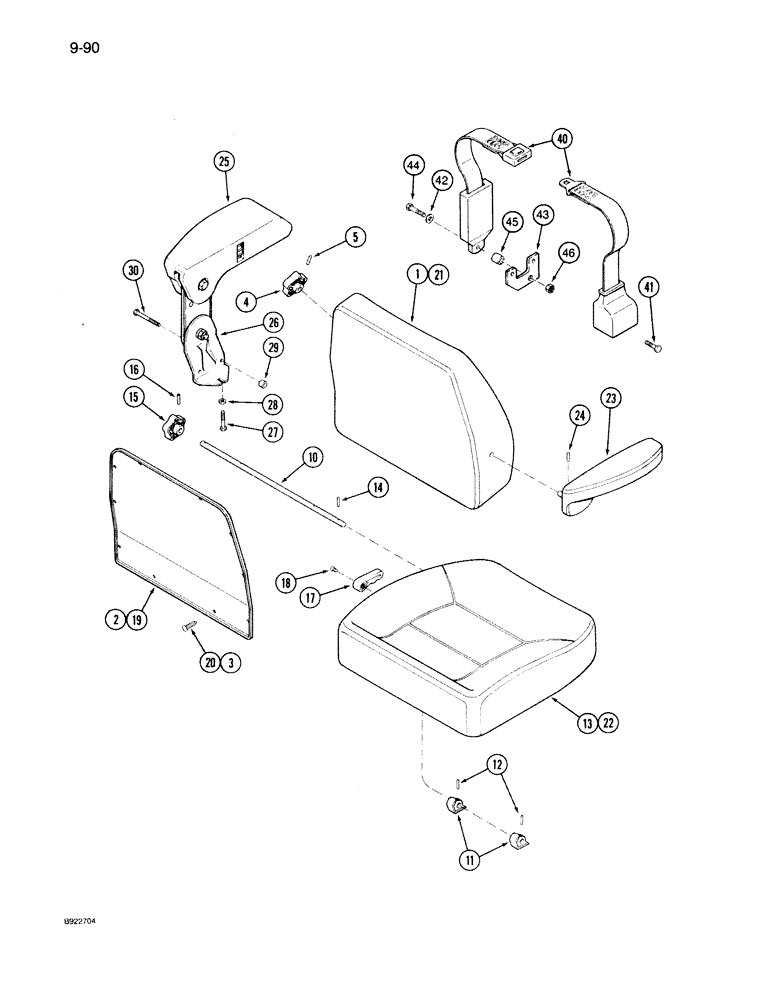

Схема запчастей Case IH 7150 - (9-090) - AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT, P.I.N. JJA0028200 AND AFTER (09) - CHASSIS/ATTACHMENTS
46
23
20
24
2
16
22
1
3
4
5
42
25
11
21
43
41
15
29
45
14
30
27
10
26
17
12
19
13
44
40
18
28

Артикул

Название

Примечание

Количество

1987214C4

SEAT ASSY.

SEAT ASSEMBLY - air suspension, without brackets, Replaces: 1987214C3, no longer available, order 1999936C1 seat assembly in Figure 9-099A, Includes: Refs. 1 thru 29

1шт.

1344004C3

SEAT ASSY.

CUSHION KIT - seat and backrest, Replaces: 1344004C2, Includes: Refs. 1 thru 18

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - backrest Order 1974713C2 kit, Ref. 19

1шт.

3

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

4

1981828C1

BUTTON

KNOB - lumbar, included in 1999691C1 kit, Figure 9-092

1шт.

5

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , In 1999691C1 kit, Figure 9-092 5/32" x 1", Slotted

1шт.

1987286C2

CUSHION, SEAT

KIT - seat cushion, Includes: seat tilt cam shaft assembly and Refs. 10 thru 18

1шт.

1343847C2

SHAFT ASSY.

SHAFT ASSEMBLY - cam, seat tilt, Includes: Ref. 10 thru 12

1шт.

Used for service only on 460 mm wide seats prior to seat S/N 688971 and 500 mm wide seats prior to seat S/N 683824. 1343847C2 is not used for service on other seats.

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - cam

1шт.

11

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

12

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

13

NSS

NOT SOLD SEPARAT

KIT - seat cushion

1шт.

14

138-85

LOCK PIN,5/32" x 2", Slotted

PIN, , No longer in kit, order separately 5/32" x 2", Slotted

1шт.

15

1981826C1

KNOB

- seat tilt, included in 1999691C1 kit, Figure 9-092

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , In 1999691C1 kit, Figure 9-092 5/32" x 1", Slotted

1шт.

1987212C1

PACKAGE

KIT - seat knob, backrest tilt, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

LEVER - backrest tilt

1шт.

18

NSS

NOT SOLD SEPARAT

SCREW - machine, oval head cross recess, 6 x 12 mm

1шт.

1974713C2

PACKAGE

KIT - seat cover, back Replaces: 1974713C1, Includes: Refs. 19-20

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - backrest

1шт.

20

1999693C1

KIT

- clip, retaining bag of 12 Replaces: 1974722C1

1шт.

1974702C2

PACKAGE,SERVICE

KIT - backrest cushion Replaces: 1974702C1, Includes: Ref. 21 and hog ring

1шт.

21

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

44шт.

1974701C2

CUSHION, SEAT

KIT - seat cushion, Replaces: 1974701C1, Includes: Ref. 22 and hog ring

1шт.

22

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

48шт.

1990640C1

ARMREST

KIT - armrest, right-hand, gray, no longer available, order 1974703C2 black armrest kit

1шт.

1974703C2

ARMREST ASSY.

KIT - armrest, right-hand, black, Includes: Refs. 23-24

1шт.

23

NSS

NOT SOLD SEPARAT

ARMREST - right-hand

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

25

1990639C1

ARMREST

KIT - armrest, left-hand, grey, no longer available, order 1974704C1 black armrest kit

1шт.

25

1974704C1

ARMREST

KIT - armrest, left-hand, black

1шт.

26

107398A1

ARMREST

KIT - armrest, grey, left-hand, includes adjusting mechanism, Replaces: 1990638C1

1шт.

107399A1

SET OF PARTS

KIT - service, adjustable armrest, includes wheel, cable, hub, and hardware, not shown

1шт.

107399A1, THUMB WHEEL IS NSS

1шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, Replaces 413-532

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

1шт.

29

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

1344158C1

SET

KIT - seat belt, order components, Includes: Ref. 30 thru 46

1шт.

30

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch, Replaces 413-548

2шт.

40

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

41

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

42

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

43

1975957C1

BRACKET

- seat belt, left-hand

1шт.

44

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

1шт.

45

S5375

SPACER,3/8" Pipe x 3/8"

- 3/8 x 3/8 inch

1шт.

46

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex, self-locking, 7/16 inch NC

1шт.
