Запчасти Case IH 7150 (9-072) - SEAT ADJUSTER, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

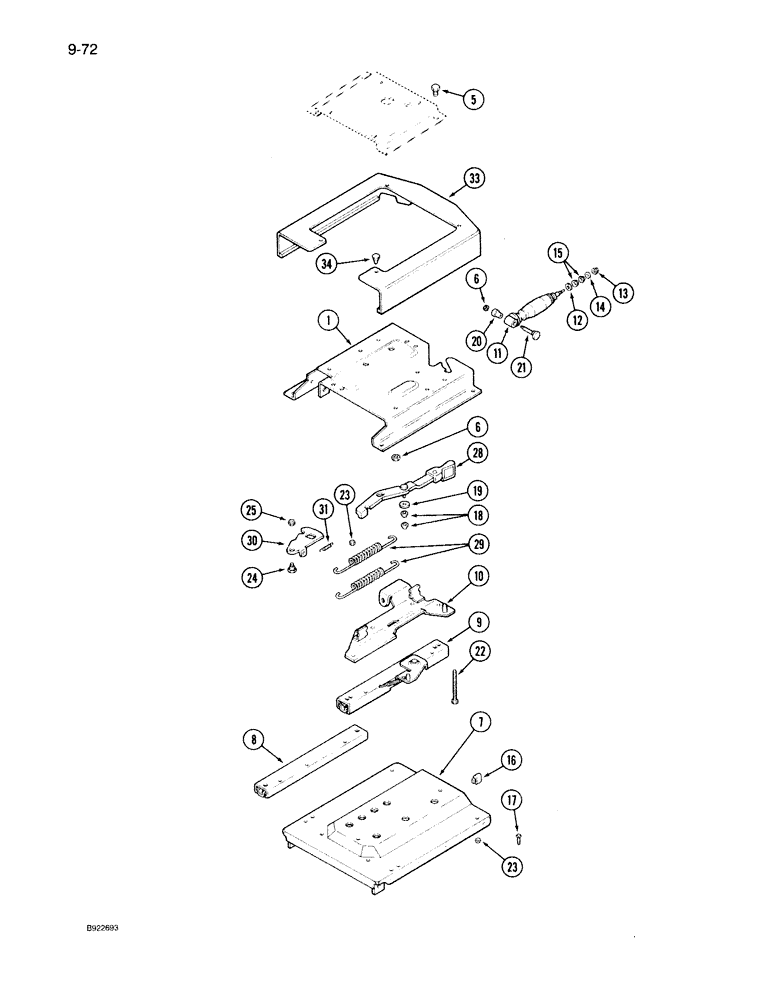

Схема запчастей Case IH 7150 - (9-072) - SEAT ADJUSTER, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
24
20
28
19
29
23
30
15
9
34
7
8
6
23
22
31
13
6
1
14
17
25
18
11
12
10
33
5
16
21

Артикул

Название

Примечание

Количество

1954440C5

SEAT

ASSEMBLY - operator, air/oil, Replaces: 1954440C4, no longer available, order 1999936C1 seat assembly on Figure 9-099A, Includes: Ref. 1-34

1шт.

1

A49820

PLATE ASSY.

PLATE - top

1шт.

5

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

7

A49539

CLIP

HOUSING - isolator, upper

1шт.

8

1974733C1

SLIDE

ASSEMBLY - isolator

2шт.

Ref # 1974733C1 should only sub to one 245997C1

1шт.

9

1974664C1

SLIDE

ASSEMBLY - isolator with latch

1шт.

10

A49819

BRACKET

- mounting, shock absorber

1шт.

11

1990646C1

SHOCK ABSORBER

- isolator, Replaces: A49543, no longer available, order 1990646C3 kit in Figure 9-094 or 9-099G

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

13

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

14

A49678

WASHER

- flat, 1 inch

1шт.

15

A49679

BUSHING

- bumper

2шт.

16

A49549

INSULATOR BLOCK

BUMPER - isolator

2шт.

17

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

6шт.

18

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT - push, 1/4 x 17/32 inch

2шт.

19

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

1шт.

20

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

21

A45056

STEP BOLT

BOLT - shock

1шт.

22

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

6шт.

23

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

12шт.

24

A49546

BOLT

- shoulder

1шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

28

1974726C1

LEVER

ASSEMBLY - isolator

1шт.

29

A49823

SPRING

- shock absorber

1шт.

30

A49547

LATCH

- isolator

1шт.

31

A49548

SPRING

- latch

1шт.

33

A49816

CABLE ASSY.

SHROUD - isolator

1шт.

34

A49622

CLIP

- retaining

4шт.

Выбрано товаров: 30
