Запчасти Case IH 7150 (9-062) - CAB CONTROL CONSOLE, 96996C3 TRANSMISSION AND HITCH COVER (09) - CHASSIS/ATTACHMENTS

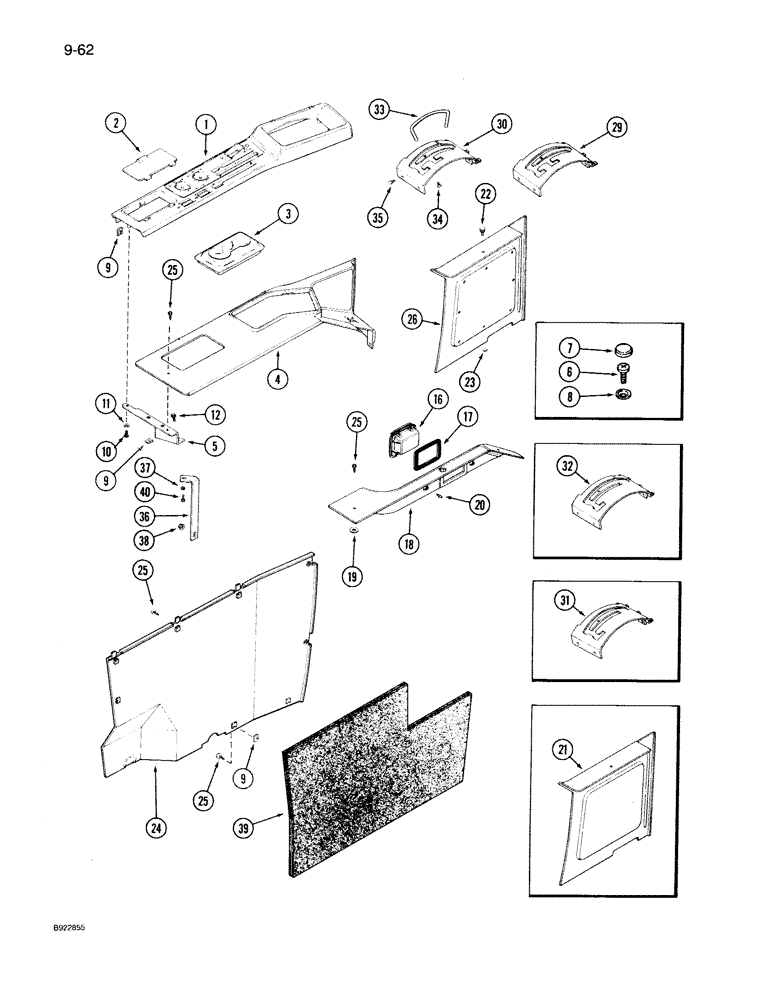

Схема запчастей Case IH 7150 - (9-062) - CAB CONTROL CONSOLE, 96996C3 TRANSMISSION AND HITCH COVER (09) - CHASSIS/ATTACHMENTS
25
31
2
22
17
26
32
12
25
30
19
23
38
33
25
24
29
9
34
1
6
21
36
40
4
25
3
11
5
10
7
9
20
16
37
18
35
8
39
9

Артикул

Название

Примечание

Количество

1

96996C3

COVER ASSY

COVER - transmission and hitch control, Replaces: 96996C2

1шт.

REF. 1 PART NUMBER FOR THE AMBER LENS THAT GOES INTO THE TOP OF THIS HOUSING IS 96998C1. THE RETAINER THAT HOLDS THE RETAINER IN IS PART NUMBER 1283150C1.

1шт.

2

96730C3

DOOR

- hitch operation

1шт.

REF. 2 - WITHOUT THE DECAL THIS IS P/N 1977590C1

1шт.

3

1344244C1

TRAY

- utility

1шт.

REF. 3 - CAP HOLDER IS P/N 1344244C1

1шт.

245918C1

LENS

PLUG - blanking, Rocker Switch, Not Shown

1шт.

4

96724C3

COVER

- remote

1шт.

5

96899C1

BRACKET

- cover support

1шт.

6

1270762C1

SELF-TAP SCREW

- pan head special, If equipped

1шт.

7

97280C1

CAP

- trim, If equipped

1шт.

8

97279C1

RETAINER

- cap, If equipped

1шт.

9

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

1шт.

10

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan head Phillips, No. 10 NF x 1/2 inch

10шт.

11

495-31022

WASHER,#10

10шт.

12

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 x 20 mm, polyseal

2шт.

16

97000C1

ASH TRAY

TRAY - ash receiver

1шт.

17

97042C1

GASKET

- ash tray

1шт.

18

96723C2

PANEL ASSY.

PANEL - corner

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16 x 7/64") 1/2", SAE

1шт.

20

1958720C1

STUD

- panel retaining

2шт.

21

97081C7

PANEL

ASSEMBLY - cover, lower front, If equipped

1шт.

22

96956C2

BUTTON

KNOB - cover panel retaining

1шт.

23

1971363C1

RETAINER

- bolt

1шт.

24

1987285C1

PANEL

- console, Replaces: 1340317C1

1шт.

25

1975919C1

SELF-TAP SCREW

- cross slotted truss, polyseal, Black

1шт.

25

1990952C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, M16 x 1 x 25.4mm

SCREW - cross slotted truss, polyseal, Grey

1шт.

26

1990565C1

PANEL ASSY.

PANEL ASSEMBLY - operator manual

1шт.

29

1981941C3

LARGE PLATE

PLATE ASSEMBLY - shift selector, 4-speed reverse, Without creeper, Replaces: 1981941C2

1шт.

30

1981942C4

LARGE PLATE

PLATE ASSEMBLY - shift selector, 4-speed reverse, With creeper, Replaces: 1981942C3

1шт.

31

96577C5

PANEL

PLATE ASSEMBLY - shift selector, 2-speed reverse, Without creeper

1шт.

32

97065C6

SECTOR

PLATE ASSEMBLY - shift selector, 2-speed reverse, With creeper, if equipped

1шт.

33

96578C4

ROD

- rest, shift selector

1шт.

34

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

35

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

36

1974696C1

BRACKET

- console support

1шт.

37

495-31022

WASHER,#10

1шт.

38

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm, class 10.9

1шт.

39

1977667C1

PAD

- console, right

1шт.

40

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- pan head, No. 10-32 x 3/8 inch

1шт.

Выбрано товаров: 40
