Запчасти Case IH 7150 (9-032) - FRONT END WEIGHT AND FRAME, 18 AND 22 WEIGHT ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

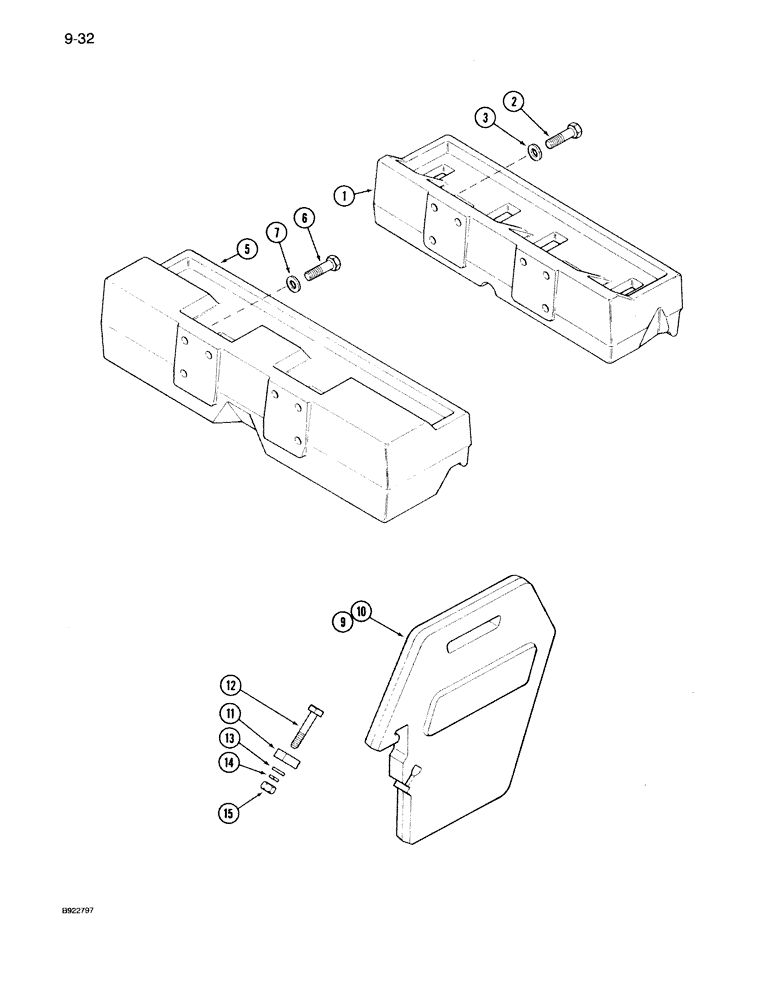

Схема запчастей Case IH 7150 - (9-032) - FRONT END WEIGHT AND FRAME, 18 AND 22 WEIGHT ATTACHMENTS (09) - CHASSIS/ATTACHMENTS
5
10
13
7
11
9
15
1
2
14
3
12
6

Артикул

Название

Примечание

Количество

A67680

ATTACHMENT

FRAME ATTACHMENT - front, 18-weight, Machinery Item, Includes: Refs. 1-3

1шт.

1

1342125C2

SUPPORT

FRAME - front weight, Maximum of 18 weights

1шт.

2

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 x 65 mm, class 10.9

6шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

6шт.

A67681

ATTACHMENT

FRAME ATTACHMENT - front, 22-weight, Machinery Item, Includes: Refs. 5-7

1шт.

5

1342127C2

SUPPORT

FRAME - front weight, Maximum of 22 weights

1шт.

6

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 x 65 mm, class 10.9

6шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

6шт.

1348233C1

WEIGHT

ATTACHMENT - front end, 6 weights, Machinery Item, Replaces: A67893, Includes: Ref. 9

1шт.

9

1347524C1

WEIGHT

- front end, 100 lbs., Machinery Item

6шт.

A67894

ATTACHMENT

WEIGHT ATTACHMENT - front end, 22 weights, Machinery Item, Includes: Ref. 10

1шт.

10

1347524C1

WEIGHT

- front end, 100 lbs., Machinery Item

22шт.

A67919

ATTACHMENT

HARDWARE KIT - front weight, Machinery Item, One kit required for every 6 weights, Includes: Refs. 11-15

1шт.

11

1978431C1

CLAMP

- weight

3шт.

12

A169139

SQUARE BOLT

- square head, 1/2 NC x 3-1/4 inch

3шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

A181351

ROD

to hold weights together

1шт.

A181354

BLOCK

to hold weights together

2шт.

195-541

WASHER,5/8", SAE

to hold weights together 5/8", SAE

1шт.

129-107

NUT,5/8"-11, G5

To hold weights together 5/8"-11, G5

1шт.

239385A3

SUPPORT

FRAME front weight

1шт.

The new front weight bracket, used on the 8900 series, can be used on the 7100 and 7200. The new bracket is extended forward 9 in. allowing the use of 22 front weights on the 7100 and 7200 tractors.

1шт.

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

The new front weight bracket, used on the 8900 series, can be used on the 7100 and 7200. The new bracket is extended forward 9 in. allowing the use of 22 front weights on the 7100 and 7200 tractors.

1шт.

Do not use bolts from old weight bracket.

1шт.

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

The new front weight bracket, used on the 8900 series, can be used on the 7100 and 7200. The new bracket is extended forward 9 in. allowing the use of 22 front weights on the 7100 and 7200 tractors.

1шт.

Выбрано товаров: 29
