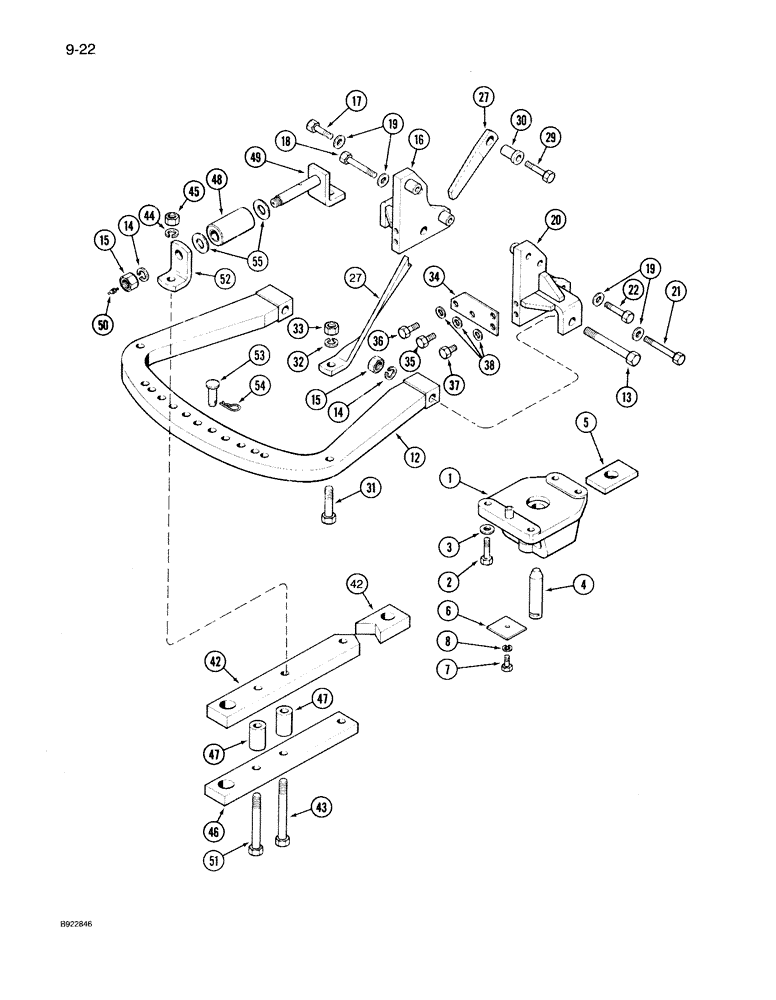

Запчасти Case IH 7150 (9-022) - DRAWBAR, WITHOUT HITCH, PRIOR TO P.I.N. JJA0023395 (09) - CHASSIS/ATTACHMENTS

1

142619C3

SUPPORT ASSY.

SUPPORT - pivot, drawbar

1шт.

2

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

3

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

4

224618C1

PIN,34.87mm OD x 150mm L

- drawbar pivot

1шт.

5

1331986C1

SPACER

- drawbar pivot

1шт.

6

67828C1

RETAINER

- drawbar pin

1шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 x 30 mm, class 10.9

1шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

12

145265C2

SUPPORT

- drawbar

1шт.

13

828-24170

BOLT,Hex, M24 x 3 x 170mm, Cl 10.9

2шт.

14

892-12024

LOCK WASHER,M24

WASHER - lock, 24 mm

3шт.

15

829-1324

NUT

- hex, 24 mm, class 10.0

3шт.

16

145197C2

BRACKET

- drawbar, left

1шт.

17

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

1шт.

18

813-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

- hex, 16 x 100 mm

2шт.

19

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- hardened, 21/32 x 1-1/2 x 3/16 inch

6шт.

20

145200C2

BRACKET

- drawbar, right

1шт.

21

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

22

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

- hex, 16 x 75 mm

1шт.

27

145205C1

SUPPORT ASSY.

SUPPORT - drawbar, left

1шт.

27

145207C1

SUPPORT ASSY.

SUPPORT - drawbar, right, Shown

1шт.

29

813-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

2шт.

30

145204C1

BUSHING

- drawbar support

2шт.

31

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

- hex, 20 x 90 mm, class 10.9

2шт.

32

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

2шт.

33

829-1320

NUT,M20, Cl 10

- hex, 20 mm, class 10.9

2шт.

34

1286756C1

PLATE ASSY.

PLATE - support

2шт.

35

30269R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9

- hex, 16 x 35 mm, class 10.9

2шт.

36

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

37

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

38

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

42

1331946C1

DRAWBAR

- swinging

1шт.

43

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

- hex, 22 x 190 mm, class 10.9

2шт.

44

892-12022

LOCK WASHER,M22

WASHER - lock, 22 mm

3шт.

45

829-1322

NUT,M22 x 2.5, Cl 10

- hex, 22 mm

3шт.

46

1331945C1

STRAP

- drawbar guide

1шт.

47

1331944C1

SPACER

- drawbar guide

3шт.

48

145262C3

ROLLER

- drawbar

1шт.

49

1252199C1

SHAFT

- drawbar roller

1шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch straight

1шт.

51

828-22170

BOLT,Hex, M22 x 2.5 x 170mm, Cl 10.9

- hex, 22 x 170 mm, class 10.9

1шт.

52

145260C1

BRACKET

- shaft rear

1шт.

53

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN - headed, 3/4 x 2-3/4 inch

2шт.

54

486830R1

COTTER PIN

PIN - hair

2шт.

55

391870R1

WASHER

- retaining

2шт.
