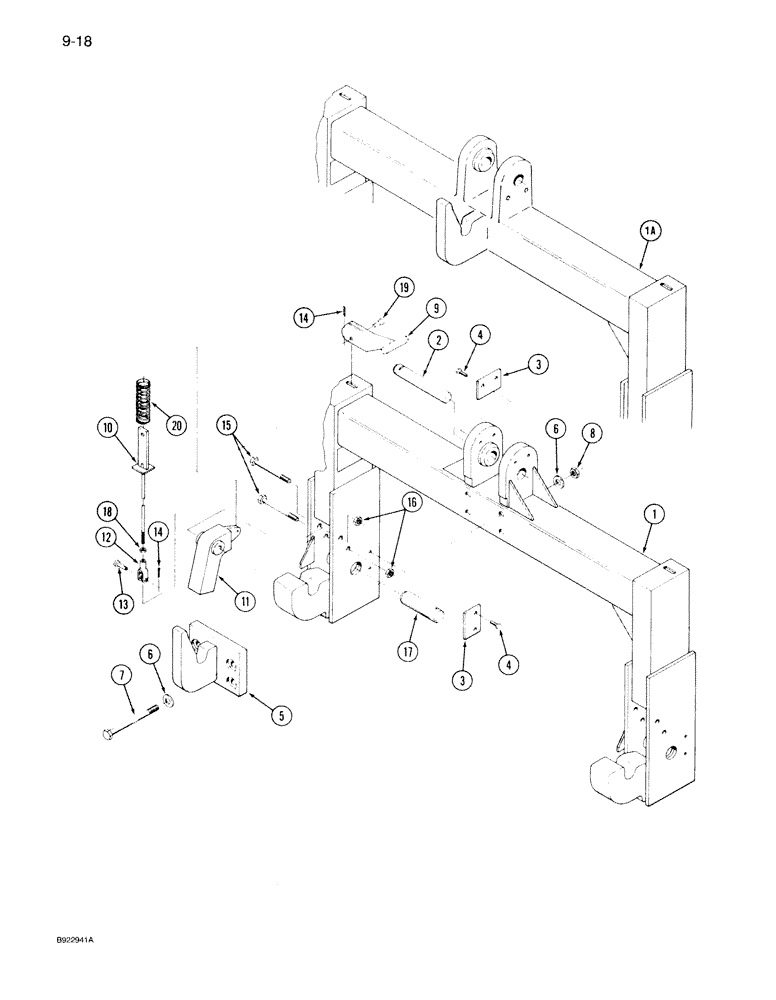

Запчасти Case IH 7150 (9-018) - QUICK HITCH COUPLER, CATEGORY III, IF EQUIPPED, 1348143C3 HITCH COUPLER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1348143C3

ATTACHMENT

COUPLER - hitch attachment, Replaces: 1348143C1 and 1348143C2, Includes: Refs. 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - coupler, used with Refs. 5-8

1шт.

1a

NSS

NOT SOLD SEPARAT

FRAME - coupler, used without Refs. 5-8

1шт.

2

70-4256T1

PIN

- center link mounting, used with Ref. 1, frame

1шт.

2

70-6452T1

PIN

- center link mounting, used with Ref. 1A, frame

1шт.

3

70-3082T2

LARGE PLATE

BLOCK - pin retaining

3шт.

4

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

6шт.

5

70-4317T2

HOOK

- quick attachment, if used

1шт.

6

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, if used

8шт.

7

9430319

SCREW,7/8" - 9 x 6 1/2"

BOLT - hex, 7/8 UNC x 6-1/2 inch grade 8, if used

4шт.

8

232-41114

LOCK NUT,7/8"-9, GC

NUT, LOCK, , If used 7/8"-9, GC

4шт.

9

70-4320T1

HANDLE

- hitch release

2шт.

10

70-4324T1

THREADED ROD

LINK - hitch release

2шт.

11

70-6310T1

TRIGGER

CATCH - hitch release, Replaces: 70-4328T1

2шт.

12

19-139

YOKE

- clevis

2шт.

13

19-145

CLEVIS PIN,3/8" x 1.06"

PIN - clevis, 3/8 x 1-1/16 inch

2шт.

14

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

4шт.

15

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

4шт.

16

19-222

LOCK NUT,5/8" - 11, GB

NUT - hex lock, 5/8 inch NC

4шт.

17

70-4293T1

PIN,36.5mm OD x 125.73mm L

- lower hitch

2шт.

18

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

2шт.

19

19-5423

CLEVIS PIN

3/8 x 7/8"

2шт.

20

70-4340T1

COMPRESSION SPRING

2шт.

21

321-3339

DECAL

- Warning, be certain both latches are fully engaged, implement lift pins, not shown, see Figure 9-162

1шт.
