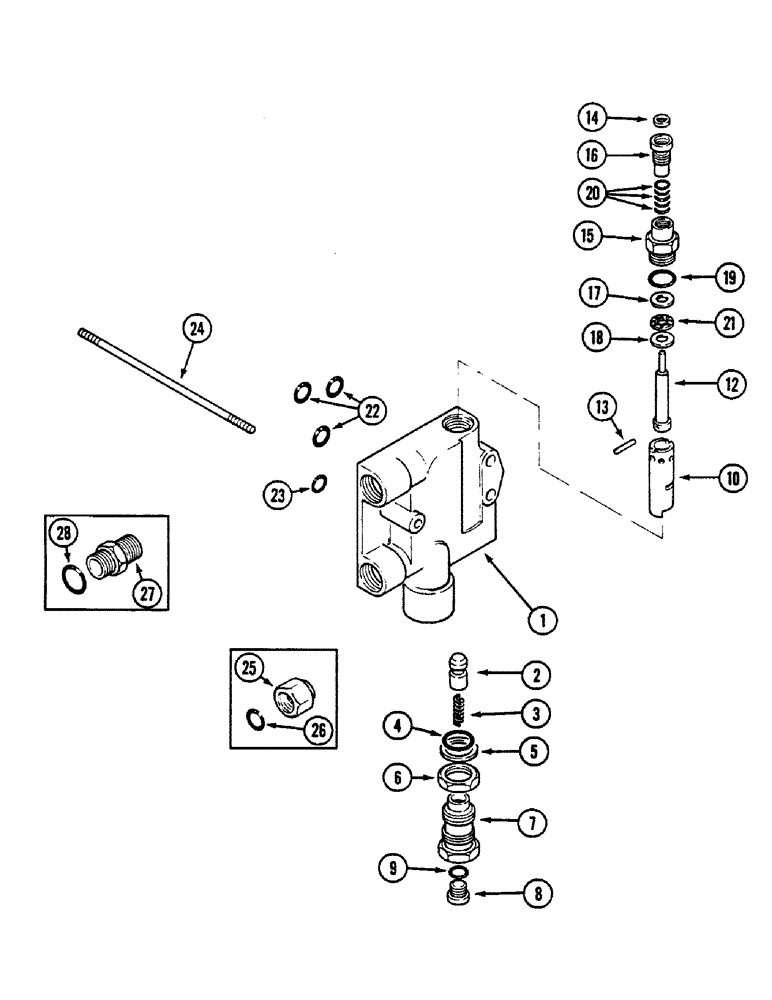

Запчасти Case IH 7150 (8-087) - HYDRAULIC REMOTE VALVE ASSEMBLY, POWER BEYOND (08) - HYDRAULICS

1543361C1

KIT

Incl 1 - 28

1шт.

1994575C2

VALVE

ASSY., Incl 1 - 21

1шт.

1

1994576C1

VALVE BODY

1шт.

2

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

3

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

1994699C1

PLUG

ASSY. Incl 4 - 9

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

1543357C1

WASHER

1шт.

6

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

7

1542500C1

BODY

1шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl 9

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

1994577C1

SLEEVE VALVE

1шт.

1343791C2

SET OF PARTS

KIT, Flow Control Adjusting, Incl 12 - 21 and Instructions

1шт.

1343735C2

VALVE

CONTROL ASSY., Incl 12 - 21

1шт.

12

1980302C1

ROD

ASSEMBLY

1шт.

13

138-56

LOCK PIN,1/8" x 11/16", Slotted

1шт.

14

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

15

1980226C1

PLUG

1шт.

16

1980227C1

NUT

1шт.

17

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

1шт.

18

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

5шт.

21

F13537

THRUST BEARING

1шт.

22

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

23

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

24

1994612C1

STUD

M12 x 225, Power Beyond

2шт.

24

1994613C1

STUD

M12 x 268, Power Beyond

2шт.

24

1986938C1

STUD

M12 x 312, Power Beyond

2шт.

25

201-900

CAP,11/16" - 16 ORFS

Power Beyond, Incl 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Power Beyond

1шт.

27

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Power Beyond, Incl 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Power Beyond

1шт.
