Запчасти Case IH 7150 (8-078) - FOURTH CIRCUIT REMOTE HYDRAULICS, PRIOR TO TRANSMISSION S/N AJB0018756 (08) - HYDRAULICS

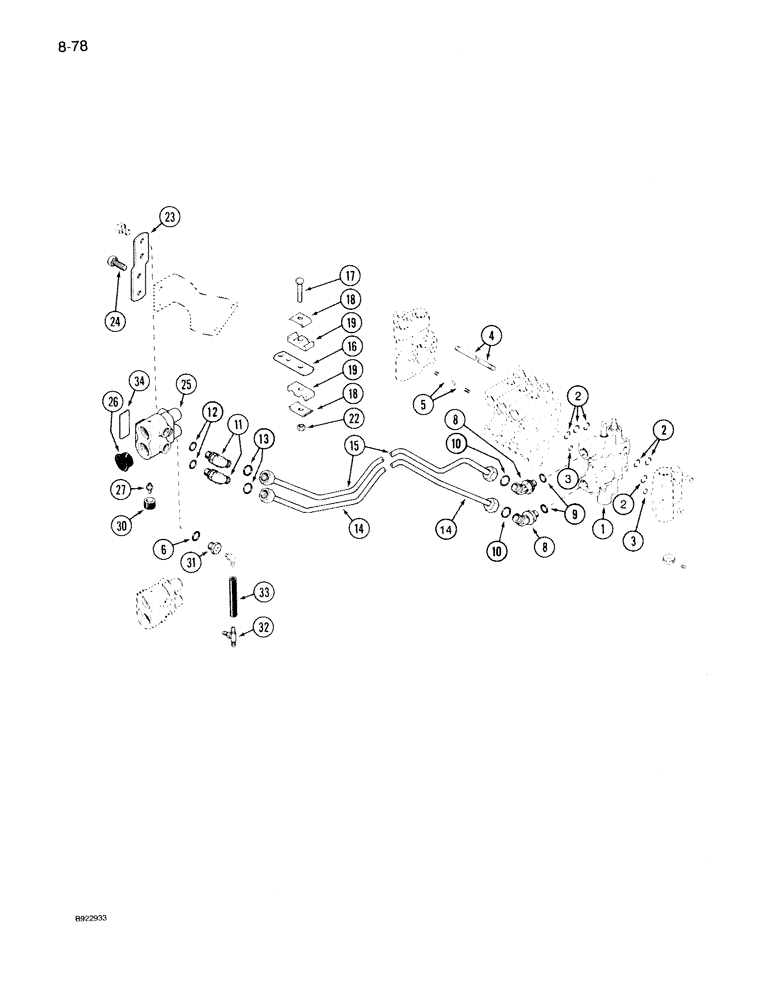

Схема запчастей Case IH 7150 - (8-078) - FOURTH CIRCUIT REMOTE HYDRAULICS, PRIOR TO TRANSMISSION S/N AJB0018756 (08) - HYDRAULICS
31
15
10
3
25
1
10
8
22
5
14
2
6
27
18
4
16
19
9
12
19
13
17
23
33
2
11
18
32
8
30
14
3
26
34
24
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - fourth remote, See Figures 8-064 - 8-066

1шт.

2

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- seal, valve

6шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

Seal, valve -112, 90 Duro, .487" ID x .103" Thk

2шт.

4

1334614C1

STUD

- valve, 12 x 320 mm, class 10.9

2шт.

5

1334613C1

STUD

- valve, 10 x 320 mm, class 10.9

1шт.

8

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45° adjustable, 7/8 x 1 inch thread, Includes: Ref. 9-10

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

11

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90° adjustable, 7/8 x 1 inch thread, Includes: Ref. 12-13

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

14

1289150C1

HYD TUBE

TUBE - raise, valve

1шт.

15

1289149C1

HYD TUBE

TUBE - drop, valve

1шт.

16

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

17

30011R1

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

- hex, 8 x 65 mm, class 10.9

1шт.

18

486004R1

CLAMP

- tube

2шт.

19

224968C2

STRIP

- isomount, tube

2шт.

22

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm, class 10.9

1шт.

23

120012C1

SUPPORT

- coupler

1шт.

24

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 25 mm, class 10.9

2шт.

25

REF

INSTRUCTION

COUPLER ASSEMBLY - quick, See Figure 8-068

2шт.

26

1954126C1

PLUG

CAP - dust, coupler

2шт.

27

1272765C1

FITTING,1/8" - 27 NPT

- drain, coupler

1шт.

30

1272764C1

SEAL

SEAL - drain

1шт.

31

1334586C1

PLUG

- drain coupler

1шт.

32

1289480C1

TEE

- hose, 1/8 PT x 1/4 x 1/4 inch barbed end

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - drain, elbow to tee, 115 mm

1шт.

Order: 427683C2 and cut to length.

1шт.

34

1334584C3

DECAL

- coupler, shown on Figure 9-158

1шт.

Выбрано товаров: 29
