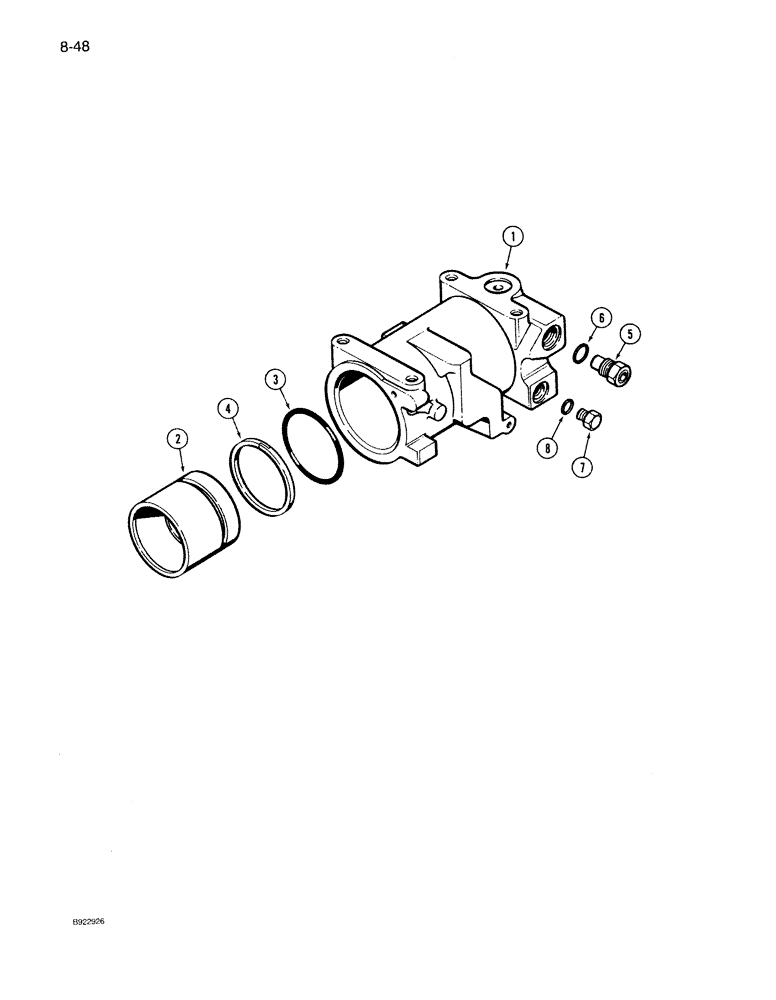

Запчасти Case IH 7150 (8-048) - HITCH CONTROL CYLINDER ASSEMBLY (08) - HYDRAULICS

93005C2

CYLINDER ASSY.,120.73mm Bore Dia

CYLINDER ASSEMBLY - control, hitch, Includes: Ref. 1 thru 8

1шт.

1

1289125C2

HOUSING

- cylinder

1шт.

See Fig. 2-90 for piston kit

1шт.

2

397229R1

PISTON

- cylinder

1шт.

3

238-6348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 6, 90 Duro

1шт.

4

382605R2

WASHER

- piston

1шт.

5

1266861C92

VALVE

ASSEMBLY - relief

1шт.

6

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

7

214389

PLUG,3/4" - 16 ORB

Includes Ref. 8 Hex Hd, 3/4"-16 ORB

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
