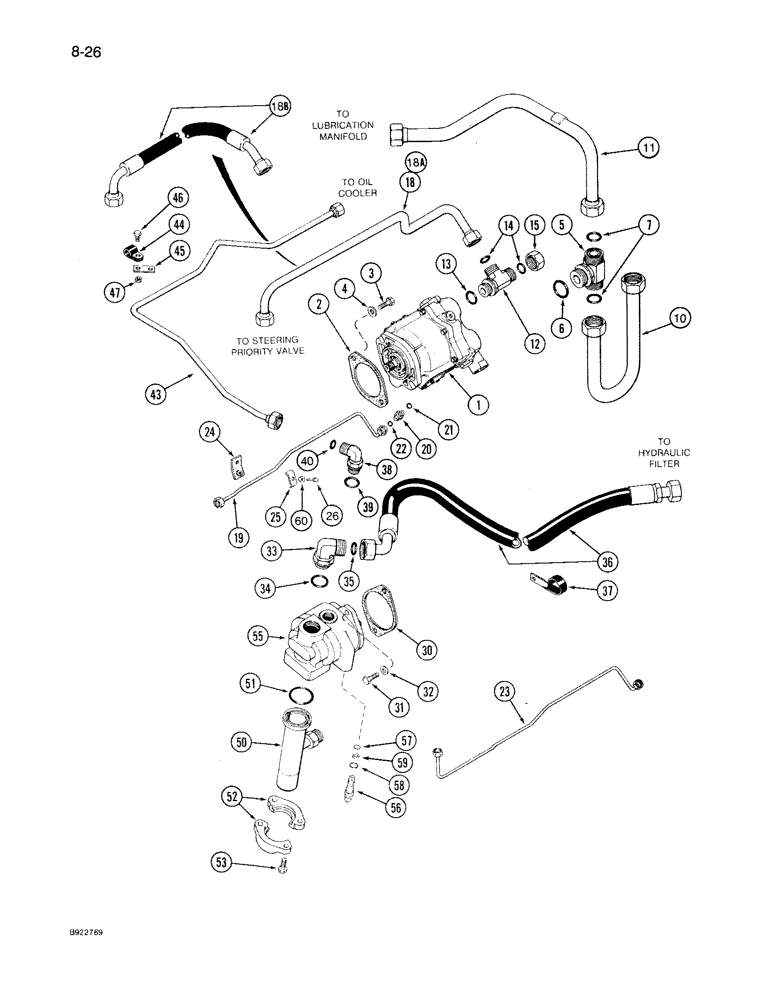

Запчасти Case IH 7150 (8-026) - HYDRAULIC PUMP SYSTEM, PRIOR TO TRANSMISSION S/N AJB0044915 (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston, hydraulic, See Figures 8-034 - 8-038

1шт.

2

144169C2

GASKET,0.79mm Thk

- mounting, pump

1шт.

3

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

2шт.

4

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

5

201-405

TEE,2"-12 x 1 7/8"-12 Br, ORFS

ASSEMBLY - adjustable, 1-7/8 x 2 x 2 inch thread, Includes: Ref. 6-7

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end -025, 90 Duro, 1.176" ID x .070" Thk

2шт.

10

1289163C1

HYD TUBE,1.5" OD, 331, 149.1 mm Length

TUBE - inlet, pump

1шт.

11

1289162C2

HYD TUBE

TUBE - lube, manifold

1шт.

12

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

ASSEMBLY - adj, 1-5/16 x 1-7/16 x 1-7/16 inch thread, Includes: Ref. 13-14

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

2шт.

15

201-901

CAP,1 7/16"-12 ORFS

- tube, 1-7/16 inch thread

1шт.

18

1334571C1

HYD TUBE

TUBE - 770 mm long, supply, priority valve

1шт.

18a

1340680C1

HYD TUBE,1" Diameter, 689 mm Length

TUBE - 689 mm long, supply, priority valve, no longer used, order 102935A1 hose, Ref. 18B

1шт.

Used on models with transmission S/N AJB0041225 thru AJB0044915 only

1шт.

18b

102935A1

HOSE,25.4mm ID x 772mm L

- 772 mm long, supply, priority valve

1шт.

Used on models with transmission S/N AJB0041225 thru AJB0044915 only

1шт.

19

1289369C2

HYD TUBE

TUBE - signal, pump with hitch

1шт.

20

1957867C1

FILTER SCREEN

SCREEN ASSEMBLY - compensator, pump, Includes: Ref. 21-22

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

23

1334644C2

HYD TUBE

TUBE - signal, pump without hitch

1шт.

24

1334401C1

SUPPORT

BRACKET - clamp

1шт.

25

535307R1

CLAMP

- tube

1шт.

26

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

1шт.

30

144169C2

GASKET,0.79mm Thk

- mounting, pump

1шт.

31

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

2шт.

32

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

33

201-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

ASSEMBLY - 90° adj, 1-5/8 x 1-11/16 inch thread, Includes: Ref. 34-35

1шт.

34

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

35

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end -025, 90 Duro, 1.176" ID x .070" Thk

1шт.

36

1974501C1

HOSE ASSY.,31.75mm ID x 749.3mm L, SAE 100R3

HOSE - filter, pump

1шт.

37

1334590C1

CLAMP

- hose if equipped

1шт.

38

1968188C1

ELBOW UNION

ELBOW ASSEMBLY - 90° adj, 1-1/16 x 1-3/16 inch thread, Includes: Ref. 39-40

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

40

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

43

1334488C1

HYD TUBE

TUBE - bulkhead, pump

1шт.

44

299615C1

CLAMP

- tube

1шт.

45

1968027C1

SUPPORT ASSY.

SUPPORT - clamp

1шт.

46

814-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

- hex, 10 x 16 mm

1шт.

47

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

1шт.

50

1289330C1

TUBE,239 mm Length

- inlet, dual pump

1шт.

51

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

52

1340608C1

CLAMP

- flange

2шт.

53

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

55

1954132C2

PUMP

ASSEMBLY - hydraulic gear See Figure 8-032, Includes: Ref. 56-59

1шт.

55

1341835C1

PUMP, HYDRAULIC,21.63 CC

PUMP ASSEMBLY hydraulic gear, See Figure 8-032, Includes: Ref. 56-59

1шт.

55

1341835C1R

REMAN-HYD PUMP

7110, 7120 - CASE IH MAGNUM TRACTOR (NORTH AMERICA), REMAN for Part No. 1341835C1 & 1954132C2, N.A. Only

1шт.

55

1341835C1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

56

1971426C1

VALVE

ASSEMBLY - relief, Includes: Ref. 57-59

1шт.

57

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

58

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 ID x 3/32 inch

1шт.

59

N7319

RING

WASHER - backup

1шт.

1986849C1

SEAL KIT

KIT - seal repair, services 1954132C2 and 1341835C1

1шт.

60

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

1шт.
