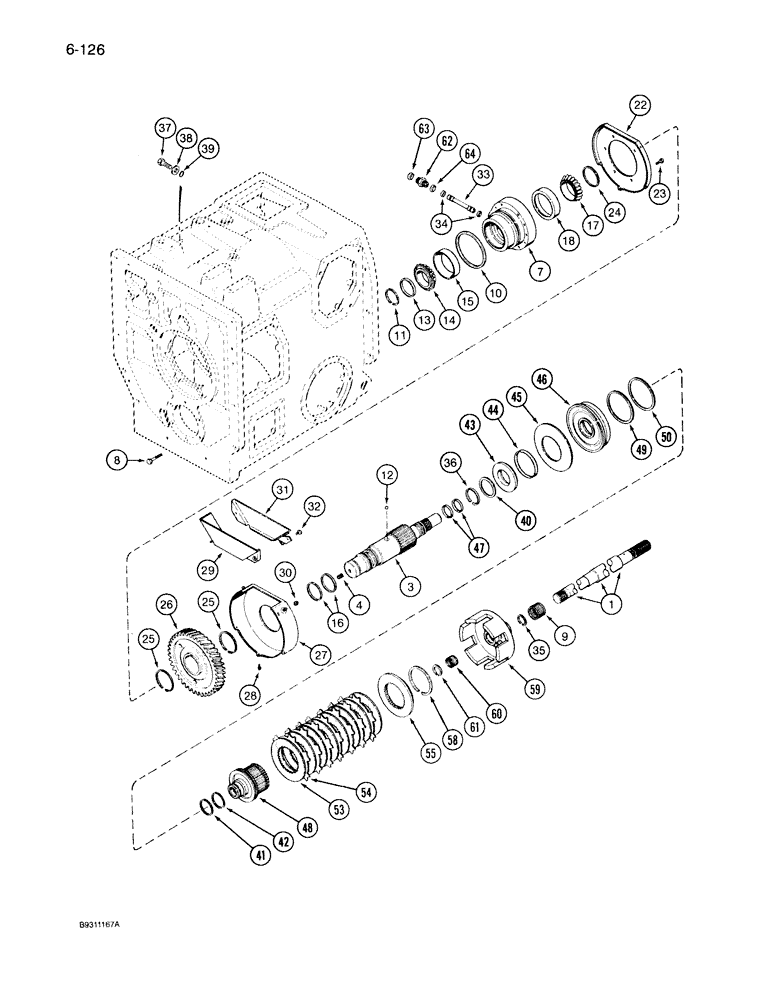

Запчасти Case IH 7150 (6-126) - MECHANICAL FRONT DRIVE (06) - POWER TRAIN

1

92804C1

SHAFT

- output

1шт.

3

1277291C1

SHAFT

- carrier, If equipped

1шт.

Used only with drive gear 1286005C1 with I.D. spline.

1шт.

3

1981337C1

SHAFT

- carrier, Shown

1шт.

Used only with drive gear 1981338C1 with ball key.

1шт.

4

877-11216

SET SCREW,Hex Skt, M12 x 16mm, Cup Pt

1шт.

7

1251750C1

CAGE

- bearing

6шт.

8

813-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

- hex, 10 mm - 1.50 x 50 mm

6шт.

9

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

BEARING - shaft

1шт.

10

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

11

130489C1

RING

- retaining, external

1шт.

12

211-214

BALL,1/2" Dia

- 1/2 inch, Grade 25

1шт.

Used only with drive gear 1981338C1 with ball key.

1шт.

93353C3

SHIM KIT

RING KIT - backup, bearing, Replaces: 93353C2, Includes: Ref. 13

1шт.

13

120815A1

SHIM

RING - backup, 2.98 mm, 1 in kit

1шт.

13

120814A1

SHIM

RING - backup, 3.02 mm, 1 in kit

1шт.

13

1277300C1

RING

- backup, 3.12 mm, 1 in kit

1шт.

13

148750C2

RING

- backup, 3.21 mm, 1 in kit

1шт.

13

148751C2

RING

- backup, 3.30 mm, 1 in kit

1шт.

13

148752C2

RING

- backup, 3.39 mm, 1 in kit

1шт.

13

148753C2

RING

- backup, 3.48 mm, 1 in kit

1шт.

13

148749C2

SHIM

RING - backup, 3.57 mm, 1 in kit

1шт.

14

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE ASSEMBLY - bearing

1шт.

15

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing

1шт.

16

1259535C1

RING,Locking, 57.6mm ID x 62.6mm OD x 3.8mm Thk

- shaft

2шт.

17

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

CONE ASSEMBLY - bearing

1шт.

18

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

CUP - bearing

1шт.

22

1250187C2

SHIELD

- rear, lower

1шт.

23

30796R1

BOLT

BOLT - hex, 8 x 16 mm, class 10.9

5шт.

24

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

RING - backup, bearing, If equipped

1шт.

Used only with drive gear 1286005C1 with I.D. spline.

1шт.

25

A31227

SNAP RING,#275, Ext

Ring, Snap, , if equipped #275, Ext

2шт.

Used only with drive gear 1286005C1 with I.D. spline.

1шт.

26

1981338C1

PINION

GEAR - drive

1шт.

26

1286005C1

PINION

GEAR - drive, Not shown

1шт.

27

1250188C2

SHIELD

- front, gear, If equipped

1шт.

28

31322R1

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 13

SCREW - hex washer head, self tapping, 4.8 x 13 mm

5шт.

29

1250182C2

SHIELD

- rear, upper, If equipped

1шт.

30

832-41308

NUT,M8 x 1.25, Cl 10

- hex lock, 8 mm, If equipped

2шт.

31

1250185C3

SHIELD

- front, upper, If equipped

1шт.

32

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

If equipped Hex, M6 x 12, 10.9, Full Thd

2шт.

33

93201C1

TUBE,11 mm DIA x 110 mm L

- inlet, oil

1шт.

34

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

35

1259828C1

RING

- retaining

1шт.

36

1277388C1

RING

- retaining, external

1шт.

37

613-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

38

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

2шт.

39

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

40

1277356C1

SHIM

- piston

1шт.

41

239-5033

O-RING,Rect, 2" ID x 2.125" OD, Cl 5

1шт.

42

1277288C1

RING

SEAL - clutch

1шт.

43

1277283C3

RETAINER

- spring, piston, Replaces: 1277283C1

1шт.

44

3216293R3

RING

- contact, spring

1шт.

45

3223717R1

SPRING WASHER

- piston

1шт.

46

1277284C1

PISTON

- clutch

1шт.

47

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

2шт.

48

1277292C1

HUB

- retainer

1шт.

49

239-5046

O-RING,Rect, 4.25" ID x 4.375" OD, Cl 5

SEAL - quad, 4-1/4 x 4-3/8 x 1/16 inch

1шт.

50

1277286C1

O-RING,113.95mm ID x 117.35mm OD x 2.34mm Thk

SEAL - clutch

1шт.

53

120697C2

PLATE

- clutch

8шт.

Ref. 53 120697C2 is a good number...has 45 teeth. If looking for a plate that has 36 teeth, the part number is 1286401C1. However, these do not sub to one another.

1шт.

54

120699C1

PLATE

- separation

7шт.

55

1277295C1

PLATE

- backing

1шт.

58

1277308C1

RING

- retaining, external

1шт.

59

1277296C1

CARRIER

- clutch

1шт.

60

1277297C1

NEEDLE BEARING

ASSEMBLY - needle

1шт.

61

1277307C1

RING

- retaining, external

1шт.

62

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 63-64 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

63

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

64

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.
