Запчасти Case IH 7150 (6-104) - TRANSMISSION, INPUT SHAFT MASTER CLUTCH, TRANSMISSION S/N AJB0051028 AND AFTER (06) - POWER TRAIN

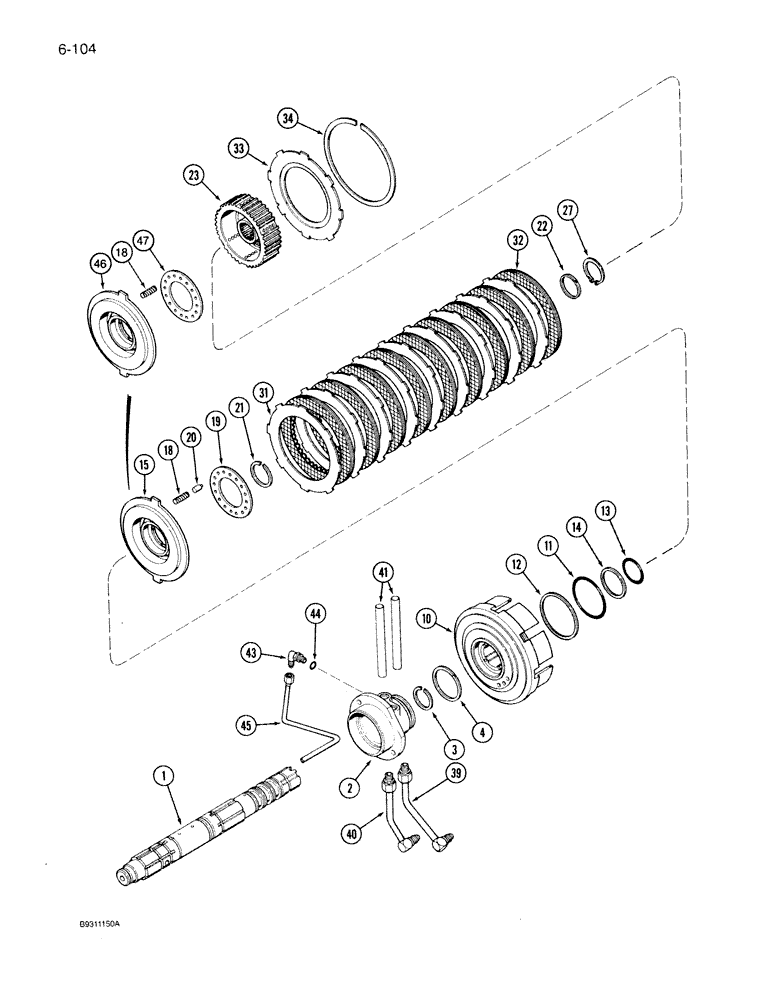

Схема запчастей Case IH 7150 - (6-104) - TRANSMISSION, INPUT SHAFT MASTER CLUTCH, TRANSMISSION S/N AJB0051028 AND AFTER (06) - POWER TRAIN
1
45
39
18
18
2
19
43
27
41
12
10
13
21
34
40
3
15
20
23
44
33
14
46
31
32
22
4
47
11

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SHAFT - input, See Figure: 6-098 or 6-100

1шт.

2

REF

INSTRUCTION

CAGE - bearing, See Figure: 6-098 or 6-100

1шт.

3

324051R1

CLIP

RING - retainer

1шт.

4

1286027C2

RING,91.31mm ID x 95.31mm OD x 2.87mm Thk

- cage

1шт.

10

1342240C1

CLUTCH HOUSING

CARRIER - clutch, master

1шт.

11

93138C1

RING,1.78mm Thk x 114.02mm ID, -47, 60 Duro

RING - piston, clutch

1шт.

12

92562C1

RING,120.46mm ID x 123.5mm OD x 2.28mm Thk

- seal, piston

1шт.

13

93137C1

RING,1.78mm Thk x 72.75mm ID, -40, 60 Duro

RING - piston, clutch

1шт.

14

92561C1

RING,78.46mm ID x 81.5mm OD x 2.28mm Thk

- piston, clutch

1шт.

15

1342242C1

PISTON ASSY.

PISTON - clutch, used with Refs. 19 and 20, no longer available, for service order Ref. 46, 112299A1 piston, and Ref. 47, 112329A1 retainer

1шт.

18

93136C2

SPRING,18.29mm OD x 35.82mm L

- clutch

16шт.

19

1286034C1

RETAINER

ASSEMBLY - spring, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - guide, spring

16шт.

21

27121R1

SNAP RING,#306, Ext

Ring, Snap, #306, Ext

1шт.

22

92555C1

RING,Locking, 63.81mm ID x 67.81mm OD x 2.87mm Thk

- seal

1шт.

23

1342241C1

HUB

- clutch

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - thrust, not shown, not required

2шт.

27

665071R1

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

31

1285974C1

BRAKE PLATE

PLATE - separator, clutch

9шт.

32

1285975C2

CLUTCH DISC

DISC - friction, clutch

9шт.

33

1963890C1

DISC

- backing, clutch

1шт.

34

1963876C1

SNAP RING,249mm OD, Internal

RING - snap, internal

1шт.

39

1286088C1

TUBE,15.87 mm OD, 157.2, 114.1 mm Length

- rear, medium clutch

1шт.

40

1286089C1

TUBE,15.87 mm OD, 174.2, 36.91 mm Length

- rear, high clutch

1шт.

41

1342730C1

TUBE,0.75" OD, 208 mm Length

- pressure, clutch

2шт.

43

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90°adjustable, 3/8 inch thread, Replaces: P/N 9410976

1шт.

45

1963935C2

TUBE

- lube, gear

1шт.

46

112299A1

PISTON ASSY.

PISTON - clutch

1шт.

47

112329A1

RETAINER

- spring, without guide pin

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 30
