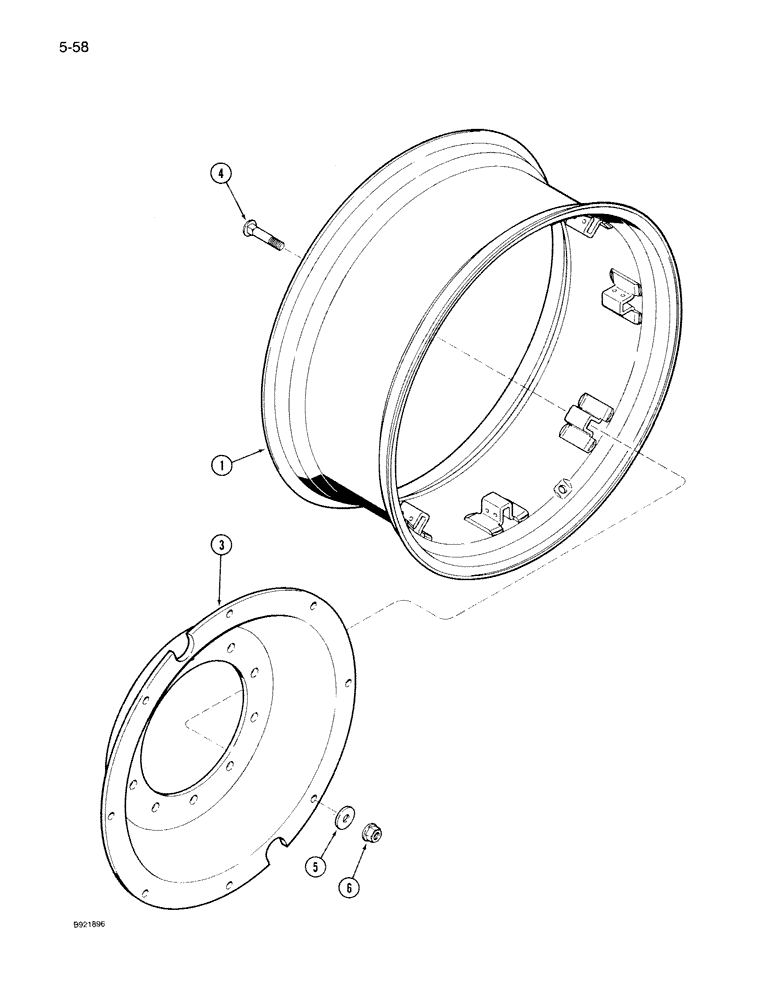

Запчасти Case IH 7150 (5-058) - FRONT WHEELS, MFD TRACTOR, WITH 3-3/4 INCH DISC OFFSET, IF EQUIPPED (05) - STEERING

A185505

WHEEL ASSEMBLY - front, for 13.6 and 14.9 x 28 tire, Machinery Item, Includes: Ref. 1 thru 6

2шт.

1

A185508

RIM

- wheel

1шт.

3

A185507

DISC

- wheel 3-3/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.

A185503

WHEEL (STEERING)

WHEEL ASSEMBLY - front, for 16.9 x 28 tire, Machinery Item, Includes: Ref. 1 thru 6

2шт.

1

A185509

RIM

- wheel

1шт.

3

A185507

DISC

- wheel 3-3/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.

A185504

WHEEL ASSEMBLY - front, for 16.9 and 18.4 x 26 tire, Machinery Item, Includes: Ref. 1 thru 6

2шт.

1

A185510

RIM

- wheel

1шт.

3

A185506

DISC

- wheel 3-3/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.
