Запчасти Case IH 7150 (5-046) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING

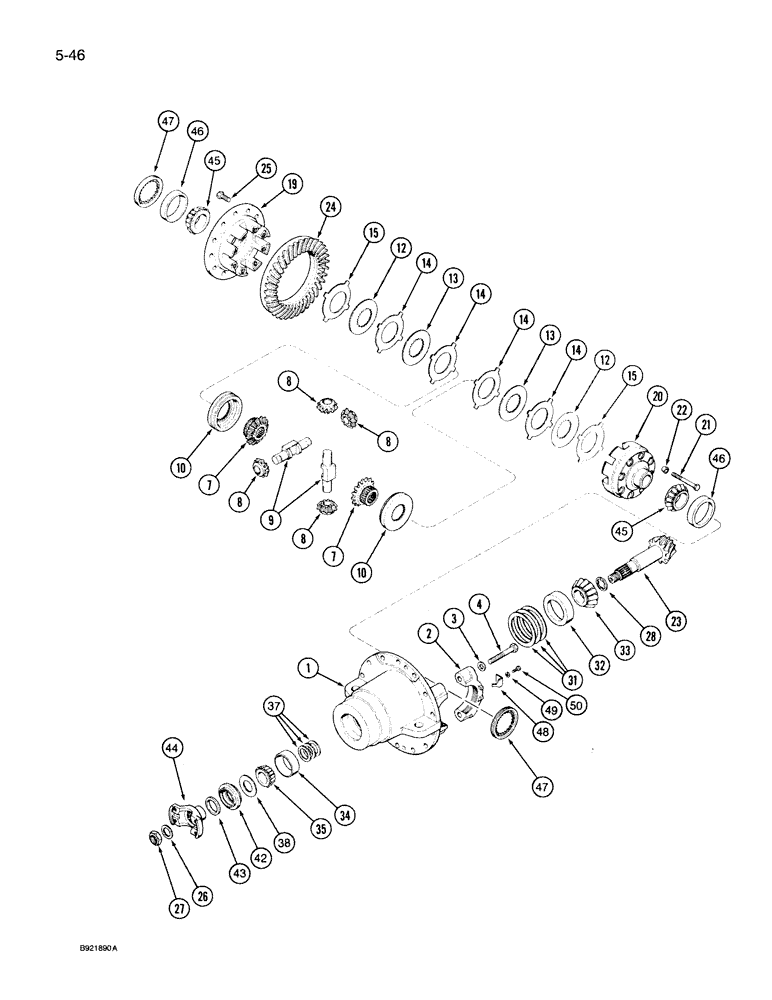

Схема запчастей Case IH 7150 - (5-046) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING
44
10
23
13
1
46
7
37
8
49
47
50
14
2
45
42
21
14
4
10
25
31
48
20
3
45
8
14
12
22
14
34
24
28
35
32
46
43
27
9
8
47
12
33
15
15
13
7
8
19
26
38

Артикул

Название

Примечание

Количество

1349307C1

AXLE, FRONT

AXLE ASSEMBLY - front, MFD tractor, Replaces: A183552, Includes: front axle carrier and differential assembly, differential carrier assembly and Ref. 1-50 in this figure and parts in Figures 5-042, 5-044 and 5-050 thru 5-054

1шт.

1961734C1

DIFFERENTIAL

CARRIER AND DIFFERENTIAL ASSEMBLY- front axle, Includes: Ref. 1-50

1шт.

1961741C1

HOUSING

CARRIER ASSEMBLY - differential, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

434320R1

BOLT,Hex, 5/8" - 18 x 3 3/4", Gr 8

- hex, 5/8 NF x 3-3/4 inch, grade 8

4шт.

1277225C2

DIFFERENTIAL

ASSEMBLY - front axle, Includes: differential gear kit and Ref. 7 thru 22

1шт.

1277402C1

KIT

GEAR KIT - differential, Includes: Ref. 7 thru 15

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

4шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - differential

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

2шт.

1968294C1

KIT

DISC AND PLATE KIT - differential, Includes: Ref. 12-15

1шт.

12

NSS

NOT SOLD SEPARAT

DISC - dished

2шт.

13

NSS

NOT SOLD SEPARAT

DISC - flat

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - flat

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE - dished

2шт.

NSS

NOT SOLD SEPARAT

GASKET - oil seal not used this application

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear half, differential

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - half, differential

1шт.

21

1997853C1

BOLT

- hex, differential housing

8шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - bolt

8шт.

1968293C1

BEVEL GEAR

GEAR SET - differential pinion, Includes: Ref. 23-27

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - ring, front differential

1шт.

25

1287668C1

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 8

BOLT - drive gear

12шт.

26

912716R1

WASHER

- pinion nut

1шт.

27

912726R1

NUT

- pinion shaft

1шт.

28

1969538C1

SPACER

- pinion shaft

1шт.

1277229C1

PACKAGE

SHIM KIT - pinion adjusting, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.003 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.005 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.010 inch

5шт.

32

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP - bearing, inner

1шт.

33

1968296C1

TAPERED BEARING

BEARING - inner

1шт.

34

1968289C1

BEARING ASSY

CUP - bearing, outer

1шт.

35

1968288C1

BEARING ASSY

BEARING - outer

1шт.

37

1961745C1

KIT

SHIM KIT - pinion adjust, includes pinion adjust shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.003 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.010 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.030 inch

5шт.

38

912712R1

WASHER

- pinion oil seal

1шт.

42

H758326

OIL SEAL

SEAL - oil, pinion shaft

1шт.

43

345427C1

SLINGER

SHIELD - dust

1шт.

44

1961747C1

YOKE

- pinion shaft

1шт.

45

1968291C1

ROLLER BEARING

BEARING - differential mounting

2шт.

46

1968292C1

BEARING

CUP - bearing, differential mounting

2шт.

47

1277233C1

RING NUT,14T

- differential bearing adjust

2шт.

48

1277234C1

CLIP

CLIP - bearing adjust ring

2шт.

49

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 5/64 inch

2шт.

50

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

Выбрано товаров: 53
