Запчасти Case IH 7150 (5-044) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING

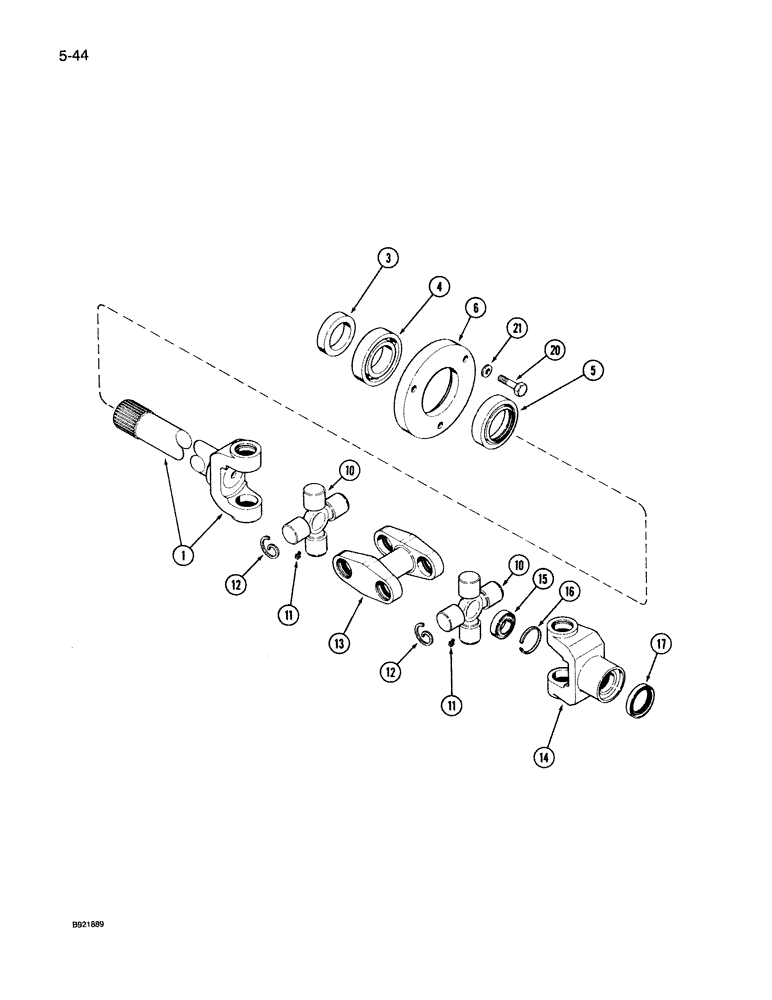

Схема запчастей Case IH 7150 - (5-044) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING
3
10
5
21
16
15
11
10
20
12
1
11
14
12
6
4
17
13

Артикул

Название

Примечание

Количество

1349307C1

AXLE, FRONT

AXLE ASSEMBLY - front, MFD tractor Replaces: P/N A183552, Includes: Ref. 1-21 in this figure and parts in Figures 5-042, 5-046 thru 5-054

1шт.

1

1961775C1

SHAFT

ASSEMBLY - axle, left Includes: bearing and seal kit and Ref. 3-6

1шт.

1

1968286C1

SHAFT ASSY.

SHAFT ASSEMBLY - axle, right Shown, Includes: bearing and seal kit and Ref. 3-5

1шт.

1277253C1

PACKAGE

BEARING AND SEAL KIT - axle, Includes: Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

5

A76014

OIL SEAL

- oil

1шт.

6

1997795C1

SHIN

RETAINER - axle

1шт.

10

1961778C1

BEARING ASSY

KIT - bearing, axle shaft, Includes: Ref. 11-12

4шт.

11

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

13

1961777C1

YOKE

ASSEMBLY - front axle, center

2шт.

14

1961798C1

YOKE

ASSEMBLY - front axle, outer, Includes: Ref. 15-17

2шт.

15

1961753C1

SEAL

- yoke, inner

1шт.

16

1277405C1

RING

- retaining

1шт.

17

1287608C1

SEAL

- yoke, outer

1шт.

Ref. 17, 1287608C1, See NTR SB 014195

1шт.

20

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

6шт.

21

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 1/16 inch

6шт.

Выбрано товаров: 19
