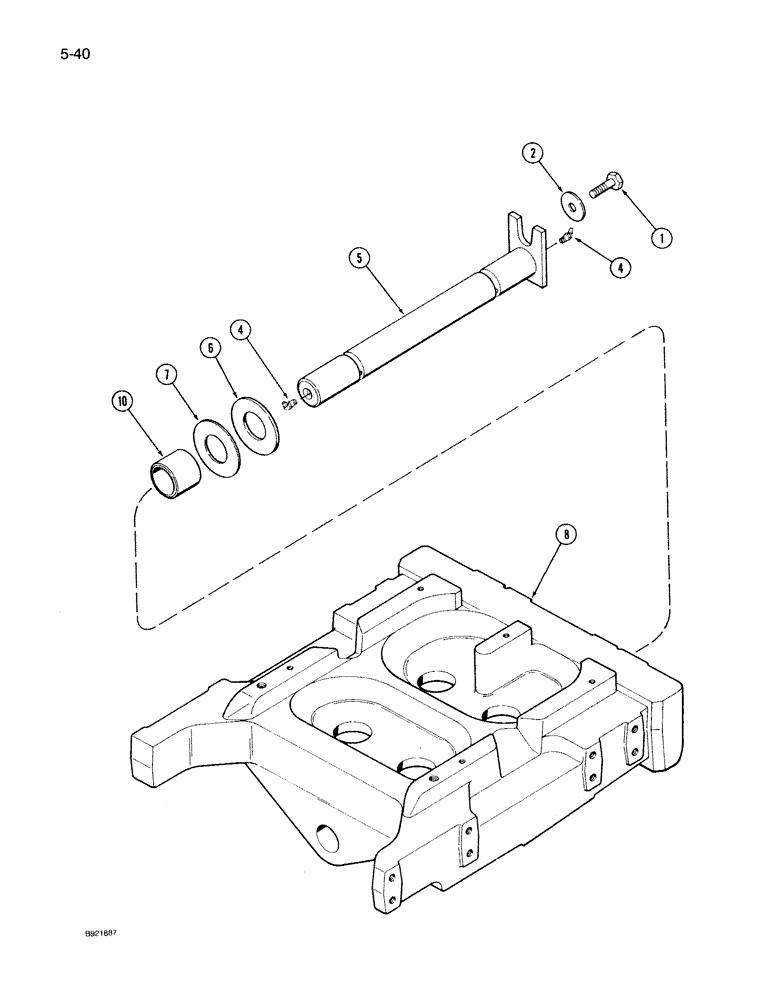

Запчасти Case IH 7150 (5-040) - FRONT AXLE SUPPORT, MFD TRACTOR (05) - STEERING

1

30225R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

- hex, 12 mm - 1.75 x 30 mm

1шт.

2

101936C2

WASHER

- pivot, support pin

1шт.

4

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If equipped 90º, 1/8" NPT x .84" lg

2шт.

5

1348230C1

PIVOT PIN,49.95mm OD x 530mm L

PIN - pivot, front axle

1шт.

6

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, front axle pivot

2шт.

7

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

pivot, front axle

1шт.

8

A185918

SUPPORT ASSY.

SUPPORT - axle, front

1шт.

10

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot, front

2шт.
