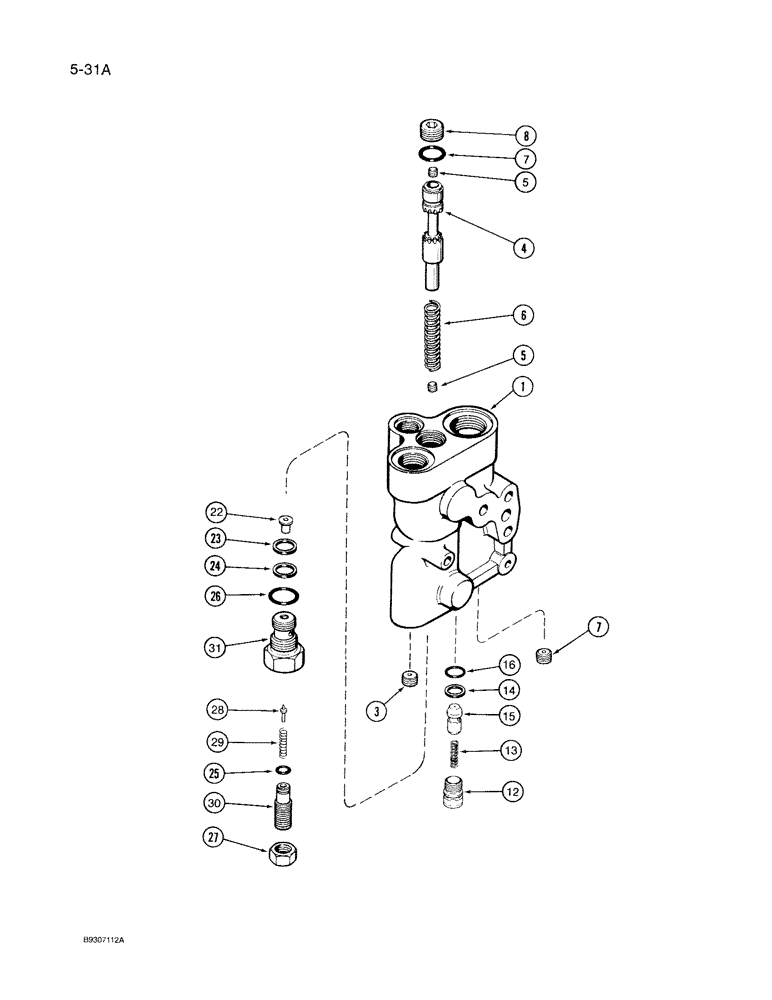

Запчасти Case IH 7150 (5-031A) - STEERING PRIORITY VALVE ASSEMBLY, 1994591C3 (05) - STEERING

1994591C3

VALVE

ASSEMBLY - priority, steering, Includes: Refs. 1-31

1шт.

1

1978362C1

BODY

- valve

1шт.

3

1994566C1

PLUG

- orifice

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

5

G108700

PLUG

- orifice, spool

2шт.

6

G110111

VALVE SPRING

SPRING - priority

1шт.

7

118923A1

PLUG

- orifice

1шт.

8

86625138

PLUG,7/18" - 14

Assy, Spool, 5/8 inch PT, Includes Ref. 9 Hex Soc, 7/8"-14 ORB

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 7/64 inch

1шт.

1542563C1

KIT

VALVE ASSEMBLY - check, Includes: Refs. 12-16

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

1994581C1

SPRING,6.1mm OD x 31.1mm L

- load

1шт.

14

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

15

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

POPPET - check valve

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

G108868

VALVE PRESSURE RELIE

RELIEF ASSEMBLY - pilot, Includes: Refs. 22-31

1шт.

22

G108869

SEAT

- pilot relief

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face seal -018, 90 Duro, .739" ID x .070" Thk

1шт.

24

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

28

G108556

VALVE POPPET

POPPET - relief

1шт.

29

G109275

SPRING

- poppet

1шт.

30

G108867

PLUG

SCREW - adjusting, special

1шт.

31

G108866

HOUSING,1-1/16" - 12

BODY - pilot relief

1шт.
