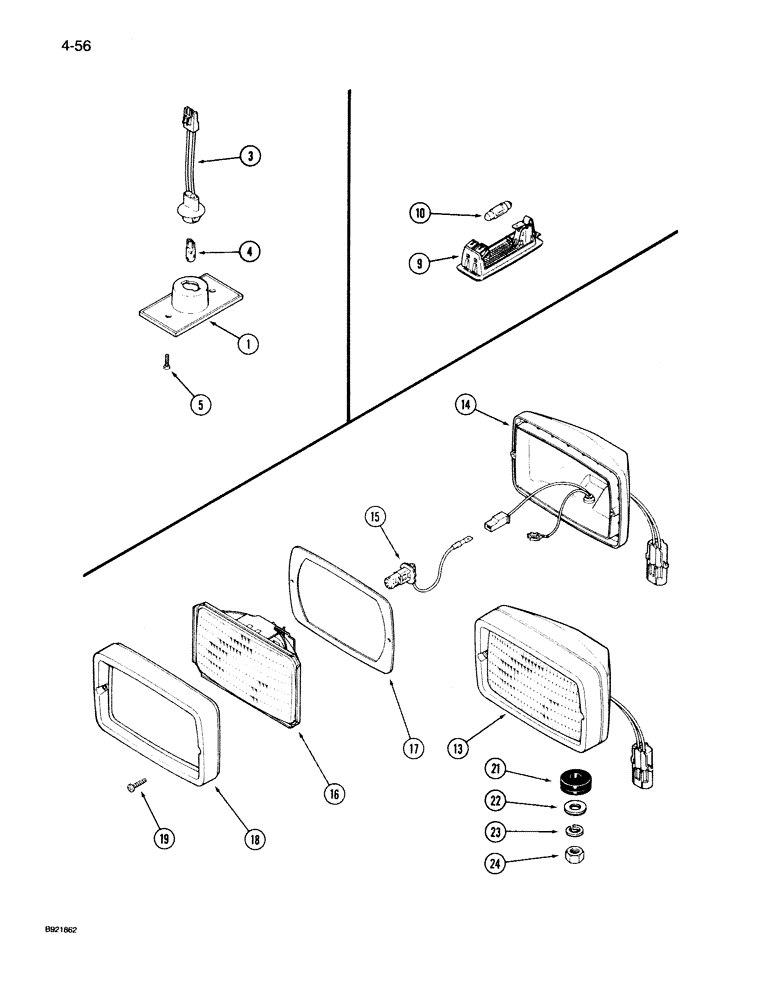

Запчасти Case IH 7150 (4-056) - LAMP ASSEMBLIES, CONSOLE, DOME, AND CAB AND ROPS FLOOD LAMP (04) - ELECTRICAL SYSTEMS

83882C91

LAMP

ASSEMBLY, console, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

LENS lamp, console

1шт.

3

107329C1

WIRE HARNESS

SOCKET bulb

1шт.

4

D71346

TAIL LAMP,12V

BULB light, No. 168

1шт.

5

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Console lamp assembly Cross Pan Hd, M4.8 x 19, Coated

2шт.

9

1983391C1

LAMP,12V, 10W

ASSEMBLY dome, Includes: Ref. 10

1шт.

10

3050958R1

BULB,K, 12V, 10W

- light K, 12V, 10W

1шт.

13

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

LAMP ASSEMBLY flood, cab and rops, Includes: Ref. 14-19

2шт.

14

NSS

NOT SOLD SEPARAT

BASE lamp

1шт.

15

1312210C1

BULB

lamp

1шт.

16

1964807C1

LAMP BASE

LENS ASSEMBLY reflector, lamp, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET lens

1шт.

18

1964806C1

BEZEL

HOUSING front, lamp

1шт.

19

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

pan head, 1/4-20 x 3/8 inch, retainer, housing

2шт.

21

96901C1

GROMMET

wiring, lamp, cab and rops flood, assembly

2шт.

22

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch, Cab and rops flood lamp assembly

2шт.

23

892-11010

LOCK WASHER,M10

Cab and ROPS flood lamp assembly M10

2шт.

24

825-1410

NUT,M10, Cl 8

Cab and rops flood lamp assembly M10, Cl 8

2шт.
